DeepCool CG580 4F Panoramic ATX Mid-Tower Case 4x Pre Installed Fans Single Chamber, Support Back Connectors & Up to 2x 360mm Radiators, Front 2x USB3.0 , Black

Product Dimensions: 437×235×501mm(L×W×H)
Motherboard Support: ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports : USB3.0×2、Gen2 Type-C×1、Audio&Mic×1
Pre-Installed Fans: Side:3×120mm(PWM+ARGB Reverse Blade)
Rear: 1×120mm(PWM+ARGB)
CPU Cooler Height Limit: 176mm
GPU Length Limit : 410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)

Not yet rated Write a review

Availability:: In Stock
Product Code:: CG580 4F Black
Brand:: DEEPCOOL

JOD 79.00

Chat with us on Whatsapp

Free delivery on orders Over 100 JOD
Cash on Delivery

Qty

Add to Wish List

Compare this Product

SCENIC VIEW

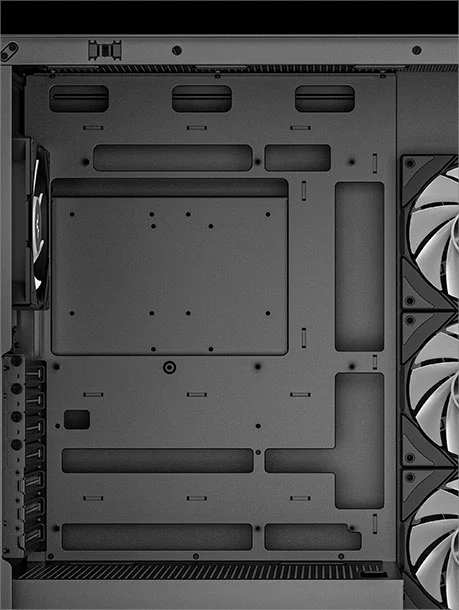

The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.

INNOVATIVE COOLING PLUS VISUAL EXPERIENCE

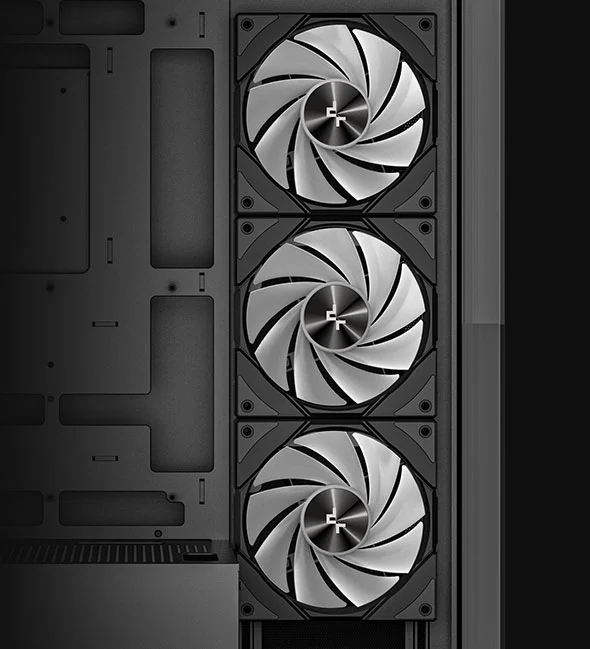

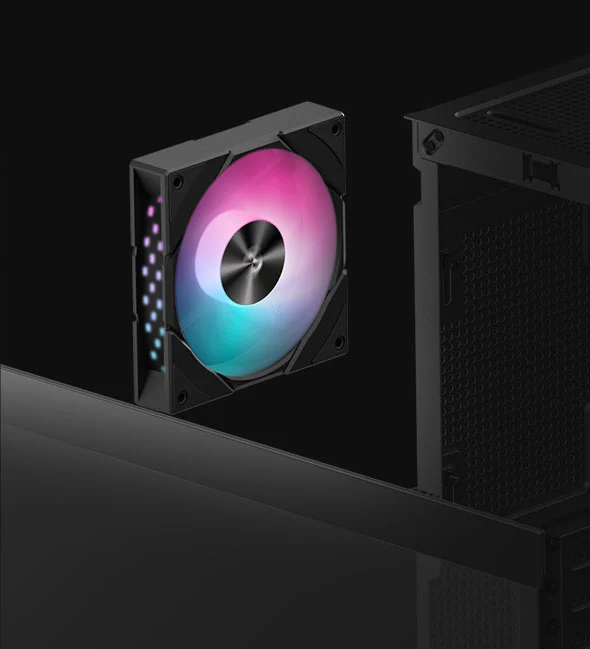

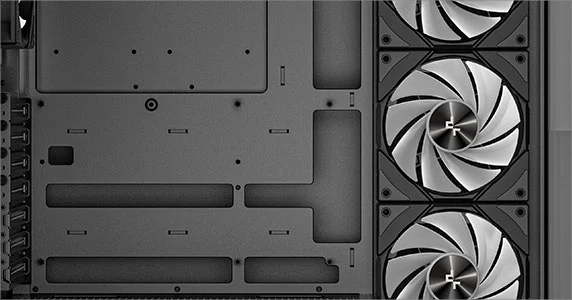

The CG580 4F is designed to stand out with its pre-installed cooling system, featuring three PWM ARGB reverse flow fans on the side and one PWM ARGB fan at the rear. This setup creates an efficient heat dissipation structure that enhances overall performance. The case also incorporates a dot matrix fan design with side frame lighting that supports motherboard synchronization, offering a unique technical atmosphere. By adjusting the fan settings, users can create captivating lighting modes such as a starry sky or meteor effect, transforming the interior of the case into a visual spectacle.

LED Button Operation Instructions

Switching Lighting Effect

Short press the LED button to cycle through 24 pre-set lighting effects, including "Celestial Sky", "Rainbow Meteor", and more.

When Connected to Motherboard Sync Cable:

Long press the LED button (about 2-3 seconds) until a red flash: Enter motherboard synchronization mode. The lighting effects will now be controlled by the motherboard.

Long press the LED button (about 5-6 seconds) until two green flashes: Enter power-off mode.

Long press the LED button (about 9-10 seconds) until three blue light flashes: Reset to the default lighting effect "Celestial Sky - White" mode.

Note: If the motherboard sync cable is not connected, long pressing the LED button will directly enter the power-off mode (two green flashes), and motherboard sync mode cannot be activated.

During Motherboard Sync Mode

Long press the LED button for 2 seconds: Exit the motherboard sync mode and return to lighting control by the case lighting control board.

Disconnect the motherboard sync cable: After about 1 second, motherboard sync mode will be automatically exited and original lighting settings will be restored.

THE SUPPORT YOU NEED

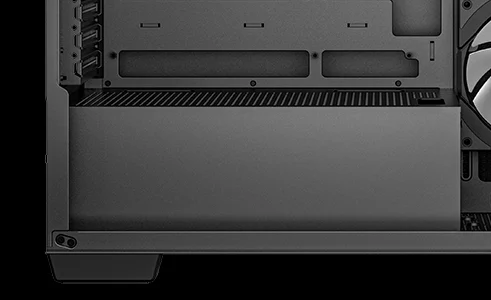

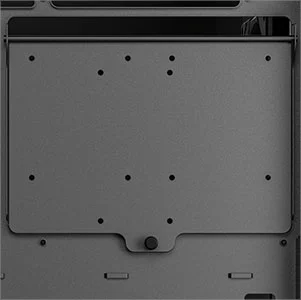

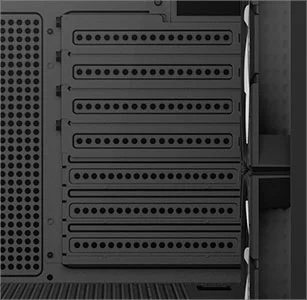

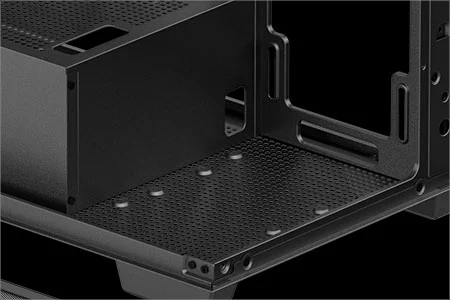

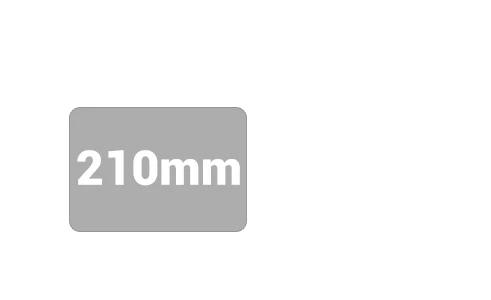

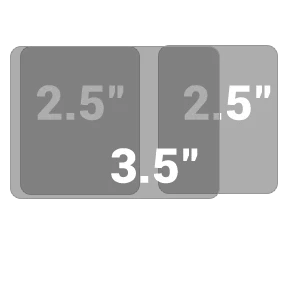

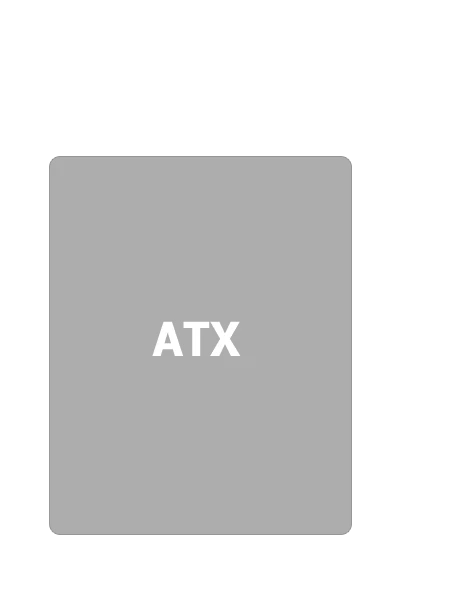

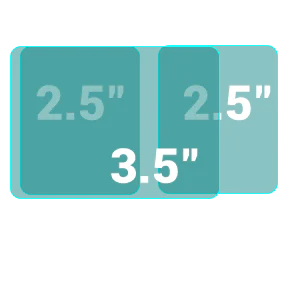

The CG580 4F is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATX motherboards and features 7 expansion slots, along with 2 x 3.5"" drive bays and 2 x 2.5"" drive bays, providing ample space for storage and expansion.

EXCEPTIONAL COOLING CAPACITY

The CG580 4F is designed for maximum cooling efficiency, supporting a variety of radiator configurations, including up to 360mm on the top, 360mm on the side, and 140mm at the rear. It accommodates multiple fan setups, with options for 3×120mm or 2×140mm on the top, 3×120mm on the side, and 1×120mm or 1×140mm at the rear. The bottom offers a choice between a 3.5"" HDD or a 120mm fan, while the PSU shroud can house 2×120mm fans. Additionally, the case supports CPU coolers up to 176mm, ensuring your system stays cool under the most demanding conditions.
