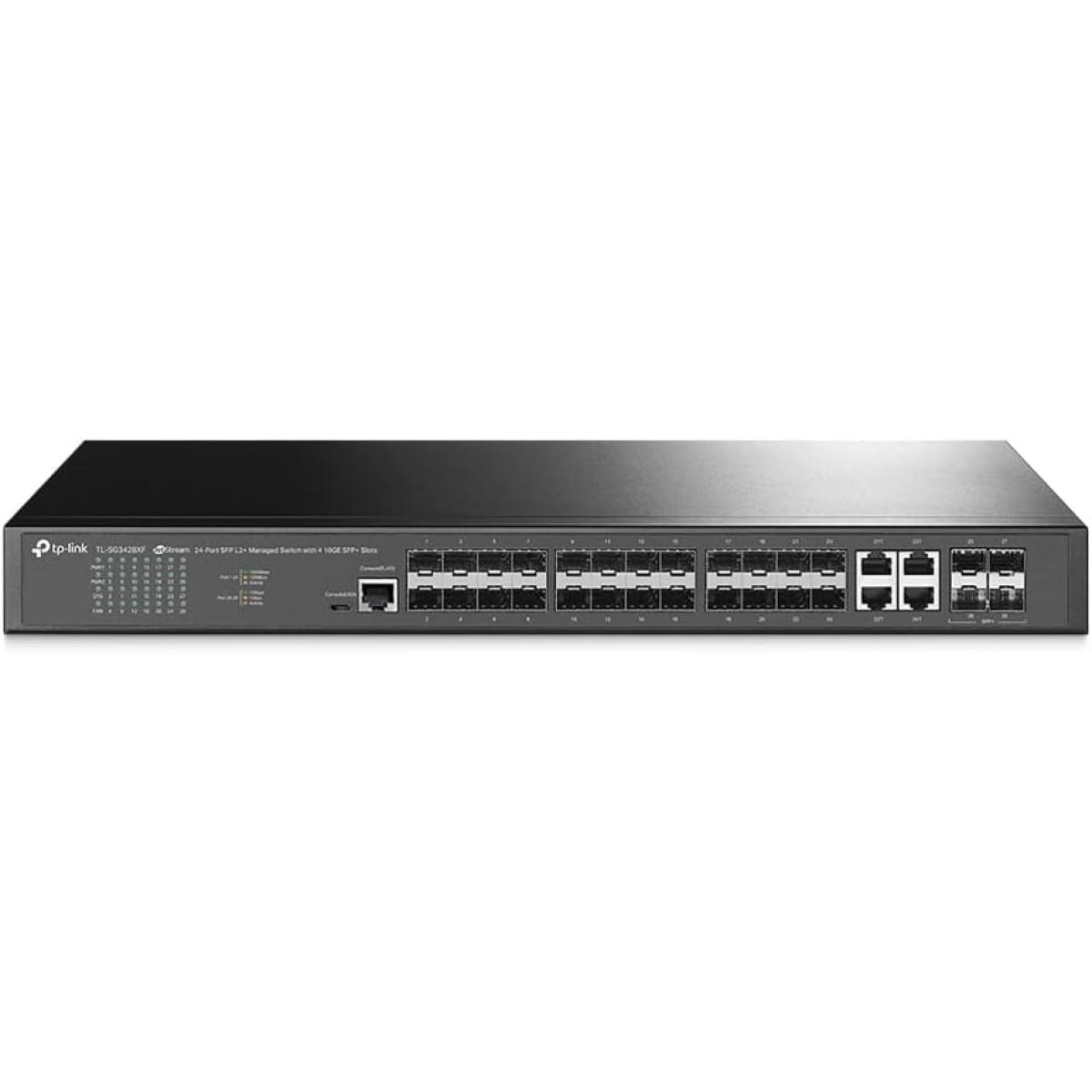

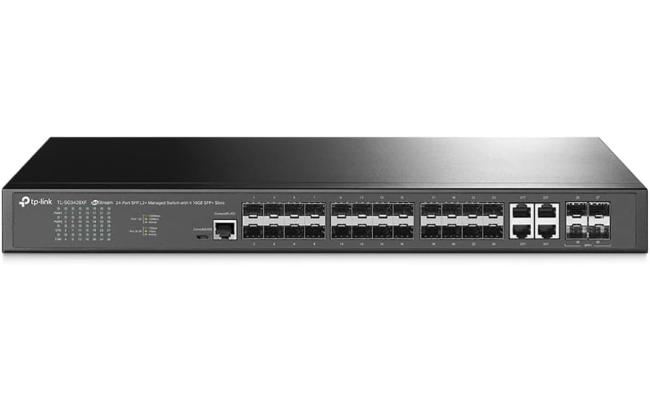

TP-Link Omada SG3428XF 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots, 20x Gigabit SFP Ports, 4x Gigabit SFP/RJ45 Combo Ports, 4x 10G SFP+ Slots, 1x RJ45 Console Port, Black

  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Gigabit Fiber Speeds: 20× gigabit SFP ports and 4× gigabit SFP/RJ45 Combo ports s offer high-speed and reliable connections to other switches and devices.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Not yet rated Write a review

Share Product

HTML Block

Zain Cash
Mobile Cash
Visa
Mastercard
Cash on Delivery
Availability:
In Stock
Product Code:
SG3428XF
Brand:
TP-Link
JOD 379.00

Chat with us on Whatsapp

Chat with us on Whatsapp

  • Free delivery on orders Over 100 JOD

  • Cash on Delivery


Name
Company Name
Email
Phone
Add to Wish List
Compare this Product





Specifications



HARDWARE FEATURES
Interface20× Gigabit SFP Ports, 4× Gigabit SFP/RJ45 Combo Ports, 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port
Fan Quantity1 Fan
Power SupplyDual Redundant Power Supplies, 100-240 V AC~50/60 Hz
Dimensions (W x D x H)17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
MountingRack Mountable
Max Power Consumption35.7 W (110 V/60 Hz)
Max Heat Dissipation121.81 BTU/hr (110 V/60 Hz)
PERFORMANCE
Switching Capacity128 Gbps
Packet Forwarding Rate95.23 Mpps
MAC Address Table16 K
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
SOFTWARE FEATURES
Quality of Service8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow based Rating Limiting), Smoother Performance, Action for Flows (Mirror, Redirect, Rate Limit, QoS Remark)
L3 Features16 IPv4/IPv6 Interfaces, Static Routing (48 static routes), Static ARP (128 Static Entries), Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay (Interface Relay, VLAN Relay), DHCP L2 Relay
L2 and L2+ FeaturesLink Aggregation (static link aggregation, 802.3ad LACP, up to 8 aggregation groups, 8 ports per group), Spanning Tree Protocol (802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, Root Protect), Loopback Detection (Port based, VLAN based), Flow Control (802.3x Flow Control, HOL Blocking Prevention), Mirroring (Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both)
L2 MulticastIGMP Snooping (IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication), MLD Snooping (MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast), MVR, Multicast Filtering (256 profiles, 16 entries per profile)
Advanced FeaturesAutomatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
VLANVLAN Group (Max 4K VLAN Groups), 802.1Q Tagged VLAN, MAC VLAN (30 Entries), Protocol VLAN (Protocol Template 16, Protocol VLAN 16), Private VLAN, GVRP, VLAN VPN (QinQ), Port-Based QinQ, Selective QinQ, Voice VLAN
Access Control ListTime-based ACL, MAC ACL (Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type), IP ACL (Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority), Combined ACL, Packet Content ACL, IPv6 ACL, Policy (Mirroring, Redirect, Rate Limit, QoS Remark), ACL apply to Port/VLAN
SecurityIP-MAC-Port Binding (512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries), IPv6-MAC-Port Binding (512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard: 100 Entries), DoS Defend, Static/Dynamic Port Security (up to 64 MAC addresses per port), Broadcast/Multicast/Unicast Storm Control (kbps/ratio control mode), 802.1X (Port base authentication, Mac base authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication and accountability), AAA (including TACACS+), Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control
IPv6IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications (DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP)
MIBsMIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB
MANAGEMENT
Omada AppYes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Centralized ManagementOmada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
Cloud AccessYes. Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch ProvisioningYes. Requires Omada Cloud-Based Controller
Management FeaturesWeb-based GUI, Command Line Interface (CLI) through console port, telnet, SNMP v1/v2c/v3 (Trap/Inform, RMON (1,2,3,9 groups)), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
OTHERS
CertificationCE, FCC, RoHS
Package ContentsTL-SG3428XF Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux
EnvironmentOperating Temperature: 0–45 ℃ (32–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

4-8 Days Delivery Globally
We offer express delivery worldwide for TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots, 20x Gigabit SFP Ports, 4x Gigabit SFP/RJ45 Combo Ports, 4x 10G SFP+ Slots, 1x RJ45 Console Port, Black | SG3428XF.

Best Price Guarantee
We offer the best price for TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots, 20x Gigabit SFP Ports, 4x Gigabit SFP/RJ45 Combo Ports, 4x 10G SFP+ Slots, 1x RJ45 Console Port, Black | SG3428XF . Buy now with the best price!
