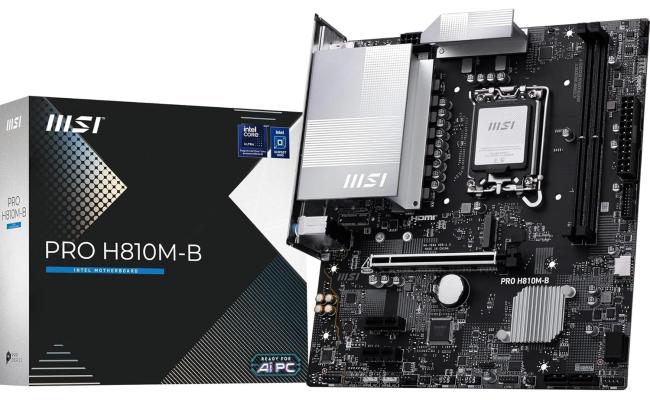

MSI PRO H810M-B mATX - Supports Intel Core Ultra Processors (Series 2), LGA 1851 - DDR5 Memory Boost (6400 MT/s MAX), PCIe 5.0 x16, M.2 Gen4, 2.5G LAN

ULTRA POWER - SUPPORTS THE LATEST INTEL CORE ULTRA PROCESSORS (Series 2) IN HIGH PERFORMANCE - The PRO H810M-B employs a Direct 6 Phase (P-PAK) VRM for the Intel H810 chipset with Core Boost architecture
FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads, an Extended Heatsink, and chipset heatsink
DDR5 MEMORY, PCIe 5.0 x16 SLOT - 2 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 6400 MT/s MAX); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards
GEN4 M.2 CONNECTOR - Storage options include 1 x M.2 Gen4 x4 64Gbps slot
HIGH-SPEED CONNECTIVITY - Network hardware includes a 2.5Gbps LAN; Rear ports include USB 5Gbps Type-A with display output and 7.1 HD Audio with Audio Boost

Not yet rated Write a review

HTML Block

Availability:: In Stock
Product Code:: PRO H810M-B
Brand:: MSI

JOD 95.00

Chat with us on Whatsapp

Free delivery on orders Over 100 JOD
Cash on Delivery

Qty

Add to Wish List

Compare this Product

From the manufacturer

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today's performance limits.

PRO H810M-B

Business Elegance

The PRO H810M-B is a business-oriented mATX motherboard constructed around the latest Intel H810 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 2.5G LAN, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

Supports Intel Core Ultra Processors (Series 2) (LGA 1851)
Ultra Power: Direct 6 Phases with P-PAK, 6-layer PCB
2 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 6400 MT/s MAX)
1 x PCIe 5.0 x16, 2 x PCIe 4.0 x1
Lightning Gen4 M.2 slot
High-speed Connectivity: Realtek 2.5G LAN
8-Channel (7.1) HD Audio with Audio Boost
EZ DIY: EZ PCIe Clip II and EZ M.2 Clip II

Supports Intel Core Ultra Processors (Series 2)

The PRO H810M-B motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: mATX

Socket Type: LGA 1851

Chipset: Intel H810

Ultra Power - Direct 6 Phases with P-PAK

With exclusive Core Boost technology and EZ OC Tuning functions, the PRO H810M-B is able to sustain heavy CPU power loads to support system-demanding settings: Digital PWM IC

6-Phase direct CPU power (P-PAK)

1-Phase SA Power

1-Phase GT Power

1-Phase VNNAON Power

Frozr Design

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, and extra choke thermal pads for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A) and system fans (1A).

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

2 x DDR5 Dual Channel (6400 MT/s MAX)*

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal overclocking performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6400 MT/s, supports Intel XMP.

Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)*

2 x PCIe 4.0/3.0 x1 slots

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 M.2 Connector

The PRO H810M-B motherboard features MSI's M.2 slot:

1 x Gen4 x4 64Gbps slot

EZ DIY

The DIY Friendly designs optimize the assemble process and experience.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

High-speed Connectivity

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.

USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost

Motherboard Specifications
CPU Support	Intel® Core™ Ultra Series 2 CPU
CPU Socket Type	LGA 1851
Chipset	INTEL H810
Form Factor	ATX
Memory Type	DDR5
Memory Speed	6400 MHz
Maximum Memory	128 GB
Memory Slots	2 Slots
M.2 Slots	Yes
Wireless LAN	No
Warranty
Warranty	1 Year
