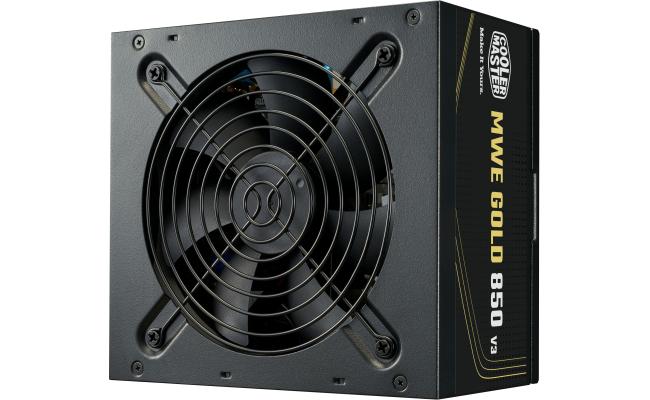

Cooler Master MWE V3 Series 850W Gold Non-Modular Power Supply - Active PFC - ATX Version: ATX 12V Ver. 3.1 - Input Frequency: 50-60Hz - Fan Size: 120mm - Fan bearing: HDB - Fan Speed: 2400RPM - 80 PLUS Gold - MTBF: >100,000 hours
· Quiet HDB fan
· 80 Plus Gold efficiency certification
· High temperature resilience
· Embossed cable
· ATX 3.1 support
Share Product
- Availability:
- In Stock
- Product Code:
- MPE-8506-ACAG-BEU
- Brand:
- Cooler Master
JOD 89.00
Chat with us on Whatsapp
-
Free delivery on orders Over 100 JOD
-
Cash on Delivery
MWE Gold 850 V3, ATX 3.1
Quiet HDB fan
80 Plus Gold efficiency certification
High temperature resilience
Embossed cable
ATX 3.1 support
5-year warranty
Evolutionary Power Supply
Introducing the MWE Gold V3, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our G Gold PSU. With features such as 80 Plus Gold efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions.
ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
5-year warranty
This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
Specifications
Product Number
MPE-8506-ACAG-BAU
ATX Version
ATX 12V Ver. 3.1
PFC
Active PFC
Input Voltage
100 - 240V
Input Current
10 - 6 A
Input Frequency
50 - 60Hz
Dimensions (L x W x H)
140 x 150 x 86 mm
Fan Size
120 mm
Fan Bearing
HDB
Fan Speed
2400 RPM
Efficiency
≥ 90% @ Typical Load
80 PLUS Rating
80 PLUS Gold
ErP 2014 Lot 3
Yes
Operating Temperature
0 - 40°C
Power Good Signal
100 - 150 ms
Hold Up Time
≥16ms at 80% Load
MTBF
>100,000 hours
Protections
UVP / OVP / OPP / OTP / SCP / OCP
Regulatory
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region’s request.)
ATX 24 Pin Connectors
x1 = 1x (550mm)
EPS 8 Pin / 4+4 Pin Connectors
x2 = 1x (550+120mm)
PCl-e 6+2 Pin
x4 = 2x (550+120mm)
SATA Connectors
x6 = 2x (400+150+150mm)
Peripheral 4 Pin Connectors
x3 = 1x (400+150+150mm)
12V-2x6 (12+4 Pin) Connectors
x1 = 1x (600mm)
Watts
850W
Series
MWE Gold V3
| PSU Specification | |
|---|---|
| Maximum Power | 800W - 999W |
| Energy - Efficient | 80+ GOLD Certified |
| Modular | Standard Cables |
