ROG Strix TRX-40-E Gaming Motherboard for the 3rd Gen Threadripper CPU
RAISING THE PERFORMANCE BAR FOR CREATORS, DEVELOPERS AND PC ENTHUSIASTSROG Strix TRX40-E Gaming combines stunning gaming aesthetics with high-end desktop performance for do-it-all builds for users that like to work hard and play hard. A huge range of design touches show off its cyberpunk origins, including a translucent I/O shroud glows under Aura lighting and a striking rainfall pattern on the VRM & chipset heatsinks. When it comes to performance, ROG Strix TRX40-E Gaming delivers with a wealth of ultrafast connectivity options, including three PCIe 4.0 M.2 slots, the latest 2.5G Ethernet and Wi-Fi 6 networking, and eight USB 3.2 Gen 2 ports.
ROG Strix TRX40-E Gaming motherboard supports the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors that boast up to 32 cores. It features quad-channel DDR4 memory, 64 lanes of PCI Express® 4.0, 16 GT/s transfer speed for Gen 4 M.2 SSDs, and built-in native USB 3.2 Gen 2 (10 Gbps) for superior performance.
AMD 3rd Gen Ryzen ThreadripperCompatible CPUs
Innovative Features Allow you to Excel
TRX40-E GAMING HAS THE MUSCLE TO CONTROL THE LATEST THREADRIPPER CPUSProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armor for improved heat dissipation. The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU. ROG Strix TRX40-E Gaming has a CPU VRM with 16 power stages, delivering the power and efficiency that the latest AMD processors demand. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide better performance than the industry standard.
ACTIVE VRM HEATSINKAn active VRM heatsink provides a large contact area for the MOSFETs and chokes, enabling more efficient cooling of the MOS heatsink for better performance and wattage resistance.
DUAL M.2 HEATSINKThe M.2 heatsink keeps the Dual M.2 SSD at the optimum operating temperature for consistent performance and reliability.
ACTIVE CHIPSET HEATSINKPCIe 4.0 provides twice the bandwidth which creates more heat than the previous generation. ROG Strix TRX40-E Gaming features an actively cooled heatsink to prevent throttling.
BACKPLATEA backplate on the rear of the board helps balance MOSFET temperatures while providing structural reinforcement.
THERMAL PADA high-quality thermal pad helps transfer heat from the inductor and phase array to the heatsink.
STACKED-FIN HEATSINKMulti-layered fins maximise the surface area to speed heat dissipation from the controller, improving cooling.

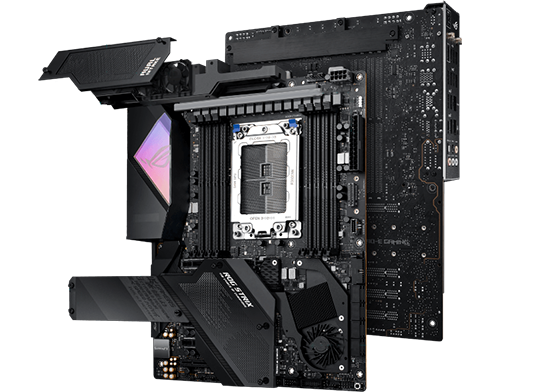

Plenty of Comprehensive Cooling Options

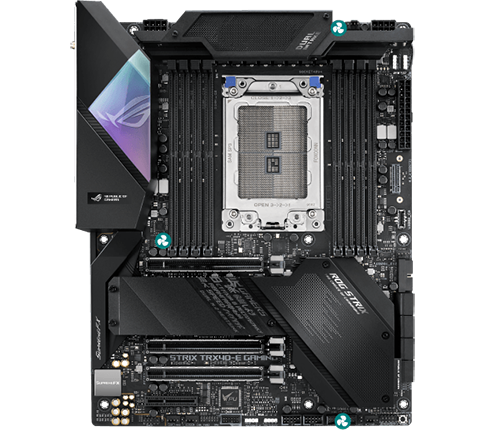

COOLER BY DESIGNROG Strix TRX40-E Gaming series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS. A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins. The custom low-noise fan features a high-durability bearing with a 60,000-hour lifespan. ROG Strix TRX40-E gaming features an SoC VRM heatsink positioned in the pathway of the chipset fan's airflow to enable the SoC VRM to stay cool during memory overclocking.
CPU FAN HEADER | AIO PUMP FAN HEADER | WATER PUMP + HEADERA dedicated PWM/DC fan header for CPU coolers and another one for self-contained water-cooling setups. There is also a Water pump header that can supply over 3A to high-performance PWM or DC water pumps.

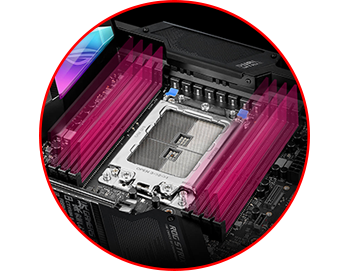

Proprietary Memory Design
DDR4 OC 4666MHZ+The TRX40 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots and an optimised trace layout enables DDR4 memory overclocking with maxed-out speeds for your build. Get ready for eye watering speed!

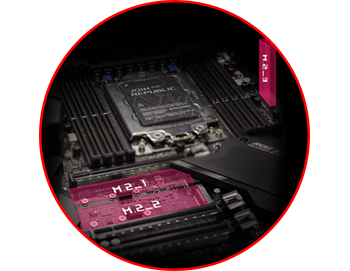

Triple M.2 Drives Utilising PCIe 4.0
READY FOR THE NEW GENERATIONROG Strix TRX40-E Gaming features triple M.2 slots. The M.2_3 slot supports both SATA and PCIe 4.0 x4 modes, and the other slots support PCIe 4.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.

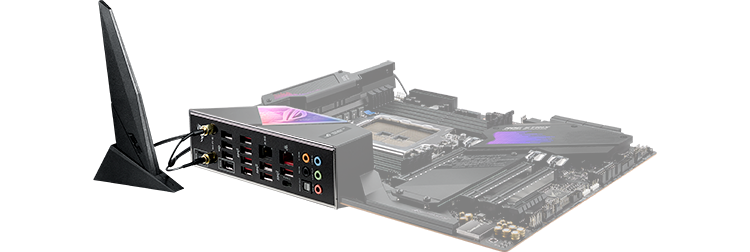

Explore your Limits with Multiple Networking Technologies
BEEFED-UP BANDWIDTH SO YOU CAN PUSH THROUGHPUT TO THE LIMITSROG Strix TRX40-E Gaming amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.
GameFirst V is an ROG-exclusive tool that lets you use a ROG router to build a ROG-networking ecosystem. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming, team your gateways and keep tabs on bandwidth-hogging apps — all from an intuitive interface that enables easy, on-the-fly adjustments. ROG First searches for ROG routers on the network and lets you automatically optimize their adaptive QoS settings for the best gaming performance, so you don't have to log in and configure the router manually.
WI-FI 6 (802.11 AX)The latest 802.11ax standard delivers high efficiency wireless connectivity for better gaming enjoyment. As well as providing better network pings in multi-user environments, 802.11ax also greatly improves throughput and coverage over earlier standards.
2.5G ETHERNET2.5G on-board Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
INTEL GIGABIT ETHERNETROG Strix TRX40-E Gaming features Intel Ethernet (I211-AT), ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
Shielded Audio Brings Superior Sound
GIVING YOU A NEW SENSE TO PERCEIVE THE LANDSCAPEImmerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.

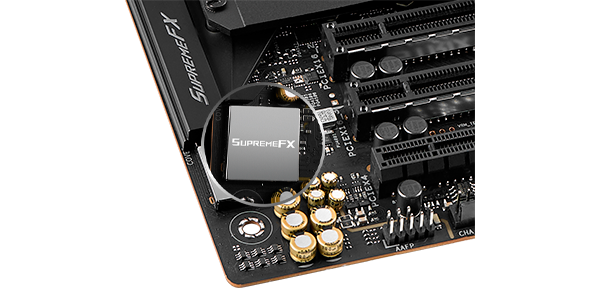

AUDIO COVEREffective shielding against electromagnetic interference preserves the integrity of audio signals for the best sound quality.
Livedash OLED Display
DISPLAY YOUR OWN CUSTOM LOGOROG Strix TRX40-E Gaming is equipped with LiveDash, a built-in 1.3“ OLED panel that displays useful information and customizable graphics. During the power-on, self-test (POST) phase, LiveDash shows key progress stats in simple language and via traditional POST codes. Then, during normal operation, the panel shows a choice of CPU frequency, device temperatures, fan speeds or information from the Water Cooling Zone. You're even able to customize the default LiveDash GIF, so that it'll display your own image or animation.
Control Your Rig With Detailed Tuning Software
LEVEL UP YOUR PERFORMANCEThe dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG TRX40-E system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
FLEXIBLE COOLING CONTROLSWith the ROG Series you have comprehensive control over fans via Fan Xpert 4 or the media-acclaimed UEFI. Whether you are cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. Extreme Quiet mode reduces all fan speeds to below the default minimum assuring your system stays whisper-quiet when performing light tasks.

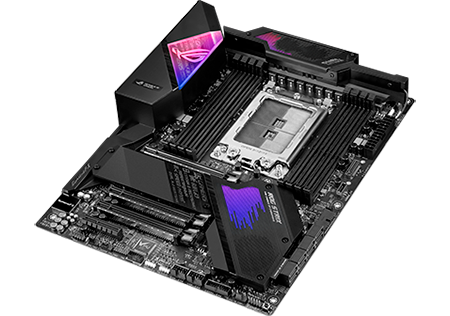

Grow your Gaming World with AURA Sync
CUSTOMISE YOUR GLOWROG Strix TRX40-E Gaming's Addressable Gen 2 RGB headers are now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Fine Tweak your Audio with Sonic Studio III
DTS : SOUND UNBOUND WITH SPATIAL TECHNOLOGYSonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
Boost your Game with Ramcache III
LAUNCH YOUR APPS AT NECK BREAKING SPEEDSRAMCache turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express storage options, its uniquely intelligent technology effectively caches an entire storage device so that favorite games and apps launch at breakneck speeds.
ASUS Armoury Crate and More
CENTRALIZED CONTROL FROM A SINGLE INTUITIVE INTERFACEArmoury Crate is a software utility designed to provide centralised control of supported ROG gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for uniﬁed system lighting effects. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.
