Z390 Extreme4 - Intel 9th Gen ATX Gaming Motherboard

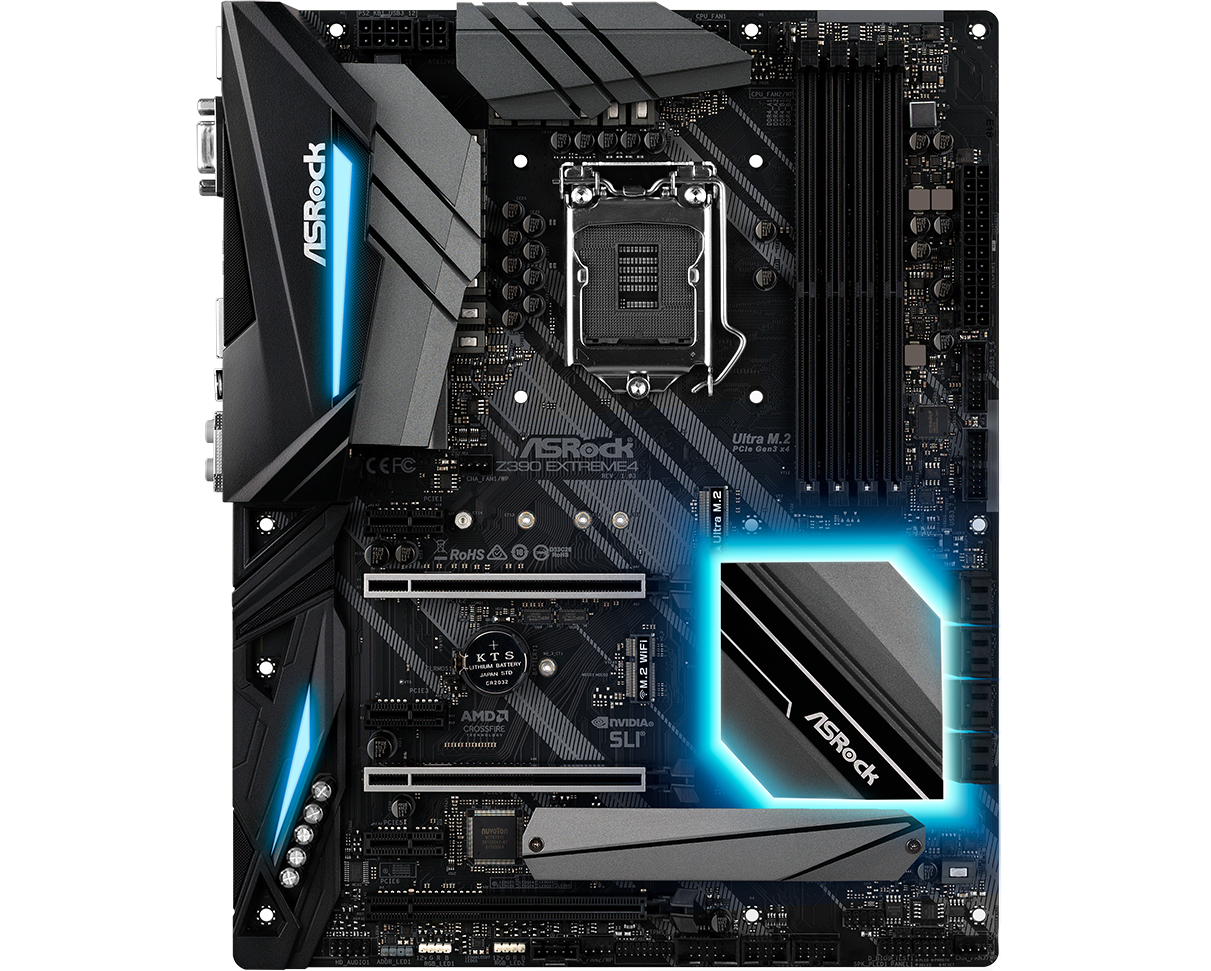

ASRock Z390 Extreme4

AN UNMATCHABLE PERFORMANCE WITH ASROCKASRock Z390 motherboards are the ultimate motherboard for gamers who require premium components. The Z390 Extreme4 motherboard is equipped with Dual M.2 and reversible USB 3.1 Gen1 Type-C connectivity. Enjoy the most crisp audio performance with ultra high definition Purity Sound4. The premium alloy design enhances your system, whilst intelligent ASRock hardware and software succeeds in providing a superior performance. Personalise your setup with ASRock Polychrome SYNC, create lighting effects with the built-in LED illumination. Featuring on-board RGB headers for compatible LED devices allowing for full synchronization.

Intel Z390Chipset

1151CPU Socket

8th & 9th Gen IntelCompatible CPUs

ATXForm Factor

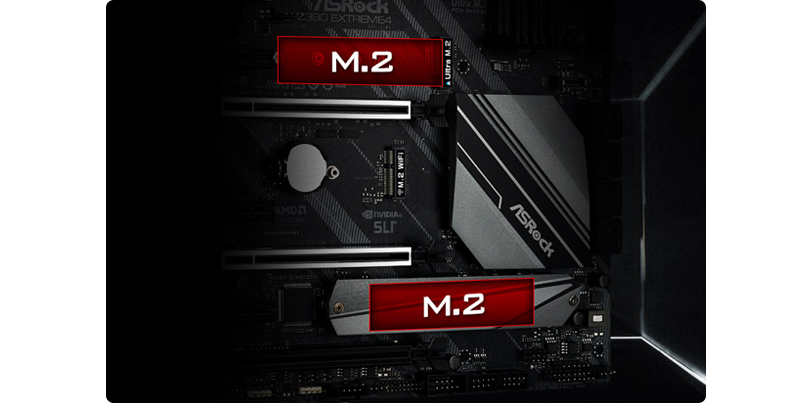

On-board Dual M.2

dual m.2

ULTRA-FAST SPEEDS UP TO 32GB/SEquipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.

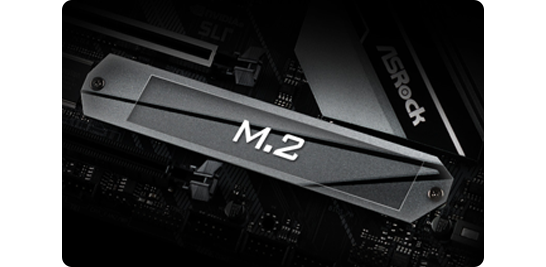

M.2 Heatsink

M.2 Heatsink

RUN YOUR M.2 SSD SMOOTHLYA massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.

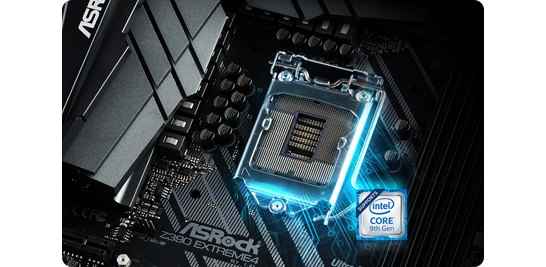

Supports 9th Gen Intel® Core Processors

Intel Core

PROVIDES EXTREME OVERCLOCKING POTENTIALThe motherboard is designed to make the best out of 9th Generation Intel® Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.

Rule Your own Lighting with Polychrome RGB

rgbrgb

ON-BOARD RGB LED HEADERSIn addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

High Definition Purity Sound 4

audio

CRISP SOUND EFFECTS IN GAMEIt's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC, Nichicon fine gold series audio caps and other technologies to deliver the crispest sound effects.

Advanced PCI-E Steel Slots

PCIe Steel Slot

PREVENT SIGNAL INTERFERENCEThe advanced PCI-E Steel Slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.

Next Gen Reversible USB Type-C

USB Gen 1 Type-C

UP TO 5 GBPS DATA TRANSFER RATEFront USB 3.1 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

On-board Dual USB 3.1 Gen2

vr

UP TO 10 GBPS DATA TRANSFER RATESThe ASRock Z390 motherboard has a pair of on-board Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Intel® Technology

Intel LAN

ENHANCED PERFORMANCE & STABILITYIntel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Superior Motherboard Alloy

heatsink

XXL ALUMINIUM ALLOY HEATSINKExtra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

power choke

PREMIUM 60A POWER CHOKECompared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

choke

PREMIUM MEMORY ALLOY CHOKESpecifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

up

DUAL-STACK MOSFET (DSM)Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.

Combo Caps

COMBO CAPSA combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

12K Black Caps

NICHICON 12K BLACK CAPSSupreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor

I/O ARMORA new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

pcb

MATTE BLACK PCBWitness the new mysterious matte black and copper colour scheme to match the prestigious components on ASRock's high-end motherboards.

pcb

HIGH DENSITY GLASS FABRIC PCBASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software and Premium Components

up

M.2 (KEY E) FOR WIFIBesides the on-board LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. *Wi-Fi module is not included.

up

WATER PUMP HEADERThis is not only a standard CPU fan header, but also supports water pumps. This header provides a maximum of 2A power for supporting the most popular water pumps. Users can also adjust the voltage of the water pump to get a higher cooling performance with lower noise.

down

DIGI POWERUnlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

down

TRIPLE MONITORGraphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

up

A-TUNINGA-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
