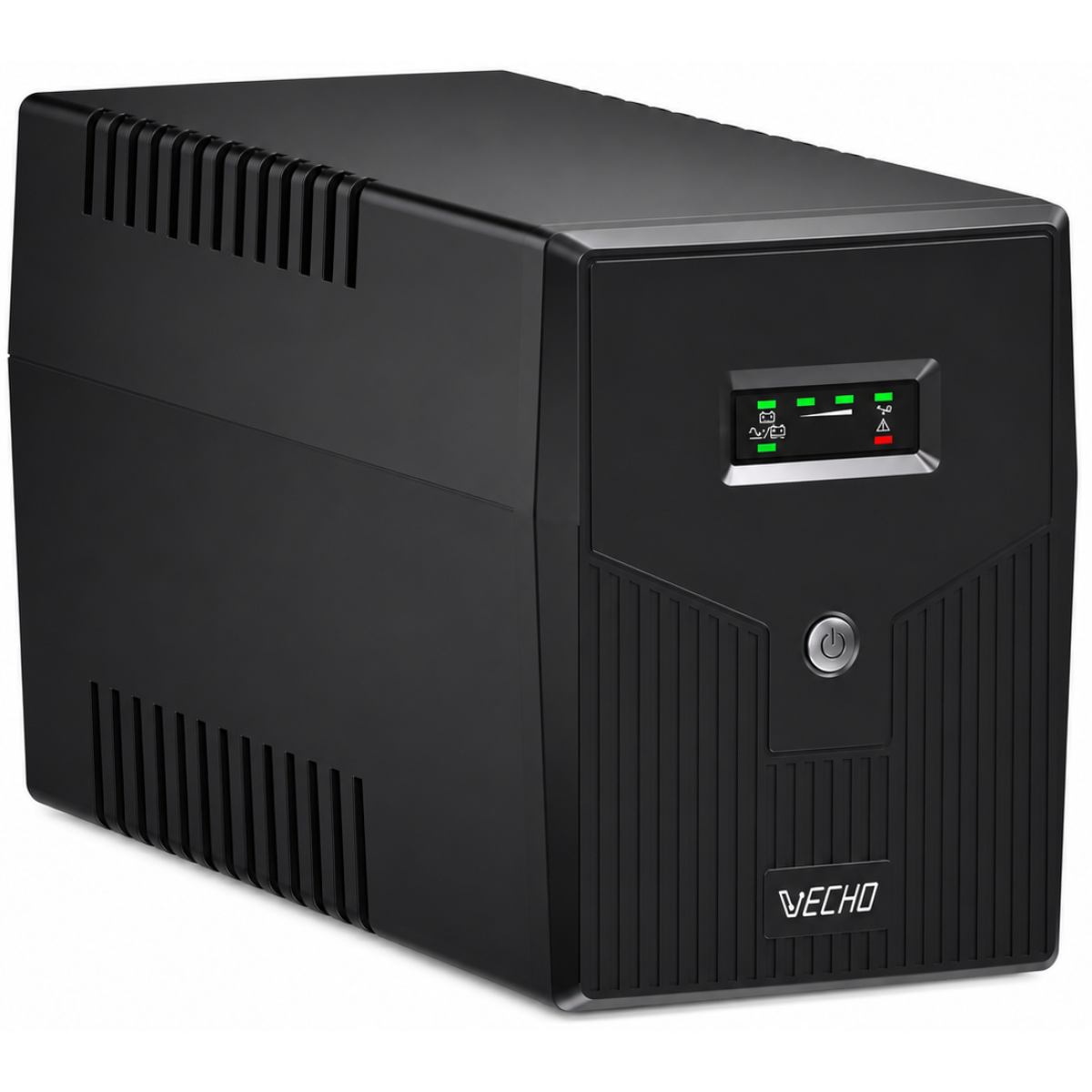

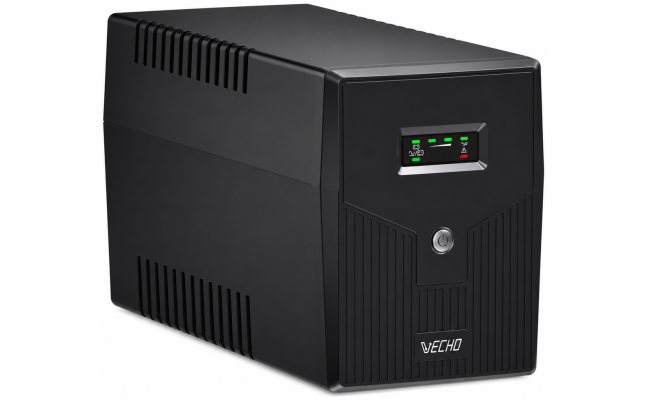

VECHO VEC-LT1200VA-1272 Line-Interactive UPS 1200VA / 720W
- • Capacity: 1200 VA / 720 W line-interactive UPS for computer power protection
- • Voltage Stabilization: Boost-and-buck AVR with a wide 140–300 VAC input range
- • Battery: Two 12 V, 7 Ah batteries with 6–8 hour recharge to 90% capacity
- • Response: Typical 4–8 ms transfer time with simulated sinewave battery output
- • Protection: Short-circuit, overload, overcharge and over-discharge protection
Share Product
- Availability:
- In Stock
- Product Code:
- VEC-LT1200VA-1272
- Brand:
- VECHO
JOD 69.00
Chat with us on Whatsapp
Chat with us on Whatsapp - Hosting
-
Free delivery on orders Over 100 JOD
-
Cash on Delivery
The VECHO VEC-LT1200VA-1272 is a line-interactive uninterruptible power supply designed for personal computer installations and compact working environments. It provides a rated capacity of 1200 VA / 720 W and delivers simulated sinewave output during battery operation.
Its integrated boost-and-buck automatic voltage regulation helps stabilize a wide 140–300 VAC input range. The UPS also supports cold start, automatic restart when AC power recovers, off-mode charging and intelligent battery recharging.
Key Features
- 1200 VA / 720 W Capacity: Provides power protection within the specified apparent-power and active-power limits.
- Line-Interactive Operation: Uses simulated sinewave output while operating from battery power.
- Automatic Voltage Regulation: Two boost stages and one buck stage help stabilize incoming AC voltage.
- Wide Input Range: Supports 140–300 VAC input at 50/60 Hz with automatic frequency sensing.
- Dual-Battery Configuration: Uses two 12 V, 7 Ah batteries with a typical recharge time of 6–8 hours to 90% capacity.
- Integrated Protection: Includes short-circuit, overload, overcharge and over-discharge protection.
Technical Specifications
| Component | Specification |
| Brand | VECHO |
| Model | VEC-LT1200VA-1272 |
| Product Type | Line-Interactive UPS |
| Capacity | 1200 VA / 720 W |
| Nominal Input Voltage | 230 VAC |
| Operating Voltage Range | 140–300 VAC |
| Operating Frequency | 50/60 Hz, auto sensing |
| Battery-Mode Voltage Regulation | ±10% |
| Battery-Mode Frequency | 50/60 Hz ±1 Hz |
| Transfer Time | Typical 4–8 ms; 13 ms maximum |
| Battery-Mode Waveform | Simulated sinewave |
| Battery Voltage | 12 VDC |
| Battery Configuration | 7 Ah × 2 |
| Recharge Time | 6–8 hours to recover 90% capacity |
| Voltage Regulation | Two boost stages and one buck stage AVR |
| Operating Functions | Cold start, auto restart, off-mode charging and generator compatibility |
| Alarm Conditions | Battery mode, low battery, overload, battery replacement and fault |
| Protection | Short circuit, overload, overcharge and over-discharge protection |
| Operating Humidity | 0–90% RH at 0–40°C, non-condensing |
| Noise Level | Less than 45 dB |
| Dimensions | 353 × 149 × 162 mm |
| Weight | 8.4 kg |
Compatibility & Important Information
Connected equipment should remain within both the 1200 VA apparent-power rating and the 720 W active-power rating. The UPS provides a simulated sinewave output during battery operation.

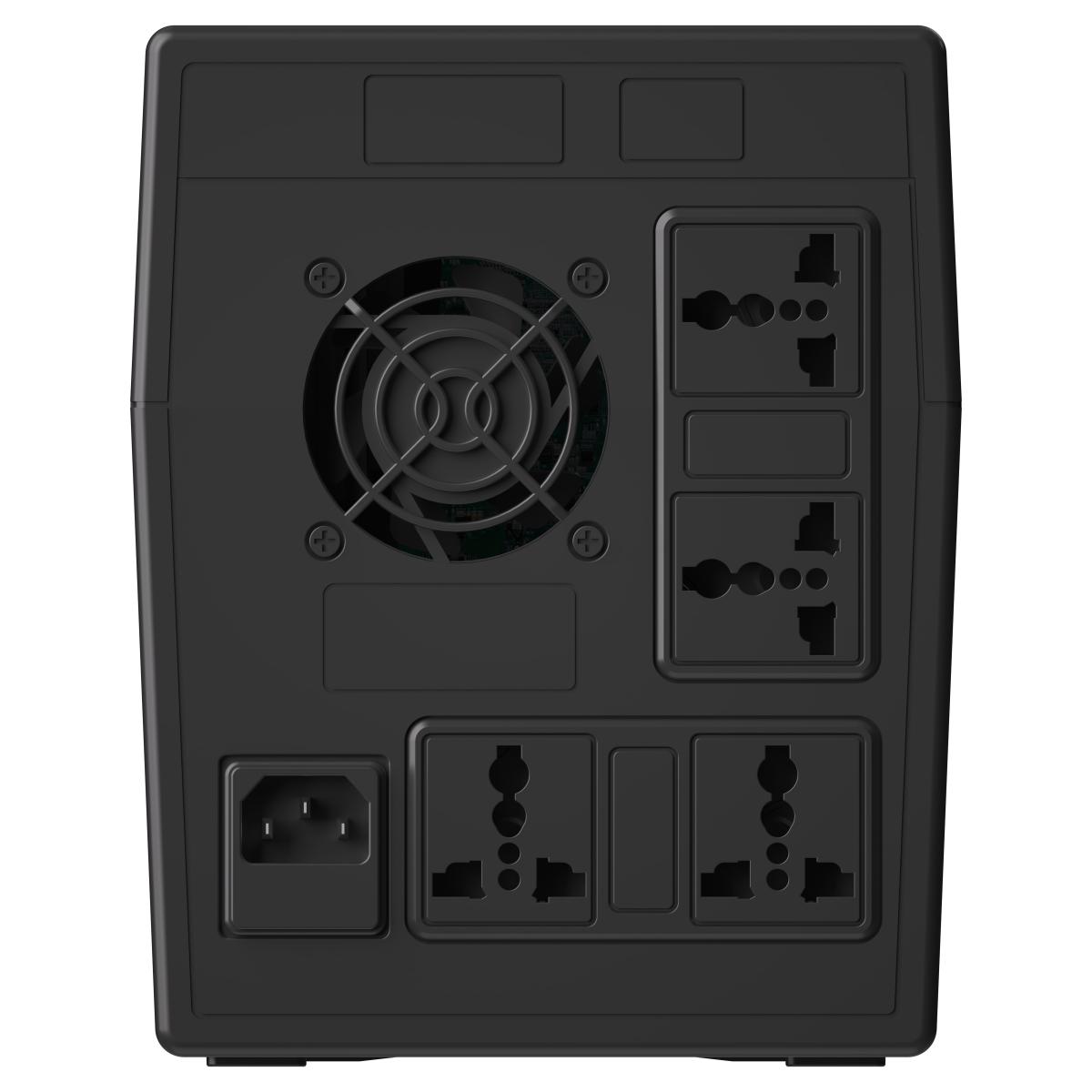

The product family is offered with LED or LCD panel selections, different output socket configurations and optional USB or RS232 communication with RJ11/RJ45 protection. Product photographs, display type, rear sockets and communication connections should match the exact version stocked by CityCenter.
Q: What is the capacity of the VECHO VEC-LT1200VA-1272?
A: It has a rated capacity of 1200 VA / 720 W.
Q: What type of UPS is this model?
A: It is a line-interactive UPS with boost-and-buck automatic voltage regulation.
Q: What input voltage range does it support?
A: Its specified operating input range is 140–300 VAC, with a nominal input voltage of 230 VAC.
Q: What waveform does it provide during battery operation?
A: The UPS provides simulated sinewave output while operating from its batteries.
Q: What battery configuration is used in the 1200 VA model?
A: The VEC-LT1200VA-1272 uses two 12 V, 7 Ah batteries.
Q: How long does the battery system take to recharge?
A: The typical recharge time is 6–8 hours to recover 90% battery capacity.
Q: Can the UPS start without mains power?
A: Yes. It supports a cold-start function that allows it to start without an AC power supply.
Q: Are the communication ports included with every version?
A: USB or RS232 communication and RJ11/RJ45 protection are optional features within the product family and depend on the selected version.
