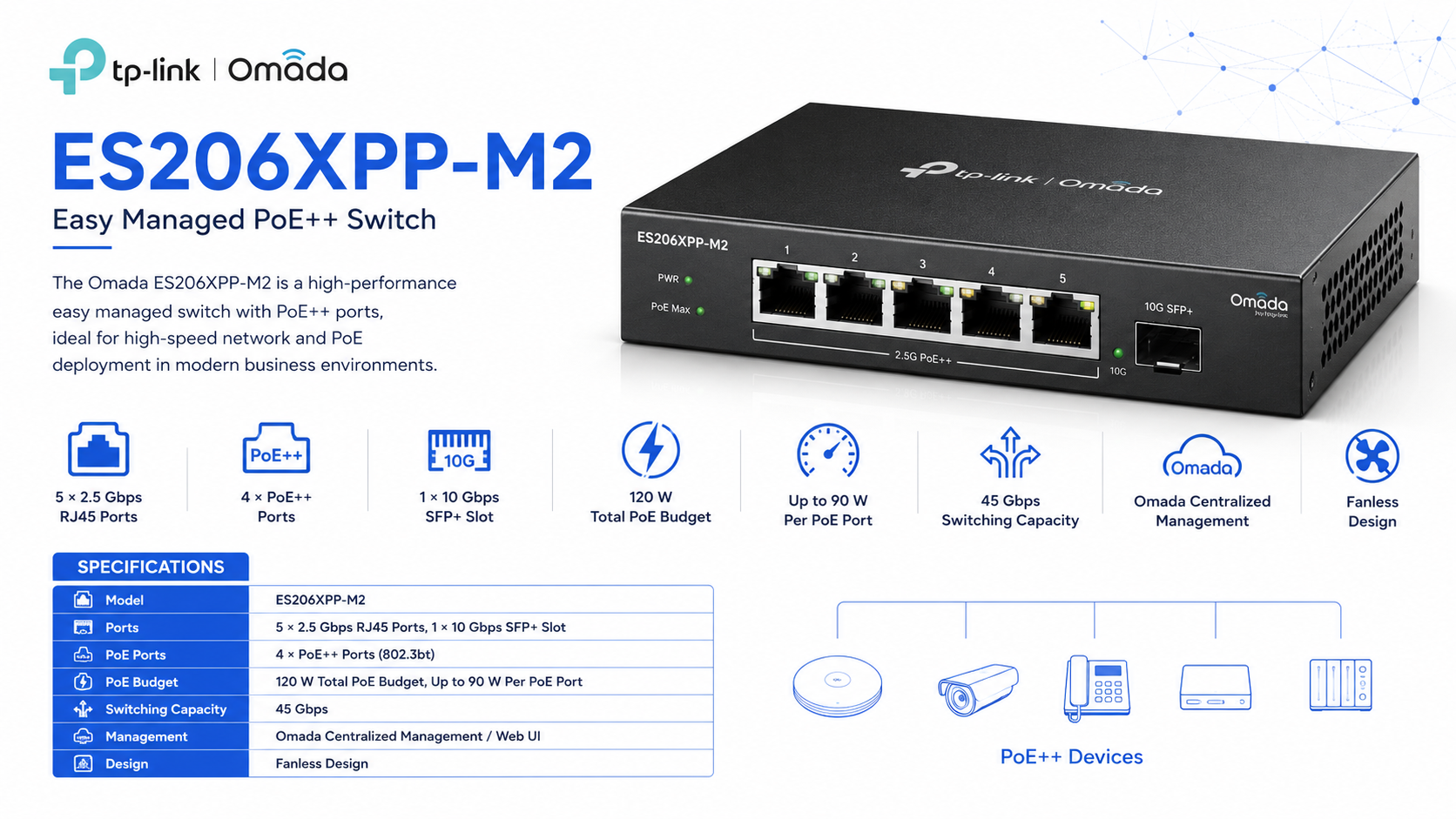

Tp-Link Omada ES206XPP-M2 Omada 5-Port 2.5G BASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++ 120W PoE budget, with up to 90W for each PoE port
- • Multi-Gigabit Ports: 5 × 2.5 Gbps RJ45 plus 1 × 10 Gbps SFP+ slot.
- • 4-Port PoE++: IEEE 802.3af/at/bt support with up to 90 W per PoE port.
- • 120 W PoE Budget: Power compatible access points and other PoE devices directly through Ethernet.
- • Easy Managed: VLAN, QoS, Port Isolation, IGMP Snooping and loop prevention support.
- • Fanless Design: Silent metal enclosure with desktop and wall-mount installation options.
Share Product
- Availability:
- In Stock
- Product Code:
- ES206XPP-M2
- Brand:
- TP-Link
JOD 125.00
Chat with us on Whatsapp
Chat with us on Whatsapp - Hosting
-
Free delivery on orders Over 100 JOD
-
Cash on Delivery
The Omada ES206XPP-M2 is a compact Easy Managed multi-gigabit switch designed for high-speed wired networks and PoE-powered devices. It provides five 2.5 Gbps RJ45 ports, including four PoE++ ports, together with a 10 Gbps SFP+ slot for high-speed uplink connectivity.
With a total 120 W PoE budget, up to 90 W available on a single PoE port, fanless operation and support for Omada centralized management, the ES206XPP-M2 is suited to deployments such as Wi-Fi 6/7 access points, network devices and other multi-gigabit environments requiring compact managed connectivity.
Key Features
- Multi-Gigabit Connectivity: Five 2.5 Gbps RJ45 ports plus one 10 Gbps SFP+ slot.
- 4-Port PoE++: Four RJ45 ports support IEEE 802.3af/at/bt PoE with a total 120 W PoE budget and up to 90 W per port.
- Easy Managed Networking: Supports VLAN, Port Isolation, QoS, IGMP Snooping and automatic loop prevention.
- Omada Management: Supports centralized management through compatible Omada controllers, with web and Omada app access.
- Fanless Design: Silent operation in a durable metal enclosure suitable for desktop or wall mounting.
- PoE Management Features: Supports Fast PoE, Perpetual PoE and PoE recovery functionality.
Technical Specifications
| Component | Specification |
| Brand | Omada |
| Model | ES206XPP-M2 |
| Product Type | Easy Managed PoE++ Switch |
| RJ45 Ports | 5 × 2.5 Gbps RJ45 |
| SFP+ Interface | 1 × 10 Gbps SFP+ Slot |
| PoE Ports | 4 × 2.5 Gbps RJ45 PoE++ Ports |
| PoE Standards | IEEE 802.3af/at/bt |
| Total PoE Budget | 120 W |
| Maximum PoE Per Port | Up to 90 W |
| Switching Capacity | 45 Gbps |
| Packet Forwarding Rate | 33.48 Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 640 KB |
| Jumbo Frame | 10 KB |
| Transmission Method | Store-And-Forward |
| VLAN | MTU VLAN, Port-Based VLAN, 802.1Q Tag VLAN |
| Management | Web-Based GUI and Omada Centralized Management |
| Cooling | Fanless |
| Installation | Desktop / Wall Mount |
| Power Supply | AC/DC Adapter, 100–240 V AC Input, 53.5 V DC / 2.43 A Output |
| Surge Protection | ±6 kV |
| Dimensions | 209 × 126 × 26 mm |
| Operating Temperature | -5 °C to 40 °C |
Compatibility & Important Information
- PoE Compatibility: Four RJ45 ports support IEEE 802.3af, 802.3at and 802.3bt PoE devices; the switch can also connect non-PoE devices.
- PoE Capacity: The total PoE budget is 120 W, with up to 90 W available from an individual PoE port. Actual available PoE power can vary according to connected devices and environmental conditions.
- Omada App & Cloud Access: These functions require a compatible Omada Hardware Controller, Cloud-Based Controller or Software Controller.
- Zero-Touch Provisioning: Requires an Omada Cloud-Based Controller.
- PoE Recovery: PoE Auto Recovery is supported in standalone mode, while controller mode supports manual PoE Recovery.
Package Contents
- ES206XPP-M2 Switch
- Power Adapter
- Power Cord
- Mounting Feet
- Installation Guide
Q: How many 2.5 Gbps ports does the Omada ES206XPP-M2 have?
A: It has five 2.5 Gbps RJ45 ports, four of which support PoE++.
Q: Does the ES206XPP-M2 include a 10 Gbps uplink?
A: Yes. It includes one 10 Gbps SFP+ slot.
Q: What PoE standards does the switch support?
A: The four PoE ports support IEEE 802.3af, 802.3at and 802.3bt PoE.
Q: What is the total PoE budget?
A: The switch provides a total PoE budget of 120 W, with up to 90 W available on an individual PoE port. Actual available power can vary according to connected devices and environmental conditions.
Q: Can the ES206XPP-M2 be centrally managed through Omada?
A: Yes. It supports centralized management using compatible Omada Cloud-Based, Hardware or Software Controllers.
Q: Does the switch support VLANs?
A: Yes. It supports MTU VLAN, Port-Based VLAN and 802.1Q Tag VLAN.
Q: Does the ES206XPP-M2 use a cooling fan?
A: No. It uses a fanless design for silent operation.
Q: Can the switch be wall mounted?
A: Yes. Omada specifies support for both desktop and wall-mount installation.
