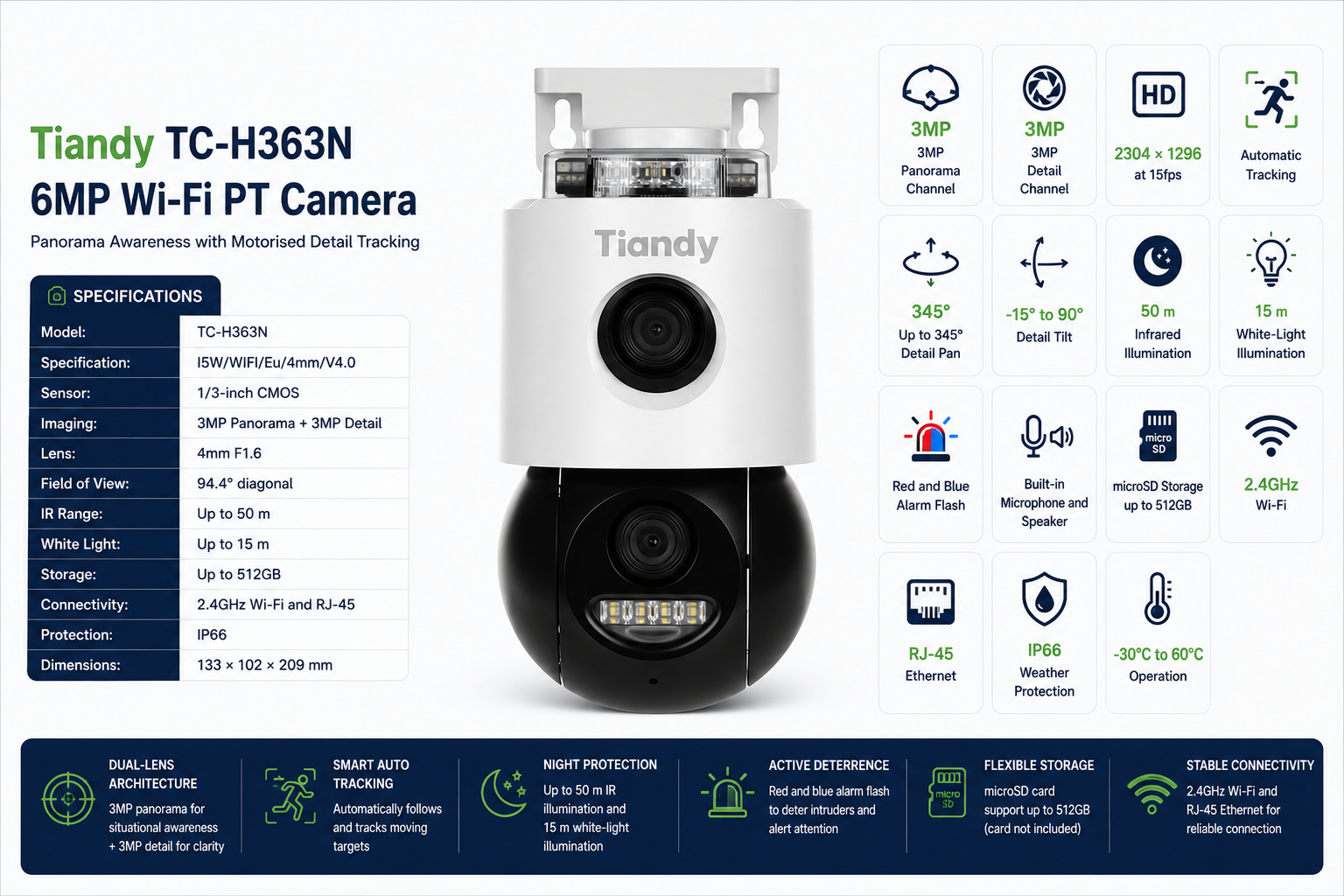

Tiandy TC-H363N I5W/WIFI/Eu/4mm/V4.0 6MP Fixed Color Maker Wi-Fi PT Camera

The Tiandy TC-H363N I5W/WIFI/Eu/4mm/V4.0 is a 6MP fixed Color Maker Wi-Fi PT security camera designed for demanding outdoor surveillance. It combines a 3MP panorama channel and a 3MP detail channel, motorised pan-and-tilt movement, automatic tracking, infrared illumination up to 50 metres, white-light illumination up to 15 metres, two-way audio, and microSD storage support up to 512GB.

With IP66 protection, a wide operating-temperature range, Wi-Fi and wired Ethernet connectivity, Smart Alarm analytics, and support for EasyLive Plus and Easy7 VMS, the camera is suitable for homes, offices, shops, warehouses, building entrances, and other indoor or outdoor monitoring applications.

AI Summary

The Tiandy TC-H363N combines a 3MP panorama channel and a 3MP detail channel for 6MP total imaging.

Its motorised PT mechanism, automatic tracking, Smart Alarm analytics, and up to 255 presets support flexible area monitoring.

Infrared illumination reaches up to 50 metres, while white-light illumination reaches up to 15 metres.

Built-in audio, microSD storage up to 512GB, Wi-Fi, and RJ-45 connectivity provide versatile deployment options.

IP66 protection and operation from -30°C to 60°C make the camera suitable for outdoor installations.

Feature Highlights

Key Features

• 6MP Dual-Channel Imaging: 3MP panorama and 3MP detail channels, each supporting 2304 × 1296 at 15fps.
• Motorised PT Coverage: Detail channel supports 0–345° pan and -15° to 90° tilt.
• Panorama Adjustment: Panorama channel supports -60° to 60° pan and 5° to 15° tilt adjustment.
• Automatic Tracking: Supports auto-tracking and Smart Alarm analytics.
• Fixed 4mm Lens: F1.6 aperture with a 94.4° diagonal field of view.
• Long-Range Night Vision: Infrared illumination reaches up to 50 metres.
• White-Light Illumination: Supports up to 15 metres of white-light coverage.
• Red and Blue Alarm Flash: Provides a visible alert function.
• Two-Way Audio: Includes one built-in microphone and one built-in loudspeaker.
• Large Local Storage: Supports microSD cards up to 512GB.
• Wireless and Wired Networking: Supports 2.4GHz Wi-Fi and one RJ-45 Ethernet port.
• Efficient Compression: Supports S+265, H.265, and H.264 formats.
• Outdoor Protection: IP66 rating and operating temperatures from -30°C to 60°C.
• Mobile and Desktop Access: Compatible with EasyLive Plus and Easy7 VMS.

Performance & Experience

The Tiandy TC-H363N provides simultaneous panoramic and detailed surveillance through two 3MP imaging channels. This dual-view design helps users maintain broader situational awareness while using the motorised detail channel to follow activity or inspect specific areas.

The PT mechanism supports a pan speed of 30° per second, a tilt speed of 25° per second, and up to 255 presets. Auto-tracking and Smart Alarm capabilities help automate monitoring, while ANR support improves recording continuity in compatible systems.

For low-light monitoring, the camera includes eight infrared LEDs across its panorama and detail channels, delivering illumination up to 50 metres. Eight white LEDs provide up to 15 metres of visible-light coverage, and a red-and-blue alarm flash offers an additional deterrent or notification function.

The camera supports both Wi-Fi and wired Ethernet deployment. It also includes built-in audio, local storage up to 512GB, S+265 compression, and environmental protection suitable for outdoor installation.

Why Choose This Product?

• Combines panorama and detail imaging in one device.
• Provides a total 6MP dual-channel surveillance solution.
• Supports motorised pan, tilt, and automatic tracking.
• Offers infrared illumination up to 50 metres.
• Includes white-light illumination and red-blue alarm flash.
• Supports two-way audio through built-in microphone and speaker.
• Accepts microSD cards up to 512GB.
• Supports both Wi-Fi and RJ-45 Ethernet connectivity.
• Includes Smart Alarm and ANR functionality.
• Uses S+265 compression to reduce bandwidth and storage requirements.
• IP66 protection supports outdoor deployment.
• Operates in temperatures from -30°C to 60°C.

Technical Specifications

Connectivity

Ideal For

• Outdoor home security
• Building entrances
• Warehouses
• Retail shops
• Car parks
• Small business premises
• Office perimeters
• Loading areas
• Courtyards and gates
• Indoor areas requiring broad and detailed coverage

Who Should Buy This?

The Tiandy TC-H363N is suitable for users who need a weather-resistant dual-channel camera with panoramic awareness, motorised detailed tracking, long-range infrared illumination, two-way audio, Wi-Fi and Ethernet connectivity, and large local-storage support. It is particularly well suited to homes and businesses that need one camera to provide both a broad overview and a movable detailed view.
