ASUS NUC 16 Pro Mini PC , Intel Core Ultra 5 325 Processor, Wi-Fi 7, Bluetooth 6.0, Dual 2.5G LAN, Thunderbolt 4, Barebone System - Black
- • Processor: Intel Core Ultra 5 325 with Intel Graphics
- • Barebone Kit: Supplied without RAM, SSD or preinstalled operating system
- • Memory Support: Up to 128 GB of compatible DDR5 memory
- • Wireless: Intel Wi-Fi 7 BE211 (Gig+) with Bluetooth 6.0
- • Connectivity: 2 × Thunderbolt 4 plus dual 2.5 Gigabit Ethernet and multiple USB ports
Share Product
- Availability:
- In Stock
- Product Code:
- RNUC16GDKU560002
- Brand:
- Asus
JOD 579.00
Chat with us on Whatsapp
Chat with us on Whatsapp - Hosting
-
Free delivery on orders Over 100 JOD
-
Cash on Delivery

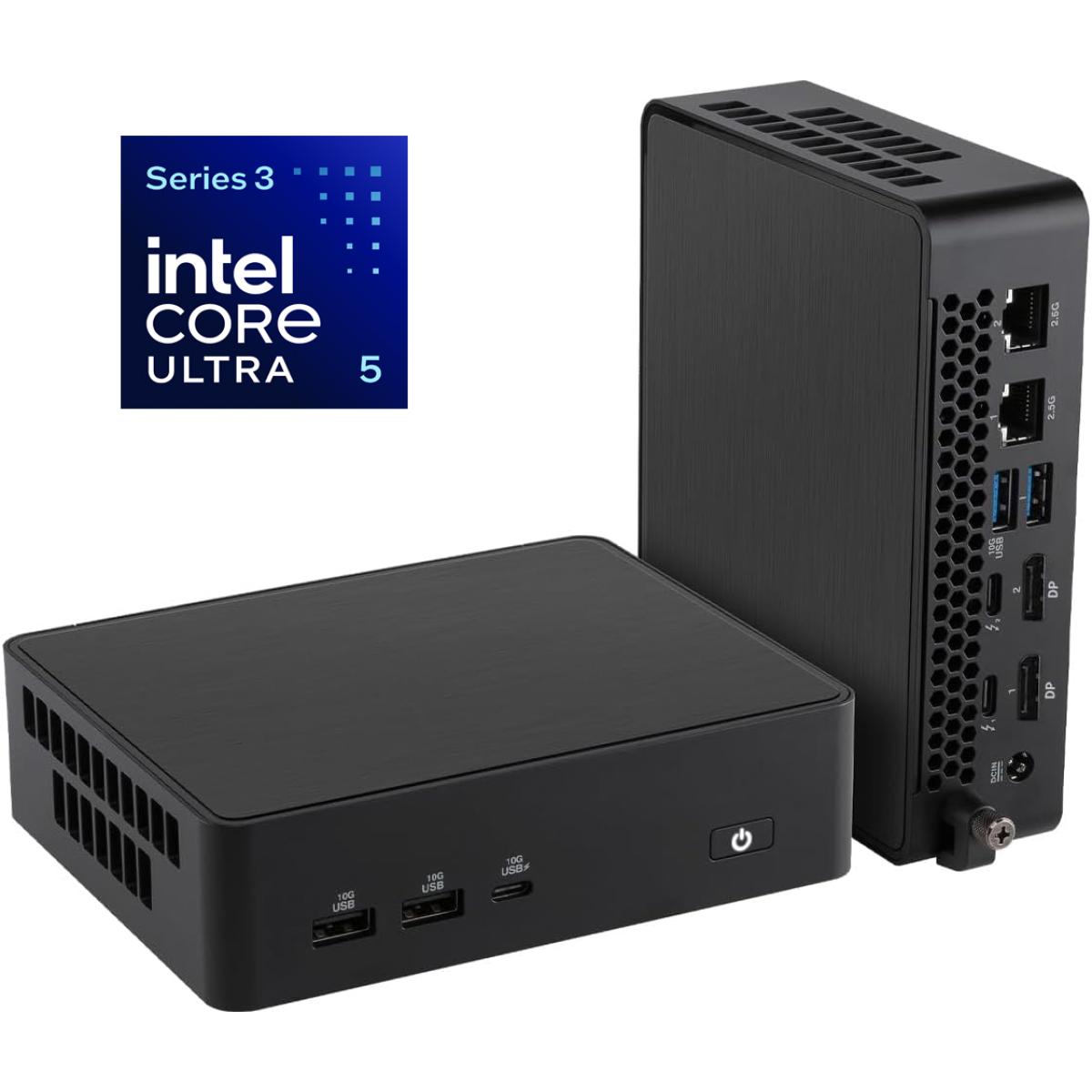

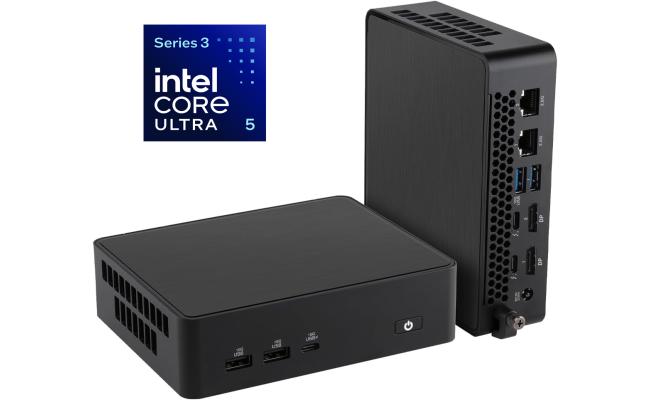

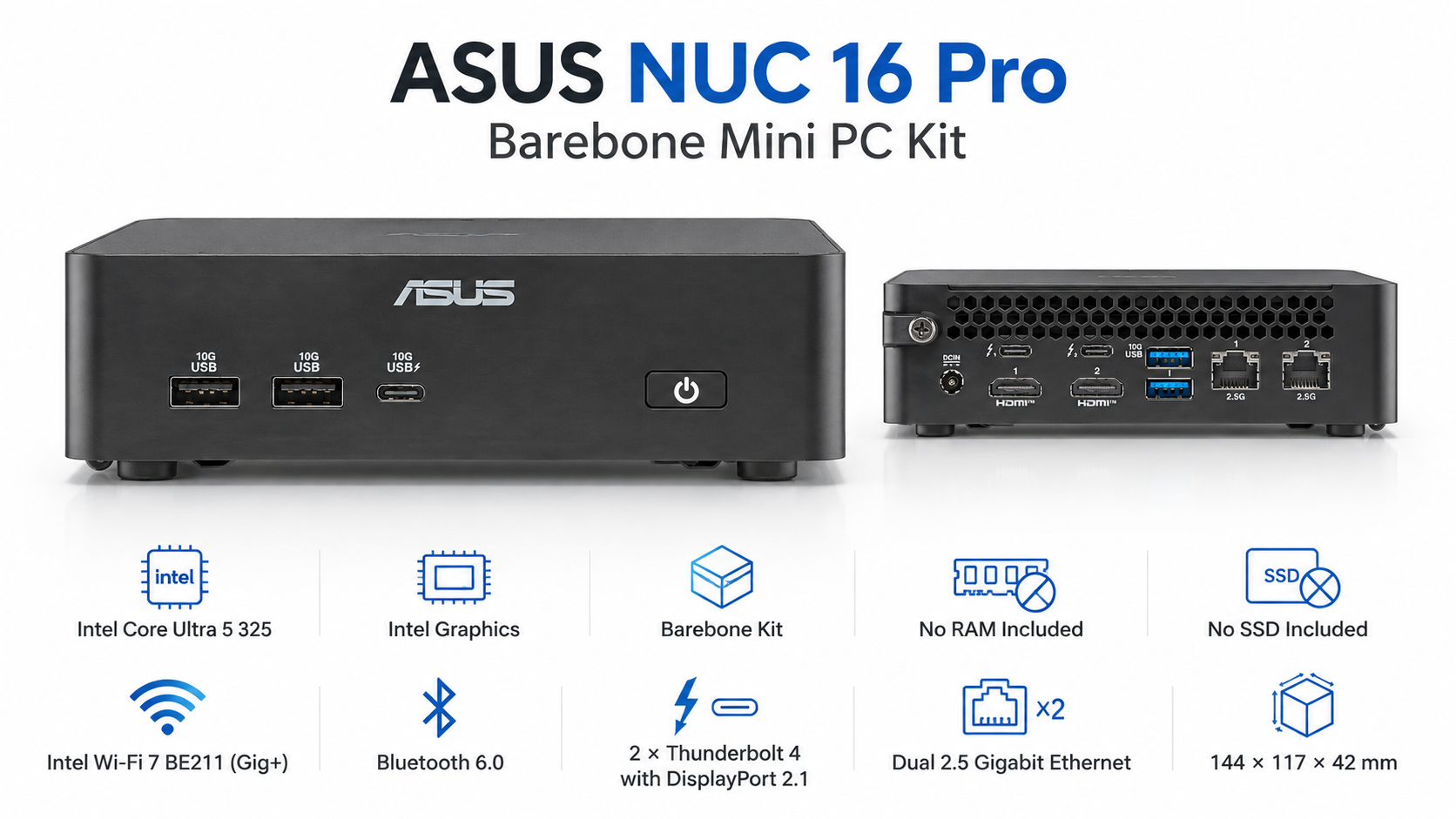

The ASUS NUC 16 Pro NUC16GDKU5 is a compact barebone Mini PC kit powered by the Intel Core Ultra 5 325 processor with Intel Graphics. Designed for flexible system configuration, this kit is supplied without RAM or SSD, allowing compatible memory and storage to be selected according to deployment requirements.
The NUC 16 Pro platform combines a compact 144 × 117 × 42 mm chassis with Intel Wi-Fi 7 BE211 connectivity, Bluetooth 6.0, dual 2.5 Gigabit Ethernet and an extensive selection of USB and Thunderbolt 4 connections. Its barebone format provides a flexible foundation for building a compact Intel-based desktop system.
Key Features
- Intel Core Ultra 5 325: Intel Core Ultra processor configured with a 45 W cTDP on the ASUS NUC 16 Pro platform.
- Barebone Kit: Supplied without RAM or SSD for flexible system configuration.
- Intel Graphics: Integrated Intel Graphics for the NUC16GDKU5 configuration.
- Wi-Fi 7: Intel Wi-Fi 7 BE211 (Gig+) wireless connectivity with Bluetooth 6.0.
- High-Speed Connectivity: Thunderbolt 4, USB Type-C, USB Type-A and dual 2.5 Gigabit Ethernet connectivity.
- Compact Chassis: Space-efficient 144 × 117 × 42 mm Mini PC kit design.
Technical Specifications
| Component | Specification |
| Brand | ASUS |
| Product Family | ASUS NUC 16 Pro |
| Model | NUC16GDKU5 |
| Product Code | 90AR00W2-M00080 |
| Form Factor | Kit |
| Processor | Intel Core Ultra 5 325 |
| Processor cTDP | 45 W |
| Chipset | Integrated |
| Graphics | Intel Graphics |
| Memory Included | No memory included at shipment |
| Maximum Memory | Up to 128 GB |
| Storage Included | No storage included at shipment |
| Storage Support | M.2 2280 NVMe PCIe 4.0 ×4 or PCIe 5.0 ×4 SSD, 128 GB–8 TB |
| Operating System | No preinstalled OS |
| Wireless | Intel Wi-Fi 7 BE211 (Gig+) |
| Bluetooth | Bluetooth 6.0 |
| LAN | Dual 2.5 Gigabit Ethernet |
| Front / Side I/O | 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 2 Type-A, Kensington Lock |
| Thunderbolt | 2 × Thunderbolt 4 Type-C with DisplayPort 2.1 |
| Rear USB | 2 × USB 3.2 Gen 2 Type-A |
| Network Ports | 2 × RJ45 LAN |
| Audio | Digital audio; no analog audio support |
| Dimensions | 144 × 117 × 42 mm |
| Region | EU |
Compatibility & Important Information
- NUC16GDKU5 is a barebone kit supplied without RAM and SSD.
- The kit does not include a preinstalled operating system.
- This exact configuration uses the Intel Core Ultra 5 325 processor with Intel Graphics.
- Compatible storage includes M.2 2280 NVMe PCIe 4.0 ×4 and PCIe 5.0 ×4 SSDs from 128 GB to 8 TB.
- The platform supports up to 128 GB of compatible DDR5 memory.
- Intel Wi-Fi 7 BE211 (Gig+) wireless connectivity is included.
- ASUS specifies digital audio without analog audio support.
| Processor Specifications | |
|---|---|
| Processor Brand | Intel |
| Processor Type | Intel® Ultra 5 |
| Processor Generation | Series 300 |
| Processor Model | 325 |
| Processor Speed | up to 4.5GHz Max Turbo |
| Number Of Cores | 8 - Cores |
| Processor Cache | 12 MB Cache |
| Inputs & Outputs | |
| Ports | 1x USB 3.2 Gen2x1 Type-C
2x USB 3.2 Gen2 Type-A 1x Kensington Lock (Side) 2x Thunderbolt 4 Type-C w/ DisplayPort 2.1 2x USB 3.2 Gen2 Type-A 2x DP 2.1 2x RJ45 LAN 1x DC-in 2x Thunderbolt 4 Type-C w/ DisplayPort 2.1 2x USB 3.2 Gen 2 Type-A 2x HDMI 2.1 (TMDS Compatible) 2x RJ45 LAN 1x DC-in |
| Audio | Digital Audio |
Q: Which processor is installed in the ASUS NUC16GDKU5?
A: This configuration uses the Intel Core Ultra 5 325 processor.
Q: What graphics does this configuration use?
A: This NUC16GDKU5 configuration uses Intel Graphics.
Q: Does the ASUS NUC16GDKU5 include RAM?
A: No. This barebone kit is supplied without RAM.
Q: Does the kit include an SSD?
A: No. This configuration is supplied without an SSD. It supports compatible M.2 2280 NVMe PCIe 4.0 ×4 or PCIe 5.0 ×4 storage.
Q: Is Windows preinstalled?
A: No. ASUS specifies no preinstalled operating system for the kit configuration.
Q: Does this configuration include Wi-Fi 7?
A: Yes. It includes Intel Wi-Fi 7 BE211 (Gig+) wireless connectivity.
Q: Does the ASUS NUC 16 Pro support Thunderbolt 4?
A: Yes. The platform provides two Thunderbolt 4 Type-C connections with DisplayPort 2.1 support.
Q: What is the product code for this configuration?
A: The supplied product code is 90AR00W2-M00080.
