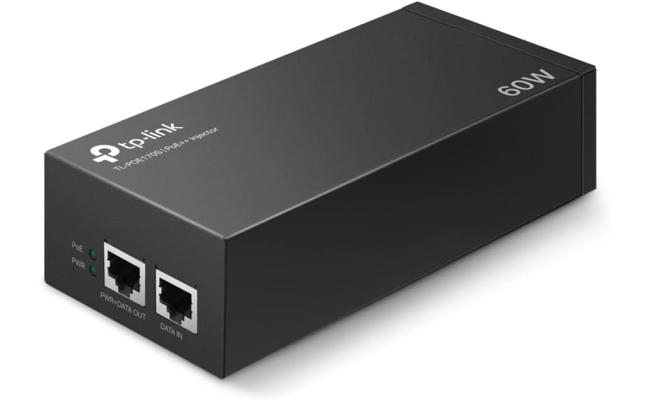

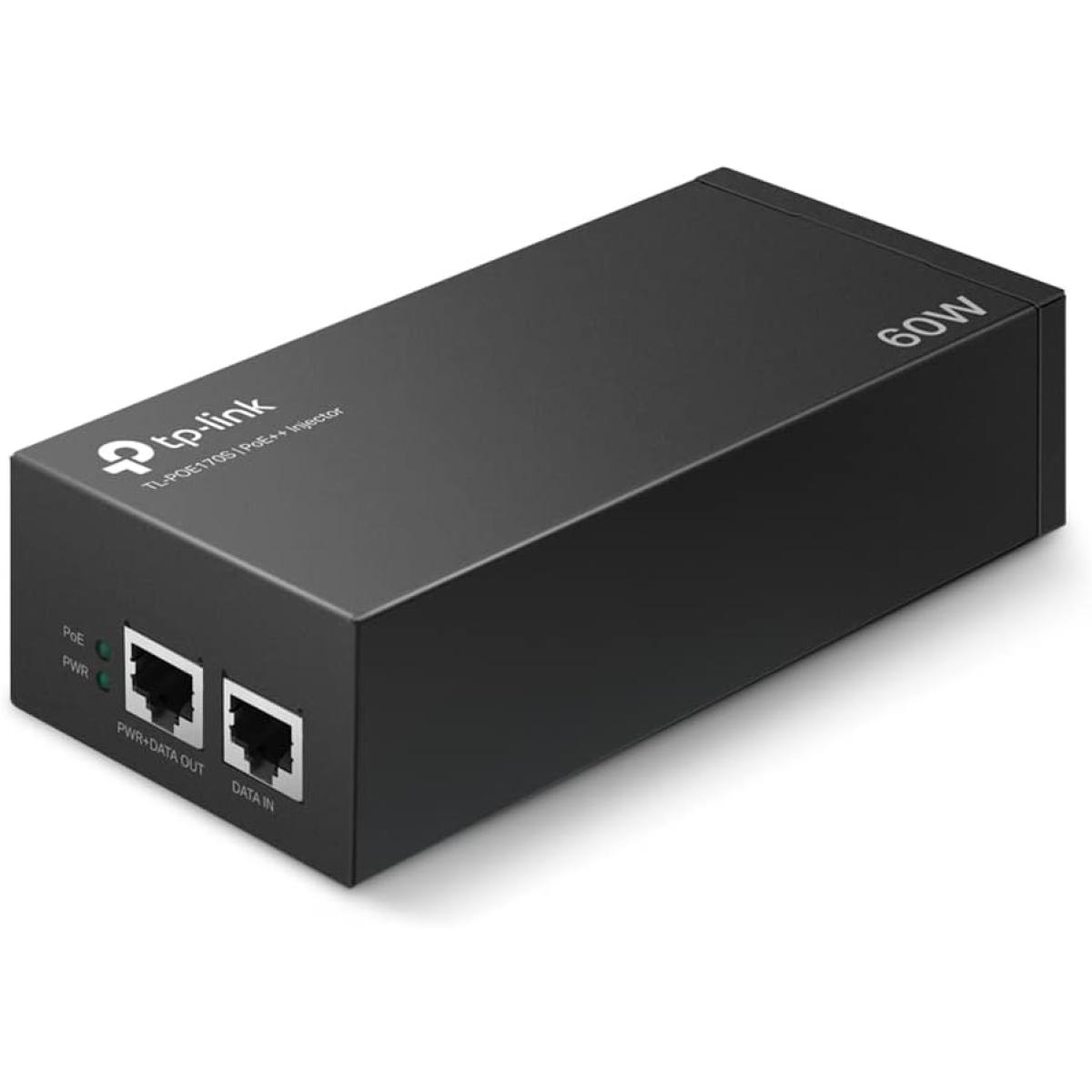

Omada POE170S PoE++ Injector, Up to 60W, Deliver Power up to 100 meters , Gigabit, UL Certified
- • PoE++ Power: Delivers up to 60 W to compatible powered devices
- • PoE Standards: IEEE 802.3af, 802.3at and 802.3bt Type 3
- • Gigabit Ethernet: Gigabit data-in and power+data-out RJ45 ports
- • Automatic Detection: Automatically determines compatible device power requirements
- • Installation: Plug-and-play design with desktop and wall-mounting support
Share Product
- Availability:
- In Stock
- Product Code:
- POE170S
- Brand:
- TP-Link
JOD 59.00
Chat with us on Whatsapp
Chat with us on Whatsapp - Hosting
-
Free delivery on orders Over 100 JOD
-
Cash on Delivery

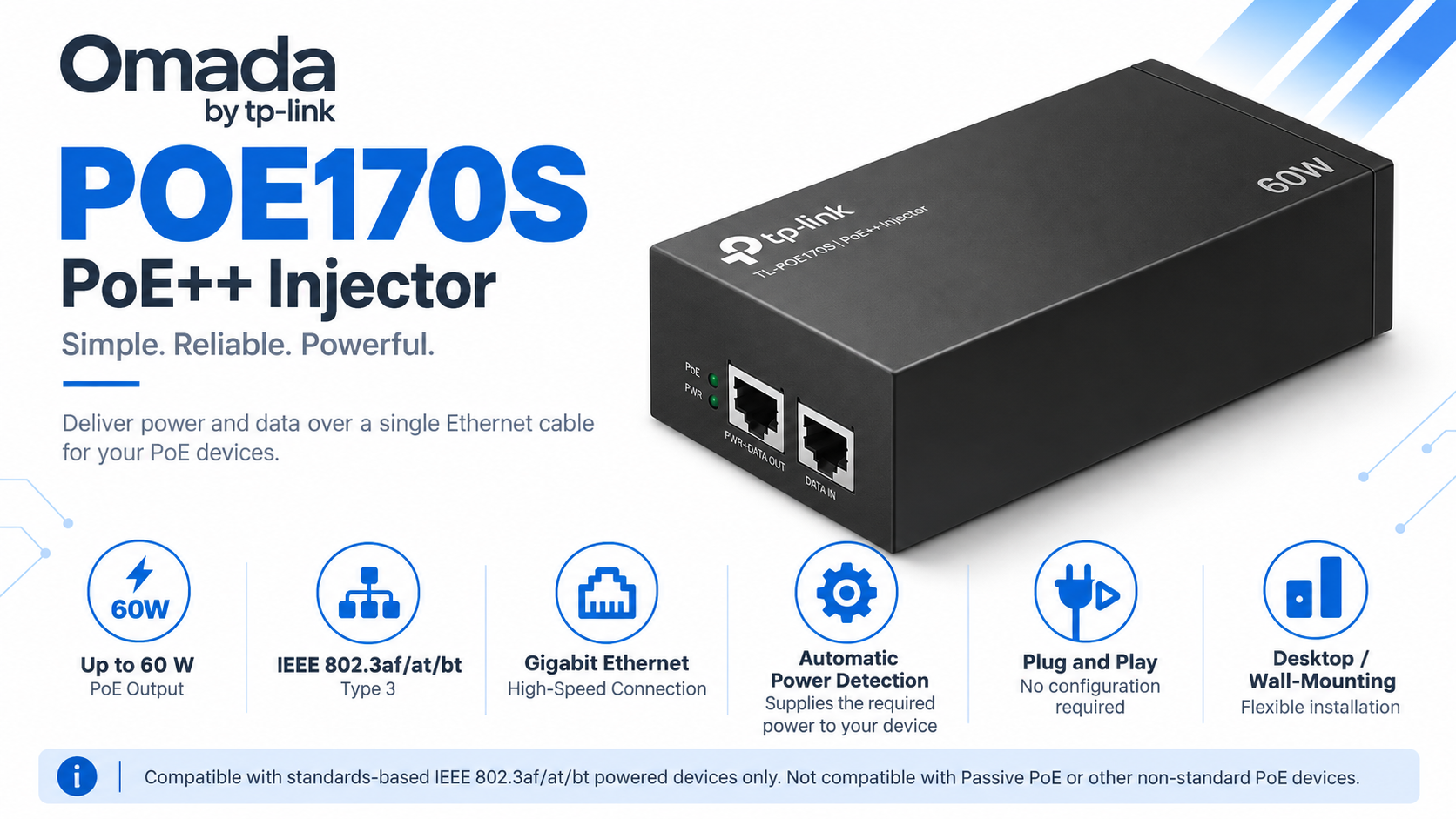

The Omada POE170S is a Gigabit PoE++ injector designed to deliver network data and electrical power to compatible PoE devices over a single Ethernet cable. It supports IEEE 802.3af, 802.3at and 802.3bt Type 3 standards with up to 60 W output.
With automatic power detection, Gigabit connectivity and plug-and-play operation, the POE170S provides a practical way to power compatible access points, PTZ IP cameras and other standards-based PoE devices where a separate power outlet may not be conveniently available.
Key Features
- Up to 60 W PoE: Supplies up to 60 W through its power-and-data output port.
- PoE++ Support: Compatible with IEEE 802.3af, 802.3at and 802.3bt Type 3 standards.
- Gigabit Connectivity: Features Gigabit data-in and Gigabit power-and-data-out RJ45 ports.
- Automatic Power Detection: Automatically determines the necessary power requirements for compatible powered devices.
- Plug and Play: Requires no configuration for installation.

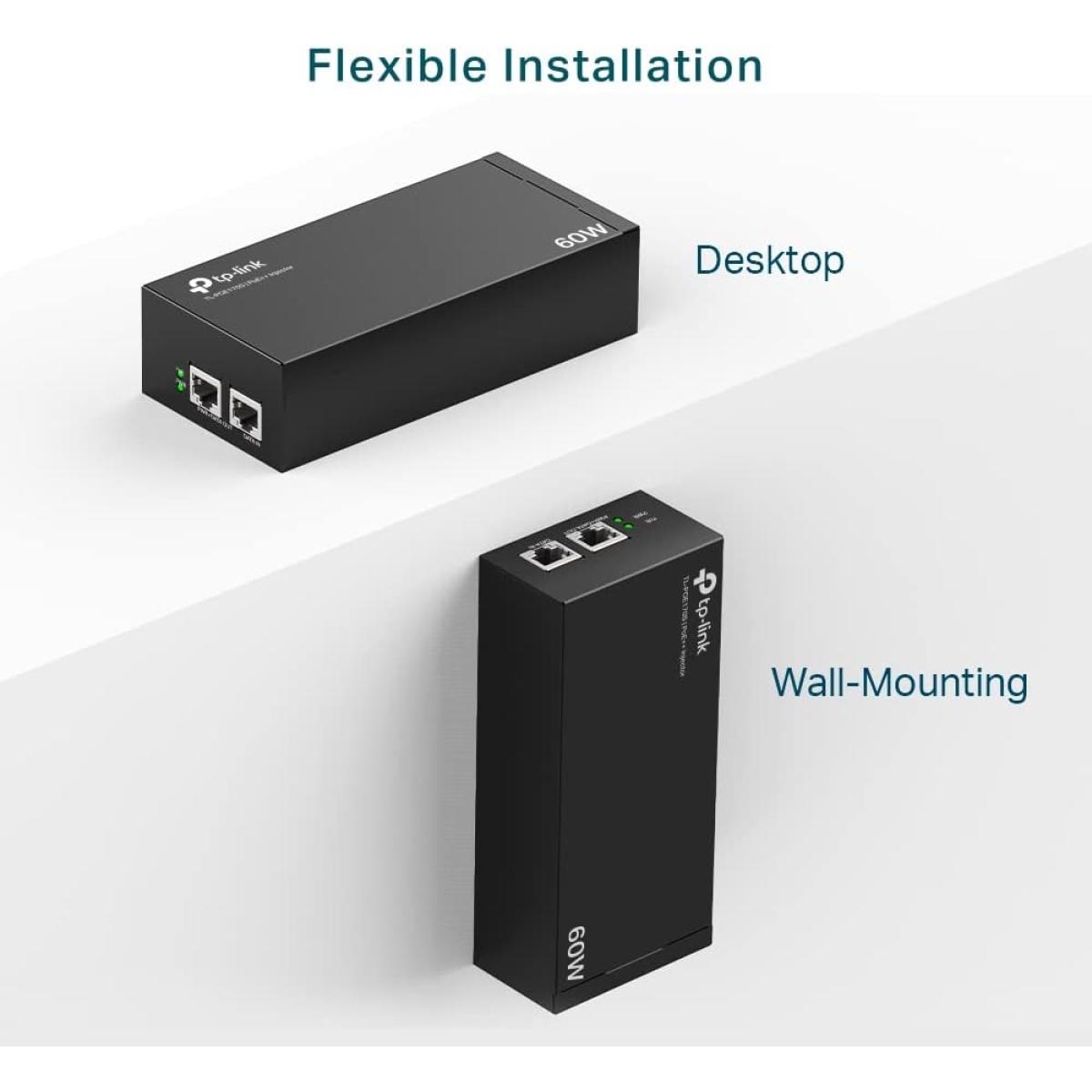

- Flexible Placement: Supports both desktop and wall-mounted installation.
Technical Specifications
| Component | Specification |
| Brand | Omada |
| Model | POE170S |
| Product Type | PoE++ Injector |

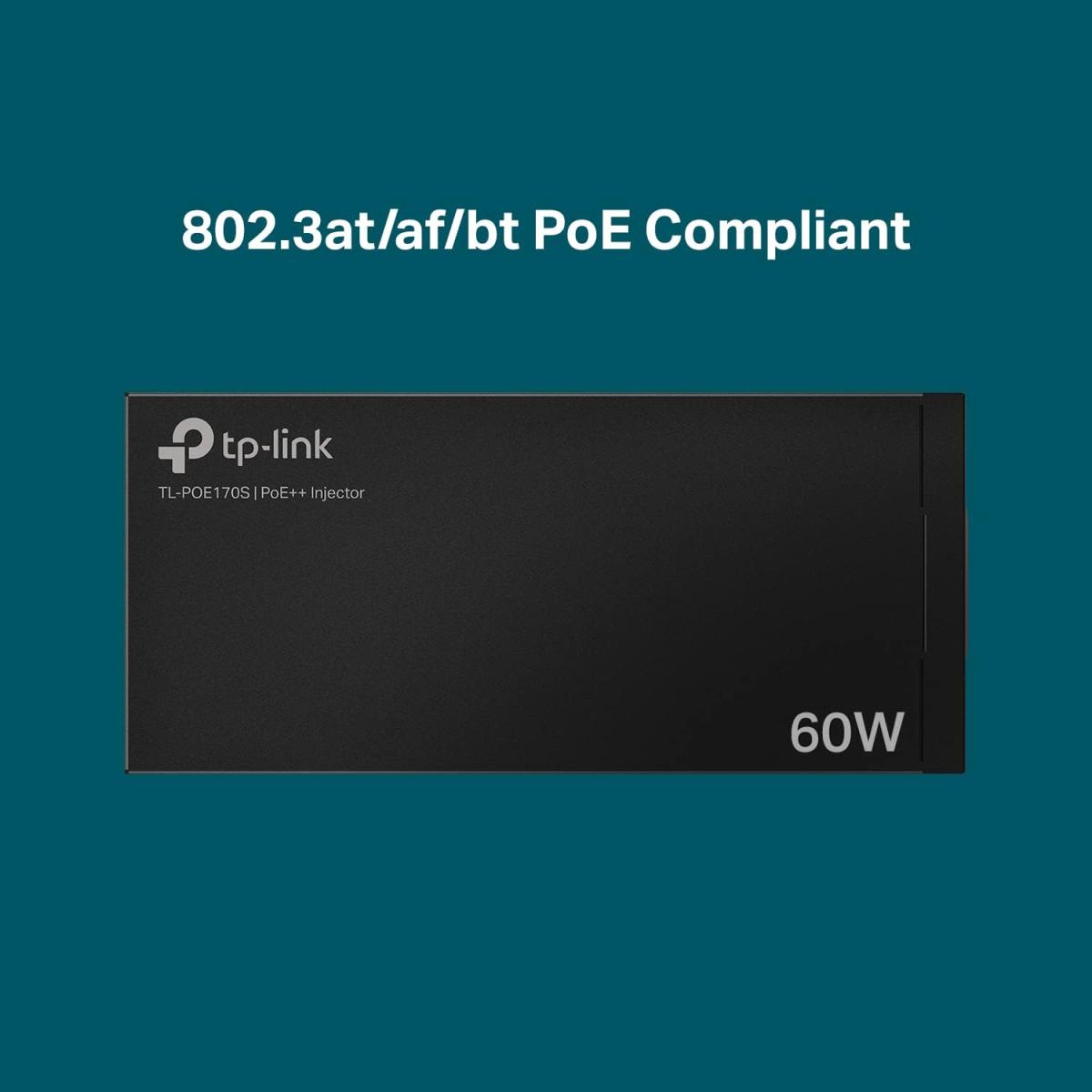

| PoE Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 |
| Ethernet Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab |

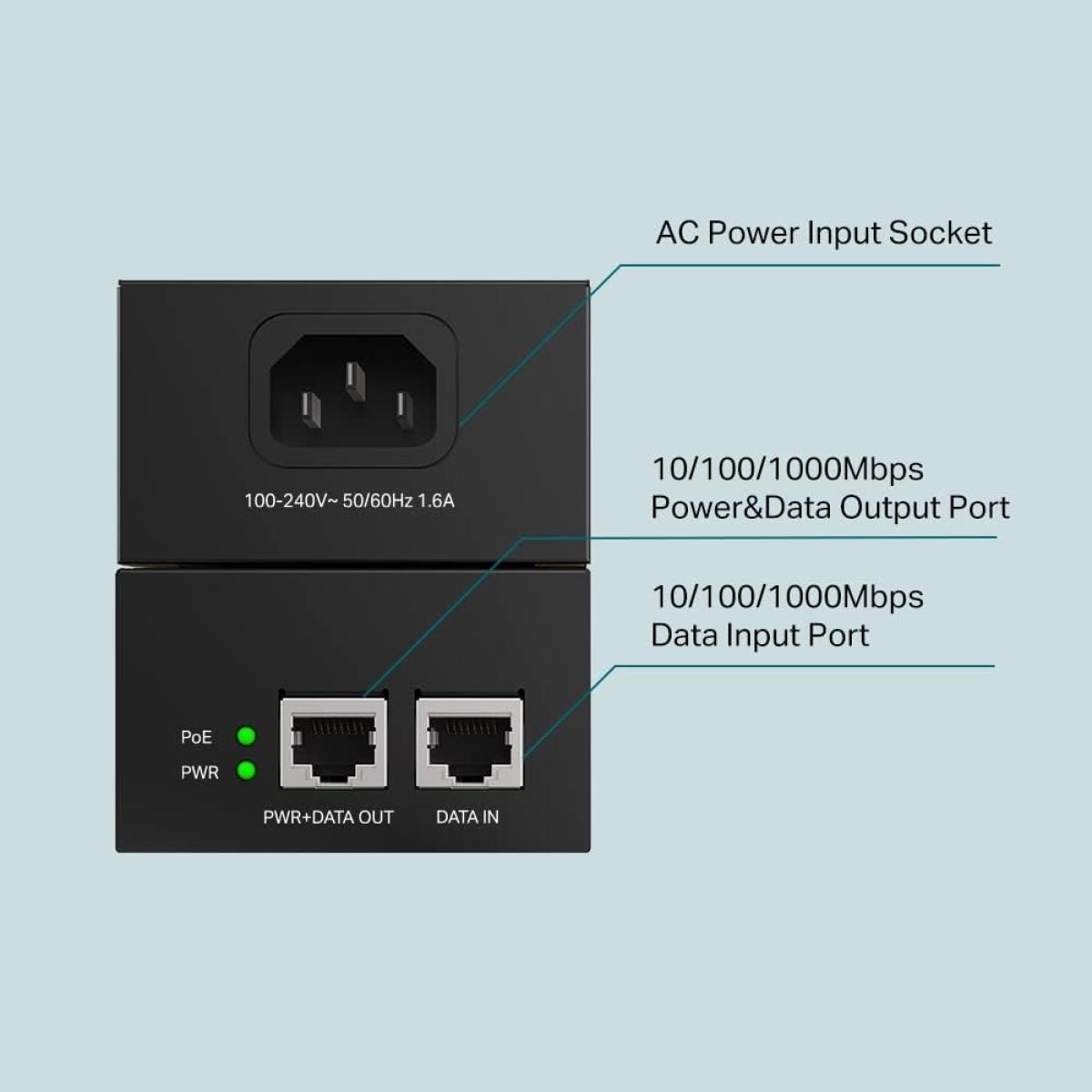

| Data Input | 1 × 10/100/1000 Mbps RJ45 |
| Power + Data Output | 1 × 10/100/1000 Mbps RJ45, max. 60 W |
| Power Input | 100–240 V, 50/60 Hz, 1.6 A |
| Maximum PoE Output | 60 W |
| LED Indicators | Power, PoE |
| Installation | Desktop / Wall-mounting |
| Material | Metal casing |
| Dimensions | 155 × 70 × 42 mm |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Certifications | FCC, CE, RoHS |
Compatibility & Important Information

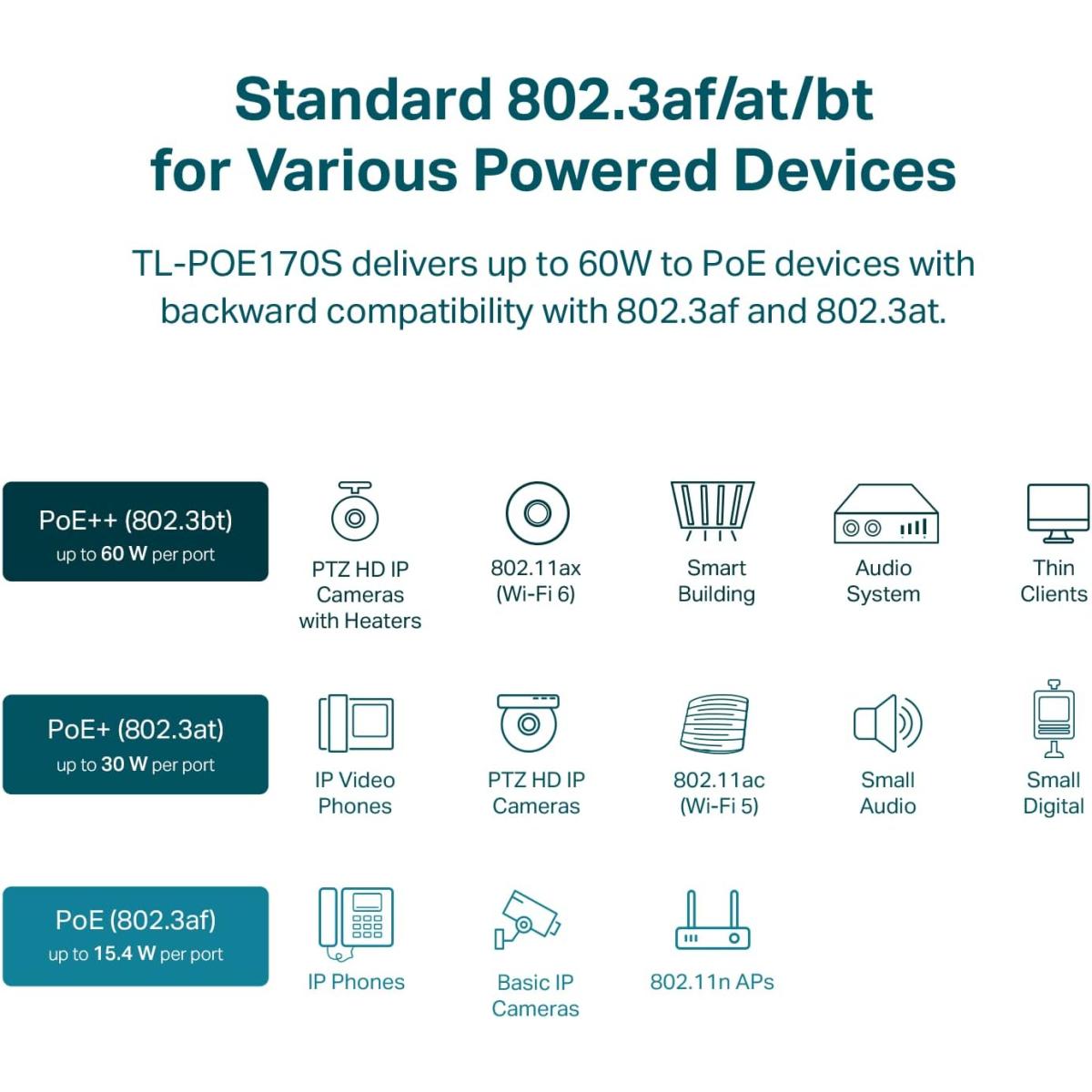

The POE170S is designed for powered devices compliant with IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt standards. Its auto-sensing function determines the necessary power requirements of a compatible powered device.
Important: POE170S is incompatible with Passive PoE and other non-standard PoE devices.
Package Contents
- Omada POE170S PoE++ Injector
- Installation Guide
- Power Cord
- RJ45 Cable
Q: How much PoE power can the Omada POE170S supply?
A: The POE170S can supply up to 60 W through its power-and-data output port.
Q: Which PoE standards does the POE170S support?
A: It supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Type 3.
Q: Does the POE170S support Gigabit Ethernet?
A: Yes. It has one 10/100/1000 Mbps RJ45 data-in port and one 10/100/1000 Mbps RJ45 power-and-data-out port.
Q: Can the POE170S be used with Passive PoE equipment?
A: No. Omada specifies that the POE170S is incompatible with Passive PoE and other non-standard PoE devices.
Q: Does the injector require configuration?
A: No. The POE170S supports plug-and-play installation.
Q: Can the POE170S be wall-mounted?
A: Yes. It supports both wall-mounted and desktop installation.
Q: What comes with the POE170S?
A: The official package contents list the POE170S injector, installation guide, power cord and RJ45 cable.
