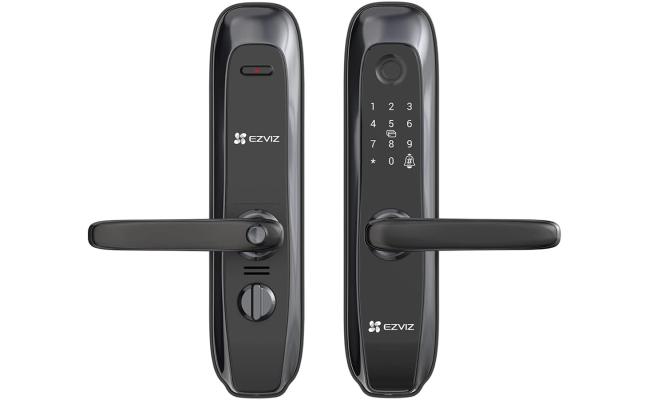

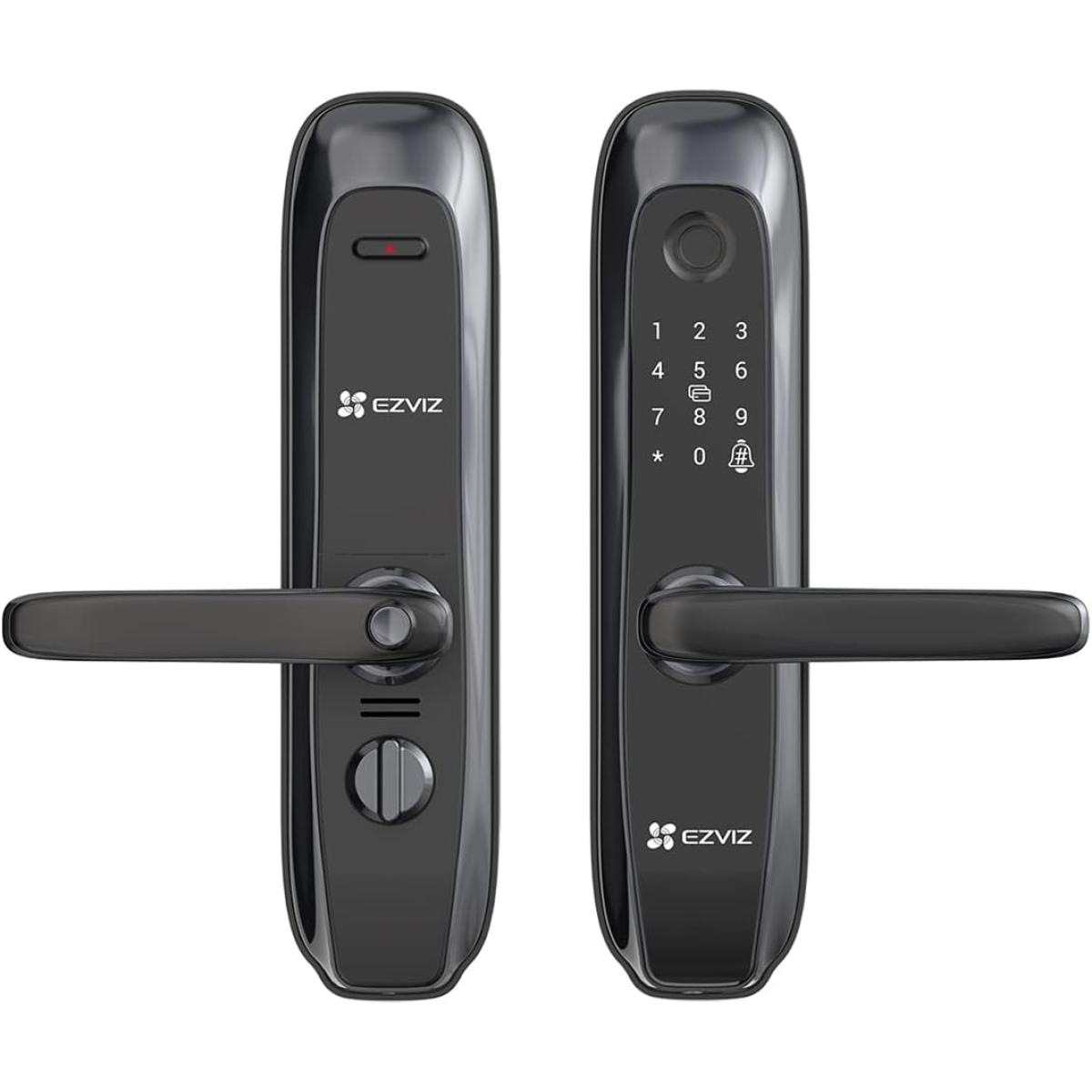

EZVIZ L2S Smart Fingerprint Lock, Keyless Lock with Four Unlock Methods, Real-Time Mobile Alerts, Built-In Electronic Doorbell, Anti-Tamper Alarm, Low-Battery Warning, Easy User Management

The EZVIZ L2S is a Zigbee 3.0 smart fingerprint lock designed for compatible wooden and iron doors. It provides four physical unlocking methods—fingerprint, passcode, proximity card and mechanical key—while supporting user access management, temporary passwords, real-time mobile alerts and door status logs through the EZVIZ App.

Built with an aluminum-alloy panel and C-grade lock cylinder, the L2S combines keyless access with practical security functions including automatic locking, a handle safety lock, anti-tamper alarm and failed-attempt protection. The supplied gateway enables its connected Zigbee functions.

Key Features

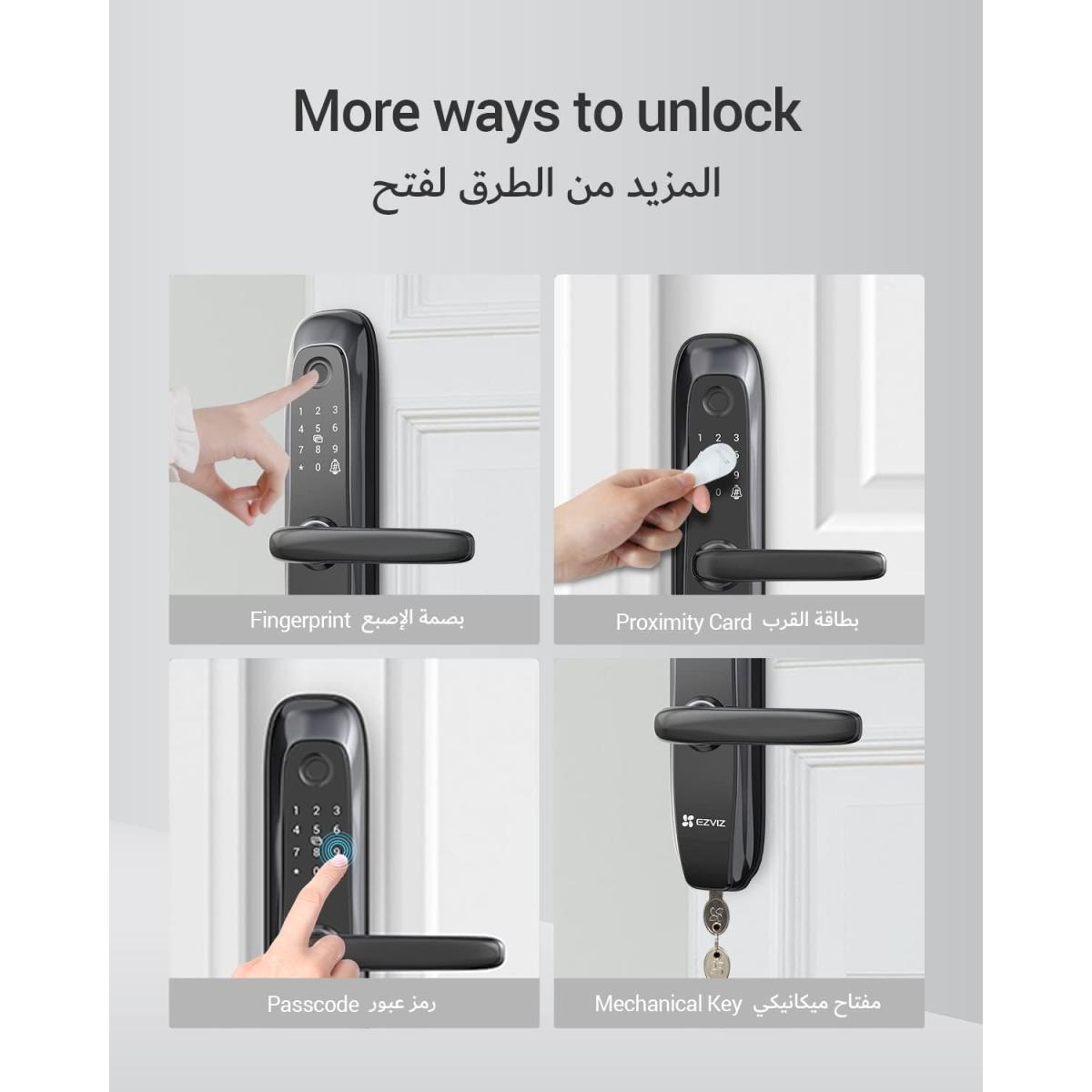

• Four Unlock Methods: Unlock using a fingerprint, passcode, EZVIZ proximity card or mechanical key.
• Fingerprint Access: Semiconductor fingerprint sensor with capacity for up to 50 fingerprints.
• Zigbee 3.0 Connectivity: Supports connected access management, temporary passwords, mobile alerts and door status logs.
• Visitor Access: Create temporary passcodes through the EZVIZ App and use the built-in electronic doorbell for visitors.
• Security Functions: Includes a C-grade lock cylinder, anti-tamper alarm, handle safety lock and automatic protection after repeated failed unlocking attempts.
• Flexible Installation: Supports right- or left-handed handle setup and compatible wooden and iron doors within the specified installation requirements.

Technical Specifications

Compatibility & Important Information

EZVIZ specifies the L2S for wooden and iron doors from 40 to 110 mm thick. The standard range is 40 to 55 mm for wooden doors and 55 to 75 mm for iron doors. The lock supports both right-handed and left-handed handle setup.

The required lock face plate is a standard 240 × 24 mm double-hole rectangular-angle type. EZVIZ specifies a 30 × 218 mm strike plate for wooden doors and a 30 × 260 mm strike plate for iron doors.

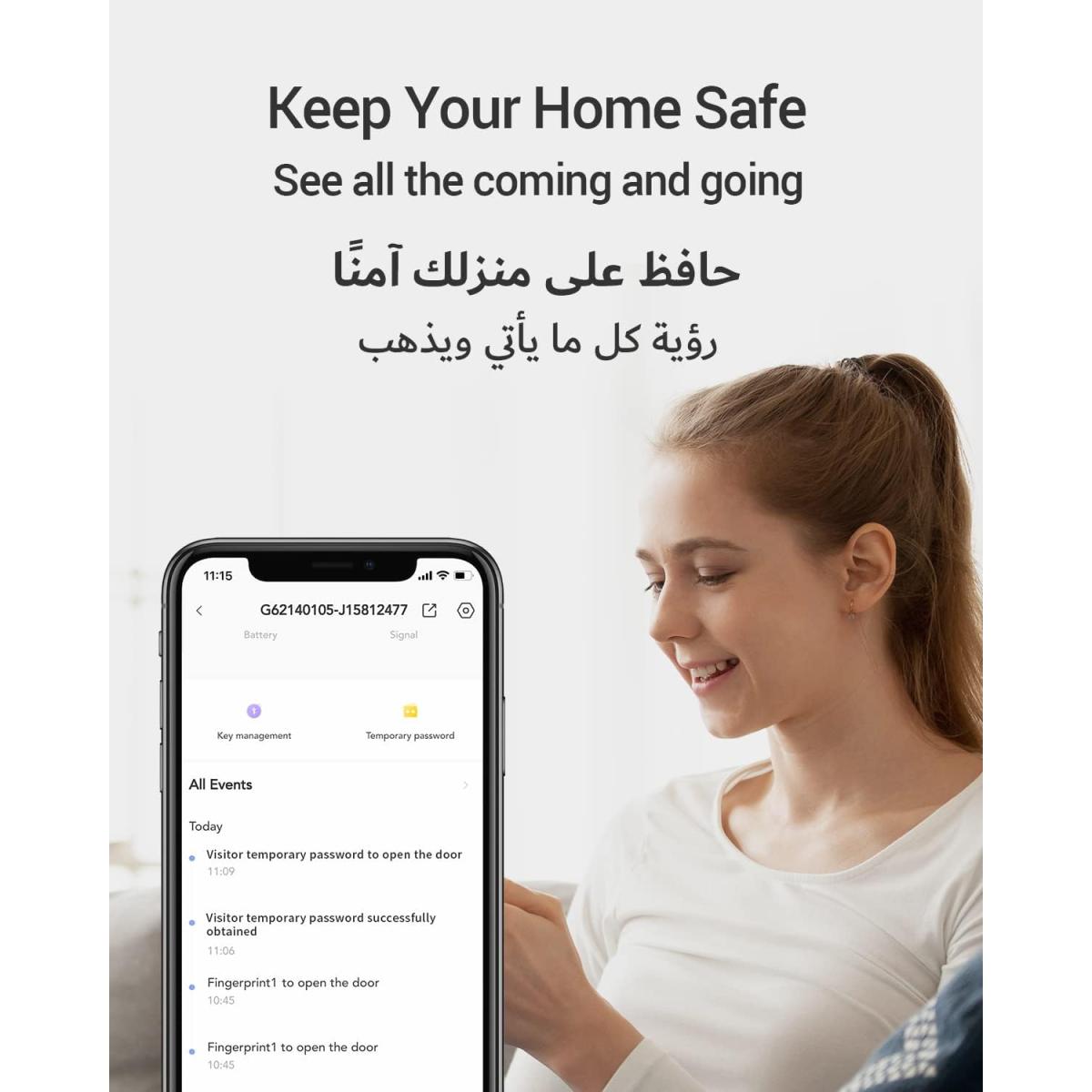

The L2S communicates using Zigbee 3.0. The official package includes a gateway for its connected functions. The EZVIZ App can manage access settings and delete existing fingerprints, passcodes or proximity cards; adding new user access is performed on the door lock panel.

Package Contents

• L2S Smart Fingerprint Lock (Front Panel + Rear Panel)
• Lock Body
• Gateway

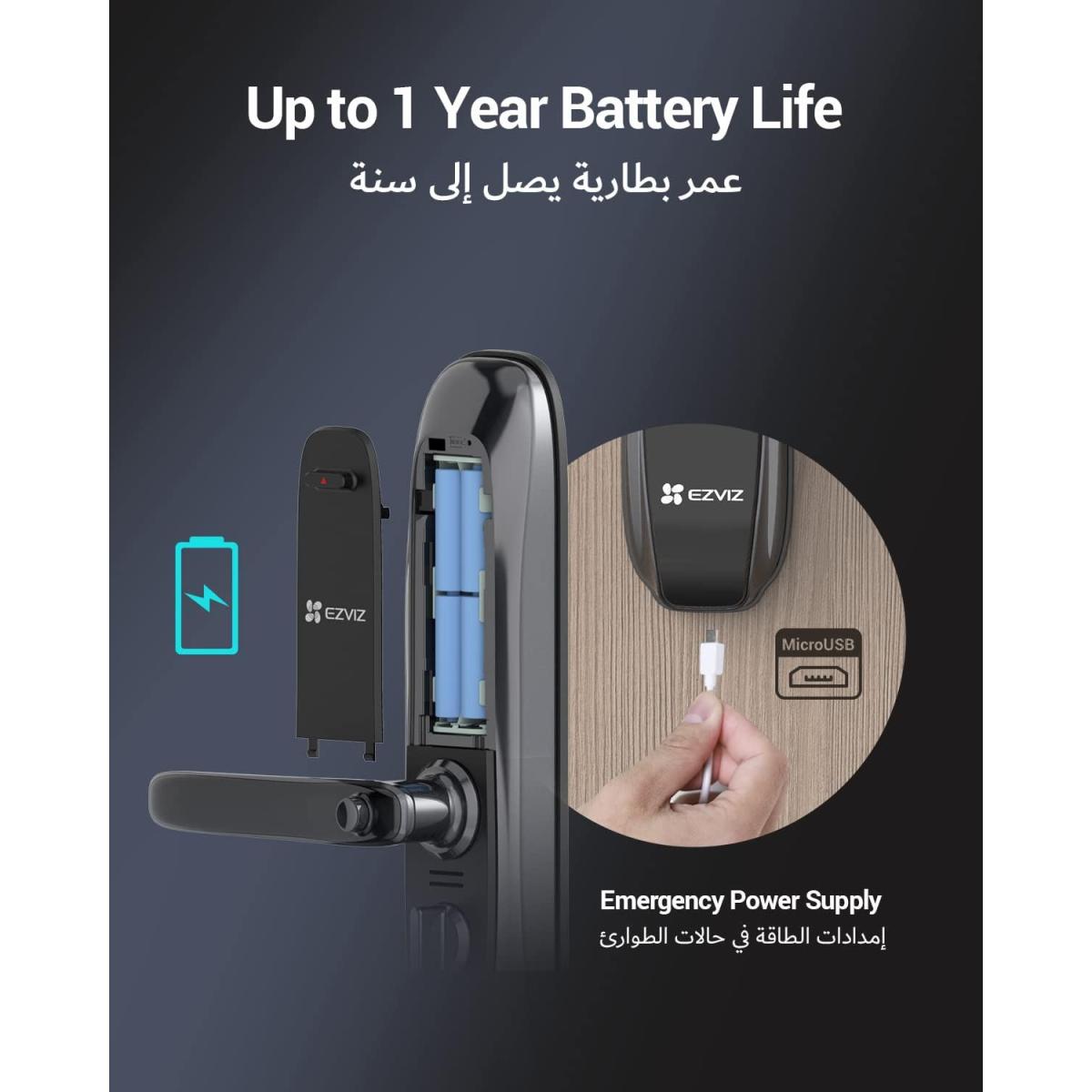

• AA Alkaline Batteries (4)
• Proximity Cards (2)
• Mechanical Keys (2)
• Square Rod
• Drilling Template
• Standard Screw Kit
• Lock Body Screw Kit
• Quick Start Guide
