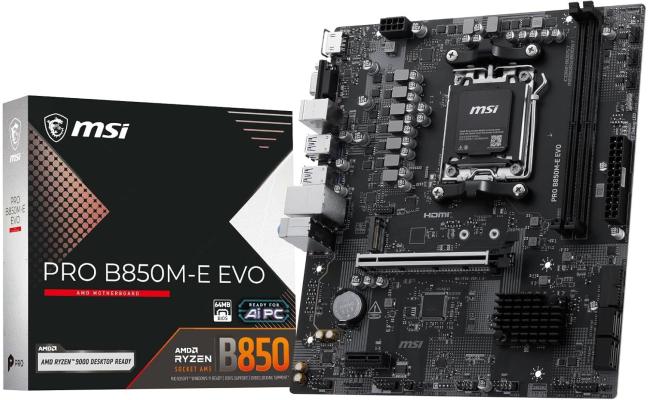

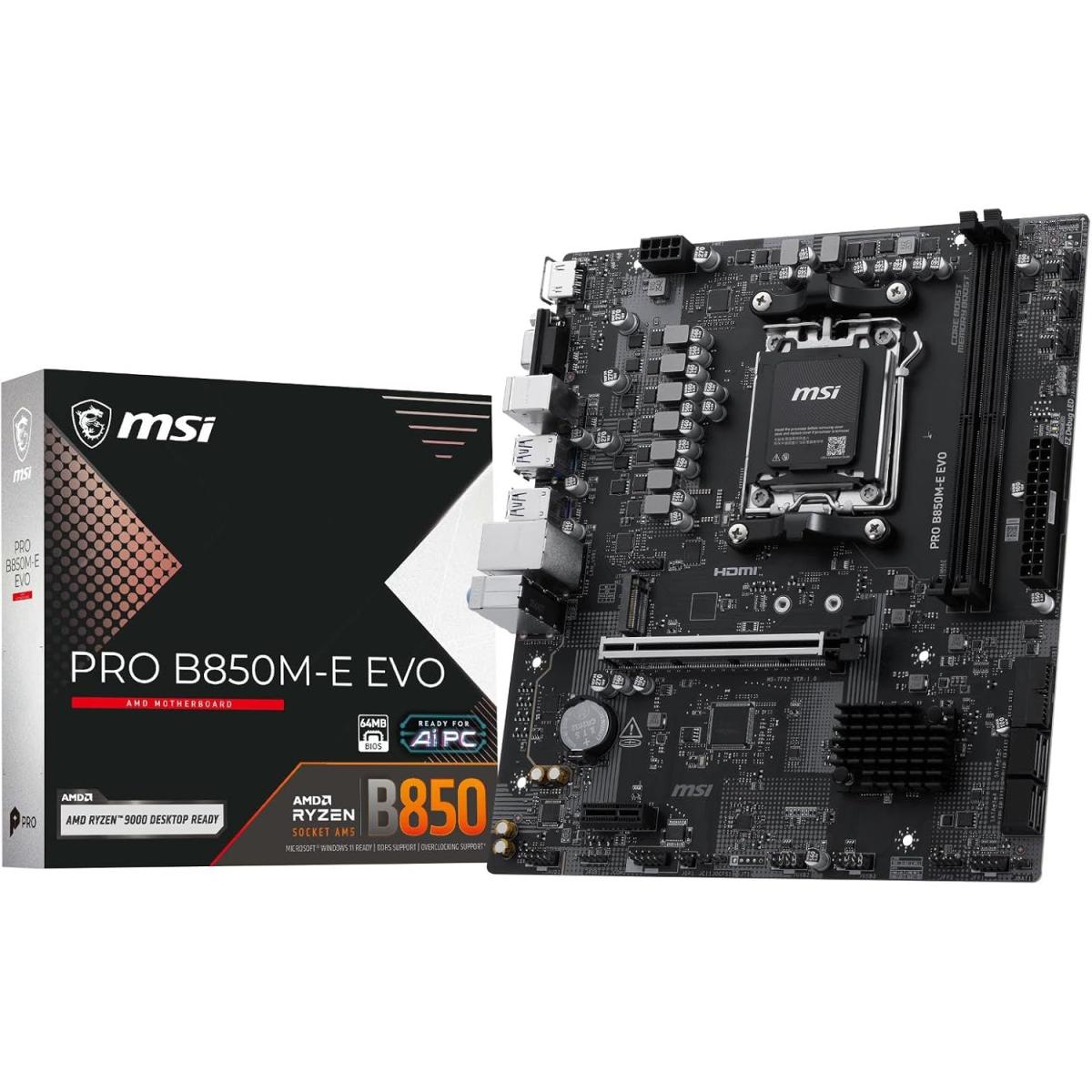

MSI PRO B850M-E EVO Micro ATX AM5 DDR5 8200MHZ(OC) HDMI VGA M.2 USB 5Gbs 2.5G LAN mATX
- • AMD B850 Platform: Socket AM5 support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors
- • DDR5 Memory: 2 slots, up to 128GB and up to 8200+ MT/s overclocked memory support
- • PCIe 5.0: PCIe 5.0 x16 graphics expansion plus 1 M.2 slot supporting up to PCIe 5.0 x4 with compatible processors
- • Storage: 1 M.2 slot plus 4 SATA 6G ports
- • Networking: Realtek 8125 2.5G LAN for high-speed wired connectivity
Share Product
- Availability:
- In Stock
- Product Code:
- PRO B850M-E EVO
- Brand:
- MSI
JOD 109.00
Chat with us on Whatsapp
Chat with us on Whatsapp - Hosting
-
Free delivery on orders Over 100 JOD
-
Cash on Delivery

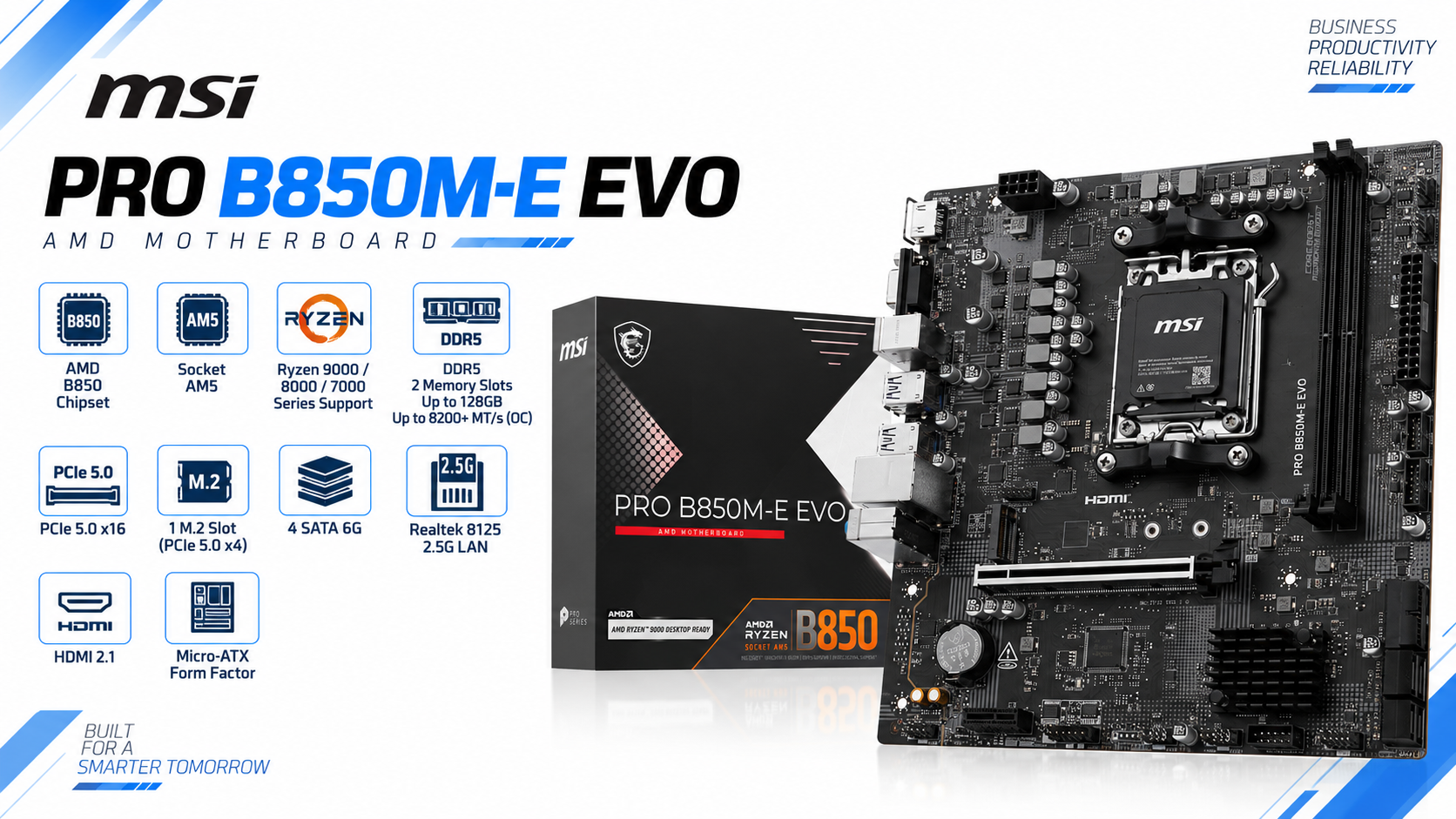

The MSI PRO B850M-E EVO is a Micro-ATX motherboard based on the AMD B850 chipset and Socket AM5, supporting AMD Ryzen 9000, 8000 and 7000 Series desktop processors. It combines two DDR5 memory slots with PCIe 5.0 expansion and a CPU-connected PCIe 5.0 x4 M.2 interface.
Designed for practical AM5 system builds, the motherboard provides Realtek 8125 2.5G LAN, four SATA 6G ports, HDMI 2.1 and VGA outputs, and USB 5Gbps connectivity. MSI also equips the board with a Direct 6+2+1 Power System with P-PAK, an 8-pin CPU power connector, PCIe Steel Armor, EZ PCIe Clip II and EZ Debug LED.
Key Features
- AMD B850 Platform: Socket AM5 support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
- DDR5 Memory: Two DDR5 slots with up to 128GB capacity and overclocked memory speeds up to 8200+ MT/s.
- PCIe 5.0 Expansion: Primary CPU-connected PCIe x16 slot supports PCIe 5.0 x16 with compatible processors.
- Gen5 M.2 Storage: One M.2 slot supporting up to PCIe 5.0 x4, plus four SATA 6G ports.
- 2.5G Networking: Realtek 8125 2.5G LAN provides high-speed wired network connectivity.
- MSI DIY Features: PCIe Steel Armor, EZ PCIe Clip II and EZ Debug LED support installation and troubleshooting.
Technical Specifications
| Component | Specification |
| Brand | MSI |
| Model | PRO B850M-E EVO |
| Chipset | AMD B850 |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Power Design | Direct 6+2+1 Power System with P-PAK |
| CPU Power | 1 × 8-pin CPU power connector |
| Memory Slots | 2 × DDR5 |
| Maximum Memory | 128GB |
| Memory Support | DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory Features | AMD EXPO, memory overclocking, Dual-Channel, Non-ECC Un-buffered memory, CUDIMM support in Clock Driver bypass mode |
| Expansion Slots | 1 × PCIe x16, 1 × PCIe x1 |
| Primary PCIe Slot | PCIe 5.0 up to x16 from CPU; generation and lane configuration depend on installed processor |
| Additional PCIe Slot | PCIe 3.0 x1 from chipset |
| M.2 Storage | 1 × M.2; up to PCIe 5.0 x4 depending on processor |
| M.2 Sizes | 2260 / 2280 |
| SATA | 4 × SATA 6G |
| SATA RAID | RAID 0 / 1 / 10 |
| LAN | Realtek 8125 2.5G LAN |
| Audio | Realtek ALC897, 7.1-Channel High Definition Audio |
| HDMI | HDMI 2.1 with HDR, up to 4K 60Hz |
| VGA | Up to 2048 × 1536 at 50Hz, 2048 × 1280 at 60Hz or 1920 × 1200 at 60Hz |
| Rear USB 5Gbps | 4 × Type-A |
| Rear USB 2.0 | 2 |
| Front USB Support | 2 × USB 5Gbps Type-A, 4 × USB 2.0 |
| RGB Headers | 1 × Addressable V2 RGB LED connector, 1 × RGB LED connector |
| Form Factor | Micro-ATX |
| Dimensions | 243.84 × 215 mm |
| Operating System | Windows 11 64-bit |
Compatibility & Important Information
- The motherboard uses Socket AM5 and supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
- The primary PCIe slot supports PCIe 5.0 x16 with Ryzen 9000 and 7000 Series processors, PCIe 4.0 x8 with Ryzen 8700, 8600 and 8400 Series processors, and PCIe 4.0 x4 with Ryzen 8500 and 8300 Series processors.
- The M.2 slot supports up to PCIe 5.0 x4 with Ryzen 9000 and 7000 Series processors and up to PCIe 4.0 x4 with Ryzen 8000 Series processors.
- Memory compatibility and supported speeds vary according to the installed processor and memory configuration.
- The HDMI and VGA motherboard video outputs require a processor featuring integrated graphics.
- This model provides Realtek 2.5G wired LAN connectivity.
| Product Specifications | |
|---|---|
| Manufacturers Link | https://www.msi.com/Motherboard/PRO-B850M-E-EVO/Specification |
| Motherboard Specifications | |
| CPU Support | AMD Ryzen IX Generation |
| CPU Socket Type | AM5 |
| Chipset | AMD B850 |
| Form Factor | Micro ATX |
| Memory Type | DDR5 |
| Memory Speed | 8200 Mhz |
| Maximum Memory | 128 GB |
| Memory Slots | 2 Slots |
| M.2 Slots | Yes |
| Wireless LAN | No |
| Warranty | |
| Warranty | 1 Year |
Q: Which processors are compatible with the MSI PRO B850M-E EVO?
A: MSI specifies support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors using Socket AM5.
Q: How much DDR5 memory does this motherboard support?
A: It has two DDR5 slots with a maximum memory capacity of 128GB and supports Dual-Channel memory, AMD EXPO and memory overclocking.
Q: What is the maximum specified DDR5 overclocked speed?
A: MSI specifies up to 8200+ MT/s with Ryzen 9000 Series processors in a 1DPC 1R configuration. Supported memory speeds vary according to the processor and memory configuration.
Q: Does the primary graphics slot support PCIe 5.0?
A: Yes. It supports PCIe 5.0 x16 with Ryzen 9000 and 7000 Series processors. Its PCIe generation and lane configuration change with Ryzen 8000 Series processors.
Q: Does the motherboard support PCIe 5.0 M.2 SSDs?
A: Yes. Its M.2 slot supports up to PCIe 5.0 x4 with Ryzen 9000 and 7000 Series processors and up to PCIe 4.0 x4 with Ryzen 8000 Series processors.
Q: How many M.2 and SATA storage connections are available?
A: The motherboard provides one M.2 slot and four SATA 6G ports.
Q: What wired networking does the MSI PRO B850M-E EVO provide?
A: It uses a Realtek 8125 2.5G LAN controller.
Q: Do the onboard HDMI and VGA outputs work with every supported processor?
A: No. MSI specifies that the onboard HDMI and VGA outputs require a processor featuring integrated graphics.
