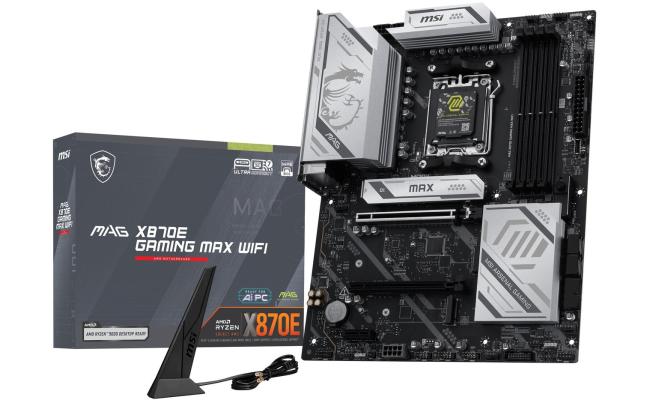

MSI MAG X870E GAMING MAX WIFI Motherboard, ATX - Supports AMD Ryzen 9000 / 8000 / 7000 Processors, AM5 - DDR5 , Wi-Fi 7, 5G LAN
- • AMD X870E Platform: Socket AM5 support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors
- • DDR5 Memory: 4 UDIMM slots, up to 256GB and up to 8200+ MT/s overclocked memory support
- • PCIe & Storage: PCIe 5.0 x16 plus 3 M.2 slots including 1 supporting up to PCIe 5.0 x4
- • Networking: Wi-Fi 7, Bluetooth 5.4 and Realtek 8126 5G LAN
- • USB Connectivity: Rear USB 40Gbps Type-C and USB 20Gbps Type-C plus front USB 10Gbps Type-C support
Share Product
- Availability:
- In Stock
- Product Code:
- X870E GAMING MAX WIFI
- Brand:
- MSI
JOD 249.00
Chat with us on Whatsapp
Chat with us on Whatsapp - Hosting
-
Free delivery on orders Over 100 JOD
-
Cash on Delivery

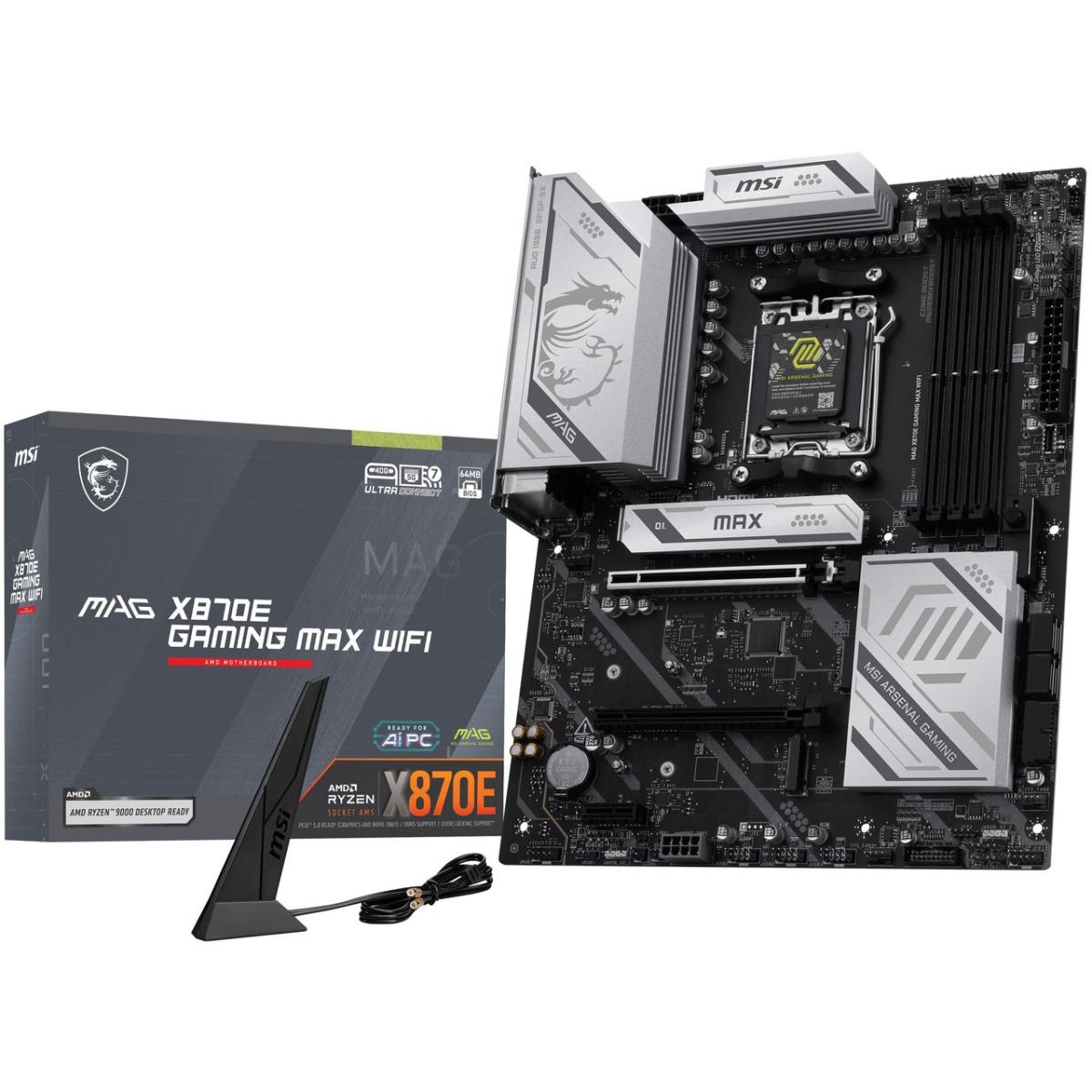

The MSI MAG X870E GAMING MAX WIFI is an ATX motherboard based on the AMD X870E chipset and Socket AM5, supporting AMD Ryzen 9000, 8000 and 7000 Series desktop processors. It combines DDR5 memory support with PCIe 5.0 expansion, three M.2 storage slots and a 12+2+1 Duet Rail Power System with 60A Smart Power Stage.
Connectivity includes Wi-Fi 7, Bluetooth 5.4, Realtek 8126 5G LAN and rear USB connectivity up to 40Gbps. MSI also equips the board with Extended Heatsink Design, a PCIe 5.0 M.2 slot, EZ M.2 Shield Frozr II, EZ PCIe Release, Flash BIOS and Clear CMOS controls.
Key Features
- AMD X870E Platform: Socket AM5 support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
- DDR5 Memory: Four DDR5 UDIMM slots with up to 256GB capacity and overclocked memory speeds up to 8200+ MT/s.
- PCIe 5.0 Expansion: Primary CPU-connected PCIe x16 slot supports PCIe 5.0 x16 with compatible Ryzen processors.
- M.2 Storage: Three M.2 slots including one supporting up to PCIe 5.0 x4, plus four SATA 6G connectors.
- High-Speed Networking: Realtek 8126 5G LAN, Wi-Fi 7 and Bluetooth 5.4.
- USB Connectivity: Rear USB 40Gbps Type-C and USB 20Gbps Type-C plus front USB 10Gbps Type-C support.
Technical Specifications
| Component | Specification |
| Brand | MSI |
| Model | MAG X870E GAMING MAX WIFI |
| Chipset | AMD X870E |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors |
| Power Design | 12+2+1 Duet Rail Power System, 60A Smart Power Stage |
| Memory Slots | 4 × DDR5 UDIMM |
| Maximum Memory | 256GB |
| Memory Support | DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s |
| Memory Features | AMD EXPO, memory overclocking, Dual-Channel, Non-ECC Un-buffered memory, CUDIMM support in Clock Driver bypass mode |
| Expansion Slots | 2 × PCIe x16, 1 × PCIe x1 |
| Primary PCIe Slot | PCIe 5.0 x16 from CPU; generation and lane configuration depend on installed processor |
| Additional PCIe Slots | 1 × PCIe 4.0 x4, 1 × PCIe 3.0 x1 |
| M.2 Storage | 3 × M.2; M.2_1 up to PCIe 5.0 x4, M.2_2 and M.2_3 up to PCIe 4.0 x4 |
| SATA | 4 × SATA 6G |
| RAID | RAID 0 / 1 / 5 / 10 for SATA; RAID 0 / 1 / 5 for M.2 NVMe |
| LAN | Realtek 8126 5G LAN |
| Wi-Fi | Wi-Fi 7, 2.4 GHz / 5 GHz / 6 GHz, 160 MHz, up to 2.9Gbps |
| Bluetooth | Bluetooth 5.4 |
| Audio | Realtek ALC897, 7.1-Channel High Definition Audio |
| HDMI | 1 × HDMI TMDS 2.1, up to 4K 60Hz |
| USB4 Display Output | DisplayPort 1.4 HBR3 over USB Type-C, up to 4K 120Hz |
| Rear USB 40Gbps | 1 × Type-C |
| Rear USB 20Gbps | 1 × Type-C |
| Rear USB 10Gbps | 2 × Type-A |
| Rear USB 5Gbps | 2 × Type-A |
| Rear USB 2.0 | 4 |
| Front USB Support | 1 × USB 10Gbps Type-C, 4 × USB 5Gbps Type-A, 6 × USB 2.0 |
| Form Factor | ATX |
| Dimensions | 304.8 × 243.84 mm |
| Operating System | Windows 11 64-bit |
Compatibility & Important Information
- The motherboard uses Socket AM5 and supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
- Memory compatibility and supported speeds vary according to the installed processor, memory modules and DIMM configuration.
- The primary PCIe slot supports PCIe 5.0 x16 with Ryzen 9000 and 7000 Series processors, PCIe 4.0 x8 with Ryzen 8700, 8600 and 8400 Series processors, and PCIe 4.0 x4 with Ryzen 8500 and 8300 Series processors.
- M.2_1 supports up to PCIe 5.0 x4 with Ryzen 9000 and 7000 Series processors and up to PCIe 4.0 x4 with Ryzen 8000 Series processors.
- The onboard HDMI output requires a processor featuring integrated graphics. USB-C DisplayPort graphics capabilities vary according to the installed processor.
- RAID 5 for M.2 NVMe storage is supported with Ryzen 9000 and 7000 Series processors.
- 6 GHz Wi-Fi availability depends on local regulations. MSI specifies Windows 11 version 24H2 readiness for Wi-Fi 7 and Bluetooth 5.4.
| Product Specifications | |
|---|---|
| Manufacturers Link | https://www.msi.com/Motherboard/MAG-X870E-GAMING-MAX-WIFI |
| Motherboard Specifications | |
| CPU Support | AMD Ryzen IX Generation |
| CPU Socket Type | AM5 |
| Chipset | AMD X870 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Speed | 8200 Mhz |
| Maximum Memory | 256 GB |
| Memory Slots | 4 Slots |
| M.2 Slots | Yes |
| Wireless LAN | Yes |
| Warranty | |
| Warranty | 1 Year |
Q: Which processors are compatible with the MSI MAG X870E GAMING MAX WIFI?
A: MSI specifies support for AMD Ryzen 9000, 8000 and 7000 Series desktop processors using Socket AM5.
Q: How much DDR5 memory does this motherboard support?
A: It has four DDR5 UDIMM slots with a maximum memory capacity of 256GB and supports AMD EXPO and memory overclocking.
Q: What is the maximum specified DDR5 overclocked speed?
A: MSI specifies up to 8200+ MT/s with Ryzen 9000 Series processors in a 1DPC 1R configuration. Supported speed varies according to the processor and memory configuration.
Q: Does it support PCIe 5.0 graphics cards?
A: The primary PCIe slot supports PCIe 5.0 x16 with Ryzen 9000 and 7000 Series processors. Ryzen 8000 Series processors use different PCIe generation and lane configurations depending on the processor.
Q: How many M.2 SSD slots are available?
A: There are three M.2 slots. M.2_1 supports up to PCIe 5.0 x4 with compatible processors, while M.2_2 and M.2_3 support up to PCIe 4.0 x4.
Q: Does the motherboard include Wi-Fi and Bluetooth?
A: Yes. MSI specifies Wi-Fi 7 supporting 2.4 GHz, 5 GHz and 6 GHz bands, together with Bluetooth 5.4.
Q: Does the motherboard have USB4 connectivity?
A: Yes. The rear panel includes one USB 40Gbps Type-C port with DisplayPort 1.4 HBR3 support.
Q: Does the onboard HDMI output work with every supported processor?
A: No. MSI specifies that the onboard HDMI output requires a processor featuring integrated graphics.
