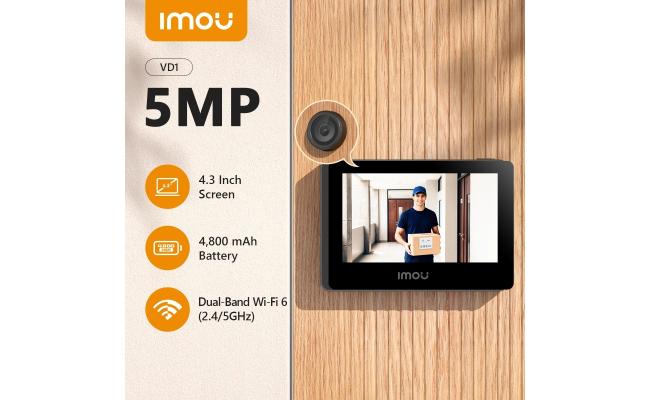

IMOU VD1 5MP Smart Wi-Fi Door Viewer with 4.3-inch Screen

The IMOU VD1 is a smart digital door viewer that upgrades a traditional peephole with a 5MP camera and a 4.3-inch indoor color screen. Its 2880 × 1620 resolution and 149° diagonal field of view provide a wide view of the area outside the door while retaining a discreet exterior appearance.

VD1 combines dual-band Wi-Fi connectivity, AOV human detection, configurable privacy zones, local microSD recording, and a 4800 mAh rechargeable battery. It is designed for compatible doors from 35 to 102 mm thick with peephole openings from 14 to 26 mm.

Key Features

• 5MP Door Camera: Captures video at up to 2880 × 1620 resolution through a 2.3 mm wide-angle lens.
• 4.3-inch Indoor Screen: Provides an immediate indoor view of visitors without requiring a phone.
• 149° Wide View: Offers a broad diagonal field of view for monitoring the area outside the door.
• AOV Human Detection: Always-on Video mode enables human and loitering detection with automatic recording.
• Dual-Band Wi-Fi: Supports 2.4 GHz and 5 GHz wireless connectivity for use with the IMOU app.
• Up to 512 GB Local Storage: Supports microSD cards for local snapshots and recordings.

Technical Specifications

Compatibility & Important Information

• Door Compatibility: Designed for doors 35 to 102 mm thick with peephole openings from 14 to 26 mm.
• Human Detection: Human detection requires AOV Mode to be enabled. Without AOV Mode, the device does not actively perform image detection, snapshots, or storage.
• AOV Operation: When AOV Mode is enabled, the device performs human detection and stores video automatically; manual snapshot and recording functions are unavailable in this mode.
• Battery Operation: IMOU specifies up to 14 days with AOV Mode enabled and up to 150 days in Manual Snapshot mode under its stated operating conditions.
• Local Storage: Supports microSD cards up to 512 GB. The memory card is not included.

Package Contents

• 1× Camera
• 1× 4.3-inch LCD Screen
• 1× Installation Rack
• 2× Color Rings
• 1× Screw Package
• 1× USB-C Cable
• 1× Sticker
• 1× Regulatory Information
• 1× Quick Start Guide
