Lenovo ThinkSystem SR650 V3 Intel Xeon Gold 6430 32-Core Processor Option Kit 4XG7A82861

The Lenovo ThinkSystem SR650 V3 Intel Xeon Gold 6430 Processor Option Kit is a server processor upgrade designed for the Lenovo ThinkSystem SR650 V3. It provides 32 cores and 64 threads with a 2.1 GHz base frequency and up to 3.4 GHz maximum single-core frequency.

Part number 4XG7A82861 is based on the 4th Gen Intel Xeon Scalable platform and supports DDR5 memory, PCIe 5.0 connectivity and multi-processor communication through Intel UPI. The processor has a 270 W TDP and the Lenovo option kit includes a heatsink but does not include a system fan.

Key Features

• Intel Xeon Gold 6430: 4th Gen Intel Xeon Scalable processor for Lenovo ThinkSystem SR650 V3.
• 32 Cores / 64 Threads: High core and thread count for server computing workloads.
• 2.1 GHz Base Frequency: Supports a maximum single-core frequency of up to 3.4 GHz.
• 60 MB L3 Cache: Integrated processor cache for server workloads.
• DDR5 Platform: Supports a maximum memory speed of 4400 MHz with eight DDR5 memory channels.
• PCIe 5.0: Provides 80 PCIe 5.0 I/O lanes.

Technical Specifications

Compatibility & Important Information

• Designed as a processor option for the Lenovo ThinkSystem SR650 V3.
• The Lenovo SR650 V3 supports one or two 4th Gen Intel Xeon Scalable processors; Lenovo specifies that single-processor configurations are not supported for these processor options.
• The processor option kit includes a heatsink but does not include a system fan.
• Lenovo lists a maximum supported quantity of two for part number 4XG7A82861 in the ThinkSystem SR650 V3.
• Check the existing server configuration and Lenovo configuration requirements before installation or processor expansion.

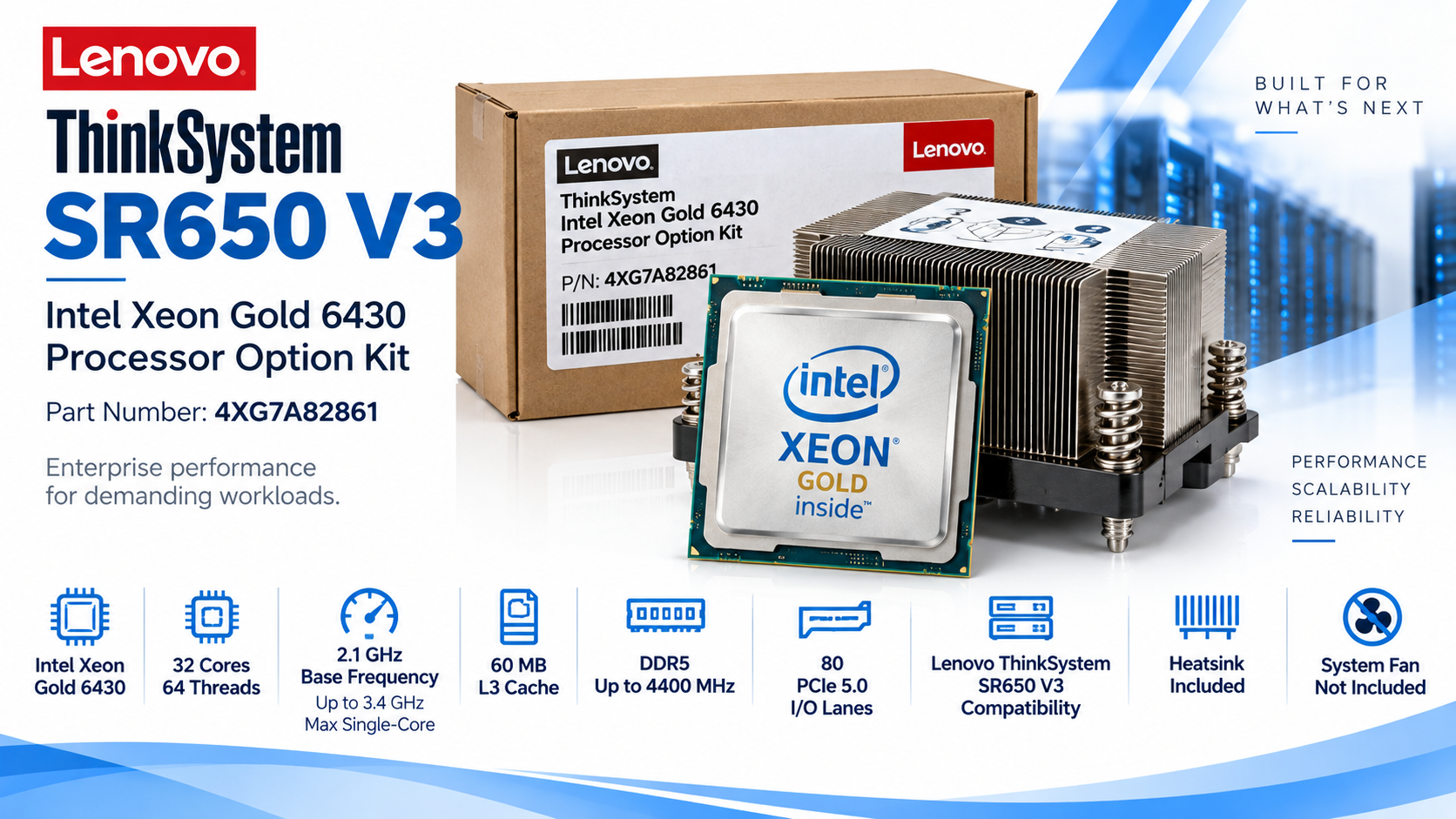

Package Contents

• Intel Xeon Gold 6430 processor option
• Processor heatsink
