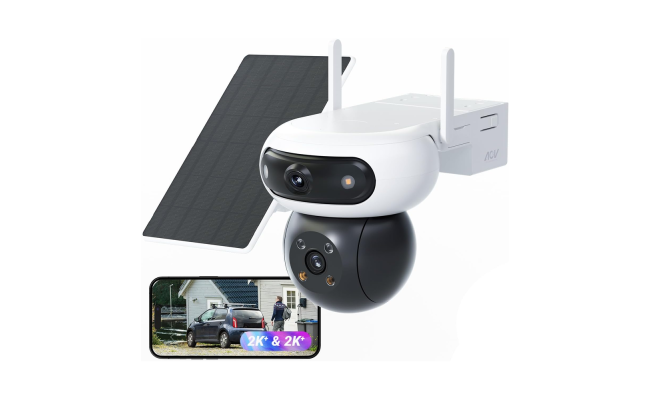

EZVIZ CB90 Dual Kit Dual-Lens 2K⁺ Outdoor Battery Wi-Fi 6 Camera with 8W Solar Panel – AI Human & Vehicle Detection, Smart Tracking, 10,400mAh (CS-CB90/SP 4MP+4MP)

The EZVIZ CB90 Dual Kit combines a dual-lens outdoor battery camera with an included 8W solar panel for flexible property monitoring without a permanent wired power connection. Both camera lenses capture video at up to 2560 × 1440 resolution, allowing the system to monitor a wide area while simultaneously focusing on important details.

The upper 2.8 mm wide-angle lens and lower 6 mm close-up lens use three motors for independent and coordinated movement. AI-powered human- and vehicle-shape detection, co-detection smart tracking, Always-On Video Mode 2.0, full-color night vision, two-way talk, active defense, Wi-Fi 6, and a 10,400mAh rechargeable battery provide comprehensive outdoor monitoring.

AI Summary

The EZVIZ CB90 Dual Kit combines two 4MP 2K⁺ lenses with an included 8W solar panel.

Its wide-angle and close-up cameras use three motors for independent views and coordinated human tracking.

AOV 2.0, AI human and vehicle detection, a 10,400mAh battery, and Wi-Fi 6 support intelligent all-day monitoring.

Color night vision up to 35 meters, two-way talk, active defense, IP65 protection, and microSD support add practical outdoor security.

Feature Highlights

Key Features

• Dual 4MP Cameras: Both lenses record at a maximum resolution of 2560 × 1440.
• Wide-Angle Upper Lens: The 2.8 mm f/1.2 lens provides a 110-degree diagonal field of view.
• Close-Up Lower Lens: The 6 mm f/1.2 lens provides a narrower 60-degree diagonal view for focused details.
• Independent Lens Rotation: The upper lens supports 220-degree pan and 10-degree tilt, while the lower lens supports 324-degree pan and 90-degree tilt.
• Linked View Control: Users can select an area in the wide-angle view to direct the close-up lens toward the same location.
• Co-Detection Smart Tracking: The upper lens detects a moving person and the lower lens rotates to follow the activity.
• AI Human Detection: Both lenses support human-shape detection without a detection subscription.
• AI Vehicle Detection: Both lenses support vehicle-shape detection without a detection subscription.
• Always-On Video Mode 2.0: Captures images at preset intervals and switches to normal-speed video during detected activity.
• 10,400mAh Battery: Provides rechargeable battery operation for flexible outdoor installation.
• 8W Solar Panel: Includes a monocrystalline panel with a 3-meter USB Type-C cable.
• Wi-Fi 6: Supports 2.4GHz IEEE 802.11ax wireless connectivity.
• Color Night Vision: Two built-in spotlights provide full-color nighttime monitoring.
• Infrared Night Vision: Two IR lights provide black-and-white monitoring at distances up to 35 meters.
• Balanced Image Exposure: Smart-light adjustment helps create more evenly exposed nighttime footage.
• Two-Way Talk: Supports remote voice communication through the EZVIZ App.
• Recorded Voice Message: Can automatically play a recorded message after motion detection.
• Active Defense: Uses a siren and two flashing spotlights to deter intruders.
• Weather Protection: Both the camera and solar panel carry an IP65 rating.
• Flexible Storage: Supports microSD cards up to 512GB and EZVIZ CloudPlay where available.

Performance & Experience

The CB90 Dual uses two 1/3-inch 4-megapixel progressive-scan CMOS sensors. The upper 2.8 mm lens captures a broad 110-degree diagonal view, while the lower 6 mm lens provides a more focused 60-degree diagonal view. This arrangement allows users to observe the overall scene and a selected close-up area at the same time.

Three internal motors control the dual cameras. The upper lens provides 220-degree horizontal adjustment and 10-degree tilt, while the lower camera offers 324-degree pan and 90-degree tilt. The lenses can be controlled separately through the EZVIZ App or coordinated for linked viewing and human tracking.

Always-On Video Mode 2.0 captures interval-based images during periods without activity and processes them into time-lapse footage. When an event is detected, the camera switches to normal-speed recording. A compatible microSD card is required for this function.

Each lens records at up to 15 frames per second. H.264 and H.265 compression, adaptive bitrate control, 3D digital noise reduction, dual-stream operation, and balanced smart lighting support efficient recording and viewing.

Why Choose This Product?

• Two independent 2K⁺ camera views in one system.
• Wide-angle and close-up monitoring at the same time.
• Three motors for flexible dual-camera movement.
• Co-detection automatic human tracking.
• AI human- and vehicle-shape detection on both lenses.
• AOV 2.0 all-day interval recording.
• Included 8W solar panel.
• High-capacity 10,400mAh rechargeable battery.
• Color and infrared night vision up to 35 meters.
• Wi-Fi 6 wireless connectivity.
• Two-way talk and recorded voice alerts.
• Siren and strobe-light active defense.

Technical Specifications

Connectivity

Package Contents

• EZVIZ CB90 Dual Camera
• EZVIZ 8W Solar Panel
• Drilling Template
• Adjustable Mounting Bracket
• Screw Kits ×2
• Power Cable
• Regulatory Information Documents ×4
• Quick Start Guides ×2

Ideal For

• Large home entrances
• Driveways and parking areas
• Front and rear property monitoring
• Gardens and backyards
• Farms and remote buildings
• Garages and workshops
• Small businesses and warehouses
• Locations without convenient mains power

Who Should Buy This?

The EZVIZ CB90 Dual Kit is suitable for users who need wide-area and close-up monitoring from a single solar-powered camera system. It is particularly useful for larger outdoor spaces where dual viewing angles, automatic tracking, intelligent detection, all-day interval recording, and flexible battery-powered installation are important.
