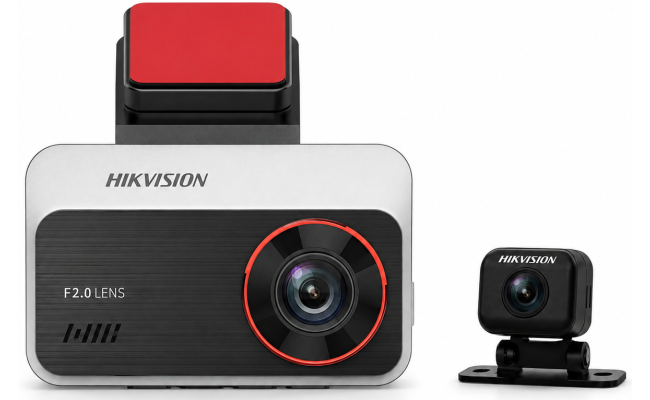

Hikvision AE-DC2328-C200S 2-Channel 1080P Front & Rear Dash Camera

The Hikvision AE-DC2328-C200S(2CH) is a dual-channel vehicle dash camera designed to record both front and rear views. With the rear camera connected, it records the front view at 1080P at 30 fps and the rear view at 1080P at 25 fps for Full HD coverage of the road ahead and behind.

A 3-inch IPS screen provides direct operation, while built-in Wi-Fi connects the camera to the HikDashcam mobile app for live view, recording playback and parameter configuration. The camera also features H.264 video compression, a built-in G-sensor, audio recording and TF / microSD card storage from 16 GB to 256 GB.

Key Features

• Dual-Channel Full HD Recording: Front 1080P at 30 fps plus rear 1080P at 25 fps.
• 3-inch IPS Screen: Built-in 360 x 640 display for direct camera operation.
• Wi-Fi & HikDashcam: Supports mobile live view, recording playback and parameter configuration.
• Built-in G-Sensor: Supports collision or strong-vibration triggered recording and recording lock.
• 16 GB to 256 GB Storage: Records to a compatible TF / microSD memory card with overwrite support.
• F2.0 Lens: Front camera uses an F2.0 aperture for vehicle recording.

Technical Specifications

Compatibility & Important Information

• This listing is specifically for the AE-DC2328-C200S(2CH) configuration identified in Hikvision's official firmware support.
• With the rear camera connected, the front channel records at 1080P at 30 fps and the rear channel records at 1080P at 25 fps.
• The AE-DC2328-C200S does not include GPS functionality.
• The camera supports TF / microSD cards from 16 GB to 256 GB. Hikvision recommends a Class 10 or higher card for stable data transmission.
• The rear-camera installation instructions include connecting the rear-camera red cable to the vehicle reversing-light power cable.
• The USB Type-C connection is used for power. Hikvision specifies that the supplied power cable does not support data transmission.
• Parking mode is documented by Hikvision as an optional function, so availability depends on the applicable installation and configuration.
