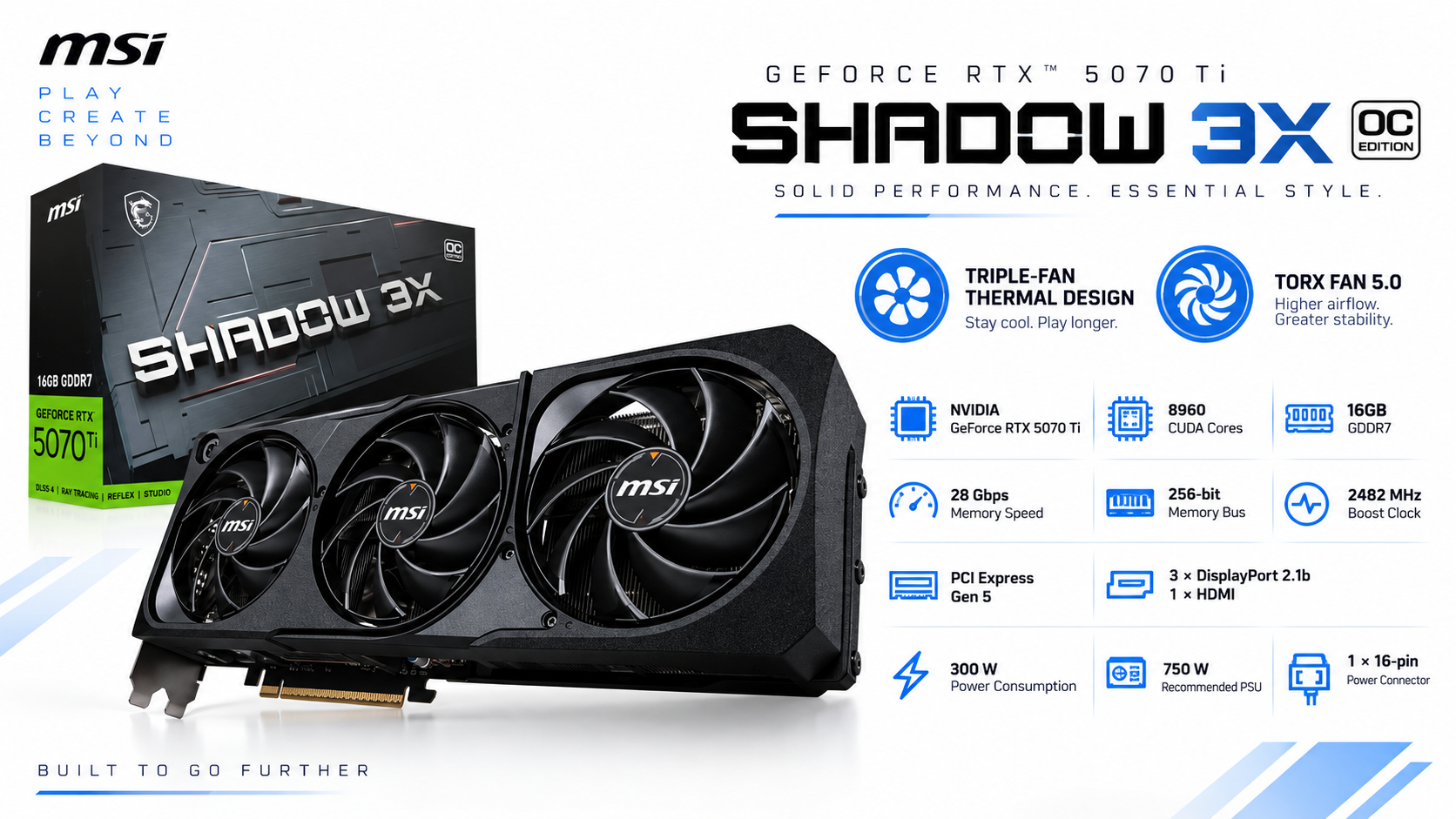

MSI GeForce RTX 5070 Ti SHADOW 3X OC 16GB GDDR7 256-Bit Memory, 2482 MHz Boost Clocks, 8960 CUDA Cores, 28 Gbps Memory Speed, PCI Express Gen 5

The MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC is an NVIDIA GeForce RTX 5070 Ti graphics card with 16GB of GDDR7 memory and a 256-bit memory bus. Its factory-overclocked configuration reaches a 2482 MHz boost clock, with an Extreme Performance setting of 2497 MHz through MSI Center.

The card combines a triple-fan thermal design with TORX FAN 5.0, a nickel-plated copper baseplate, Core Pipes and a reinforcing backplate. It uses a PCI Express Gen 5 interface and provides three DisplayPort 2.1b outputs plus one HDMI output for up to four displays.

Key Features

• GeForce RTX 5070 Ti: NVIDIA GPU with 8960 CUDA cores and PCI Express Gen 5 interface.
• 16GB GDDR7: 28 Gbps graphics memory with a 256-bit memory bus.
• Factory Overclocked: 2482 MHz boost clock and up to 2497 MHz Extreme Performance through MSI Center.
• Triple-Fan Cooling: Three-fan thermal design with TORX FAN 5.0, nickel-plated copper baseplate and Core Pipes.
• Display Connectivity: Three DisplayPort 2.1b outputs and one HDMI output with support for up to four displays.
• Reinforcing Backplate: Reinforced rear structure with an airflow vent for exhaust air.

Technical Specifications

Compatibility & Important Information

• The graphics card measures 303 × 121 × 49 mm; check available graphics card clearance in the PC case before installation.
• MSI specifies 300 W graphics card power consumption and recommends a 750 W power supply.
• The card uses one 16-pin power connector, and MSI recommends an ATX 3.1 power supply.
• The card uses a PCI Express Gen 5 interface.
• Maximum supported display configuration is four displays, using three DisplayPort 2.1b outputs and one HDMI output.
• MSI identifies this model as an SFF-Ready Enthusiast GeForce Card; case compatibility should still be checked before installation.

Package Contents

• Graphics card support stand
