ASUS TUF Gaming 1200W Gold EVO 1200 W Fully Modular ATX 3.1 Power Supply

The ASUS TUF Gaming 1200W Gold EVO is a 1200 W fully modular power supply designed for high-power gaming and performance desktop systems. It complies with the ATX 3.1 standard, supports PCIe 5.1 graphics cards and provides a native 16-pin 12V-2x6 connection alongside conventional PCIe power connectors.

Built around TUF durability features, the PSU combines military-grade components, a protective PCB coating, a 135 mm dual-ball-bearing fan and upgraded PCIe connectors with superior copper pins. It carries 80 PLUS Gold and Cybenetics Platinum efficiency certifications, plus Cybenetics Lambda A- noise certification.

Key Features

• 1200 W Power Output: Provides up to 1200 W total output with a 100 A, 1200 W +12 V rail.
• ATX 3.1 & PCIe 5.1: Designed for current high-power PC platforms and compatible PCIe 5.1 graphics cards.
• Native 12V-2x6: Includes a PCIe Gen 5.1 16-pin-to-16-pin cable for the PSU's 12V-2x6 connection.
• Certified Efficiency: 80 PLUS Gold and Cybenetics Platinum efficiency certifications.
• TUF Durability: Military-grade components, protective PCB coating and superior copper pins support long-term reliability.
• 135 mm Dual-Ball-Bearing Fan: Durable cooling design with Cybenetics Lambda A- noise certification.

Technical Specifications

Compatibility & Important Information

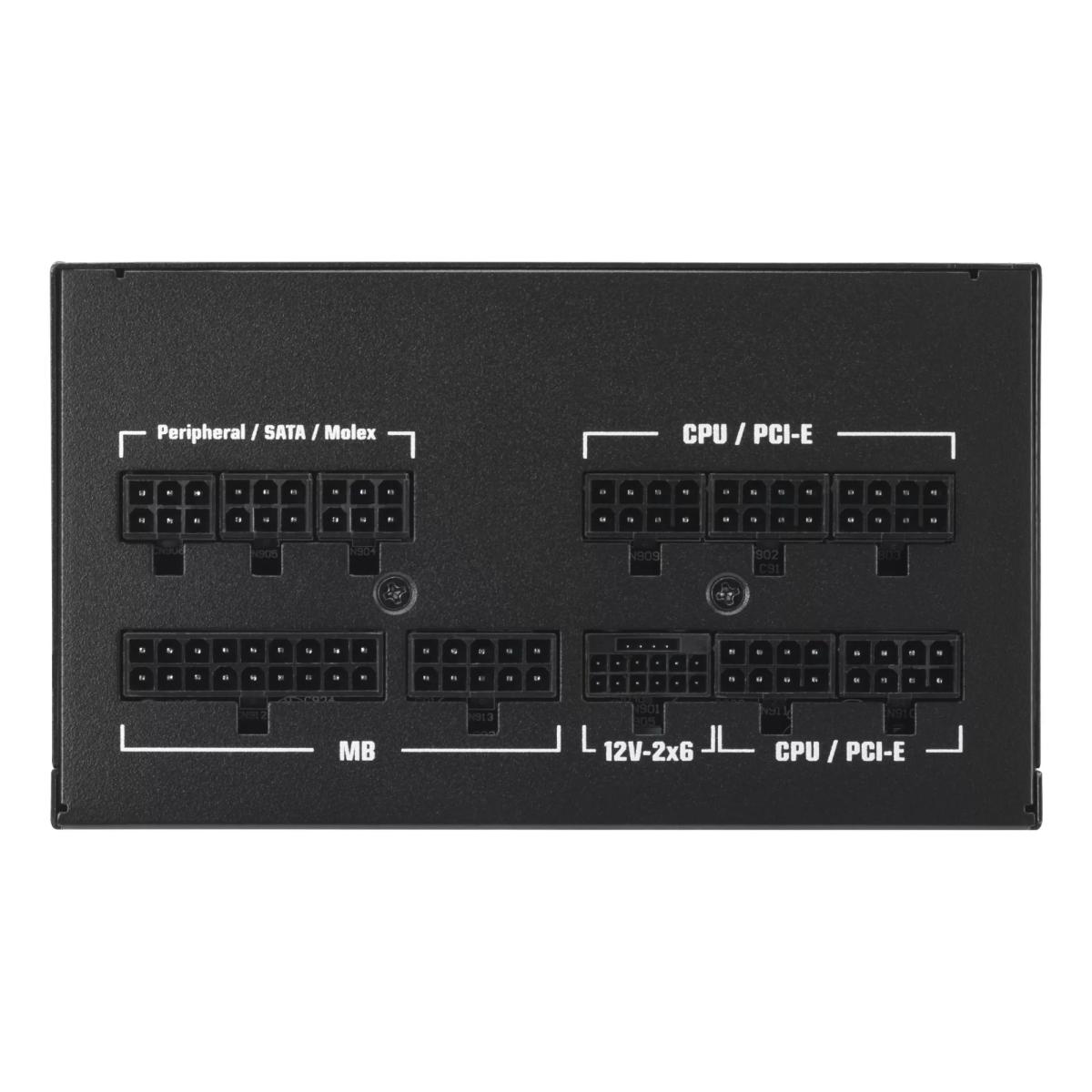

The TUF Gaming 1200W Gold EVO complies with ATX 3.1 and supports PCIe 5.1 graphics cards. Its native PCIe 16-pin connection uses the 12V-2x6 format, while three PCIe 6+2-pin connectors are available for compatible graphics and expansion hardware.

The PSU measures 150 × 150 × 86 mm. Case compatibility should account for these dimensions as well as the space required for connected modular power cables.

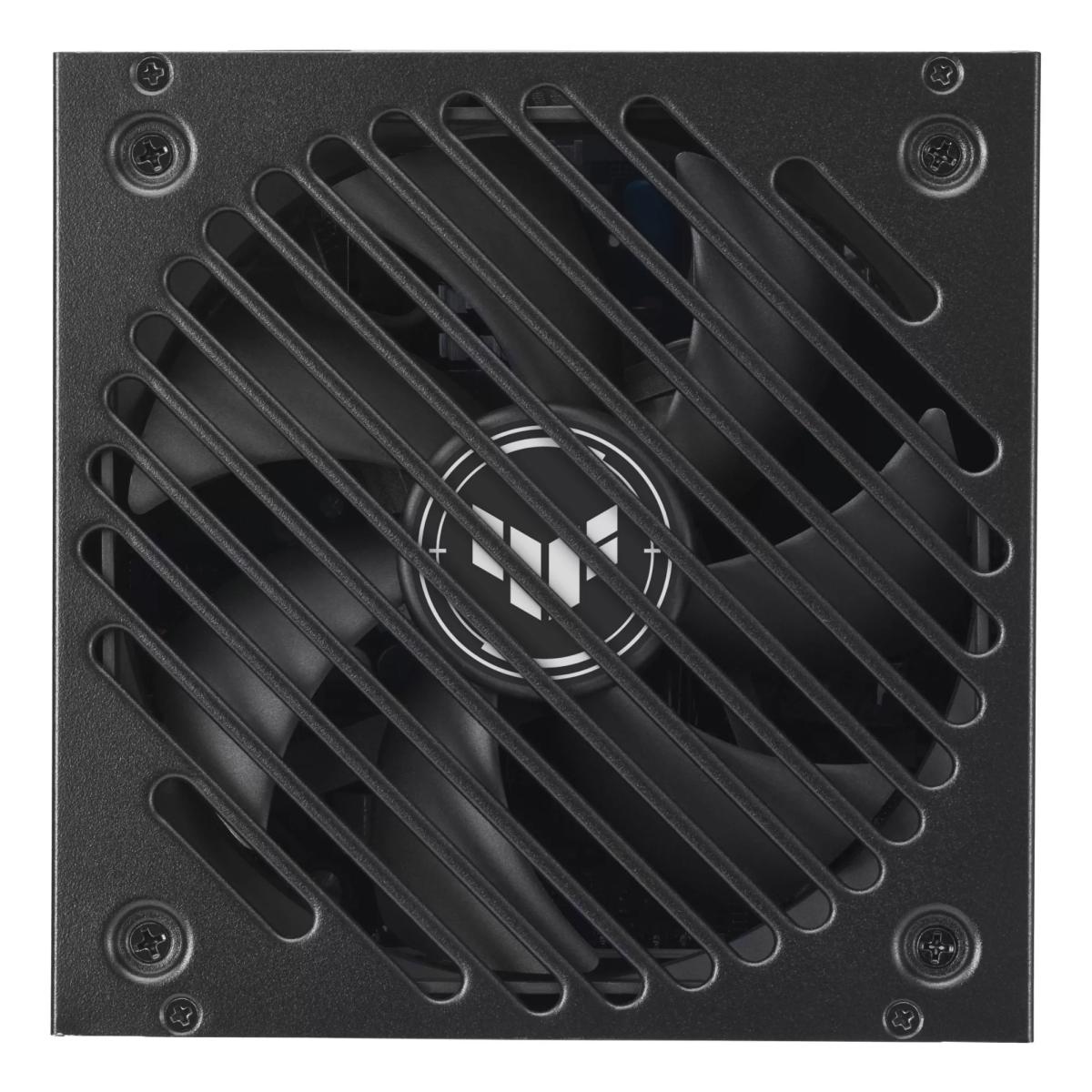

This model does not use 0dB fan technology. ASUS specifies a 135 mm dual-ball-bearing fan and Cybenetics Lambda A- noise certification.

Package Contents

• 1 × Power Cord
• 1 × 610 mm Motherboard Power Cable
• 2 × 750 mm CPU Cables
• 1 × 500 mm PCIe Gen 5.1 16-Pin-to-16-Pin Cable
• 3 × 500 mm PCIe 8-Pin-to-6+2-Pin Cables
• 2 × SATA 1-to-3 Cables
• 1 × Peripheral 1-to-3 Cable
• 3 × TUF Gaming Cable Ties
• 1 × Chassis Screws Package
• 1 × User Manual
