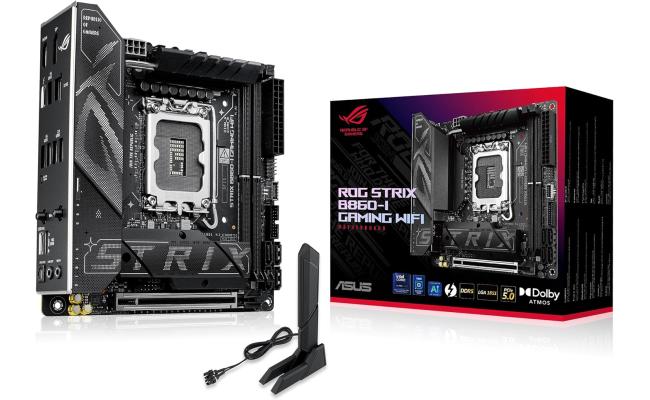

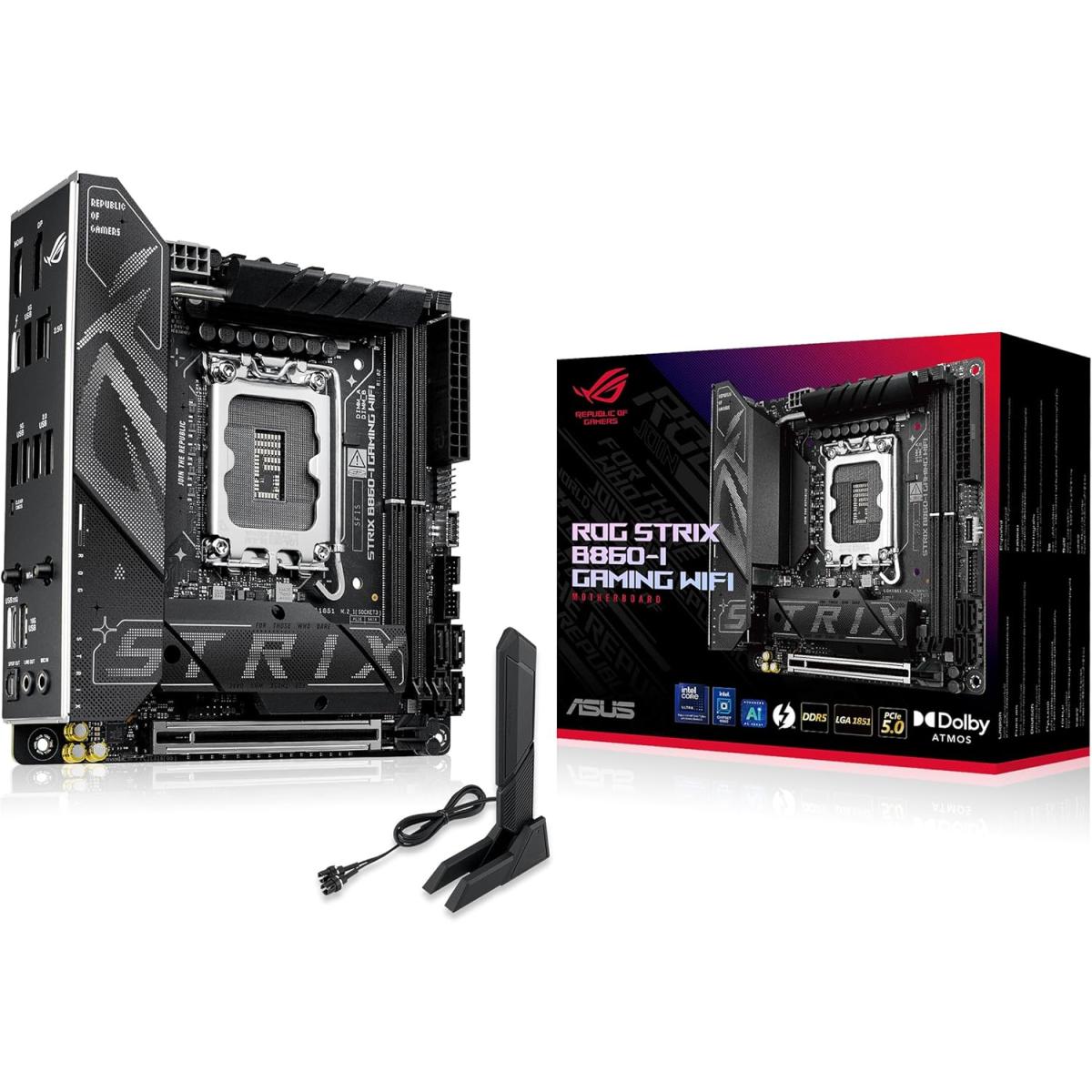

ASUS ROG STRIX B860-I GAMING WIFI B860 LGA 1851 mITX , 10+1+2+1 stage, DDR5, 2.5G LAN, WiFi7, M.2, Thunderbolt™ 4, USB Type-C®

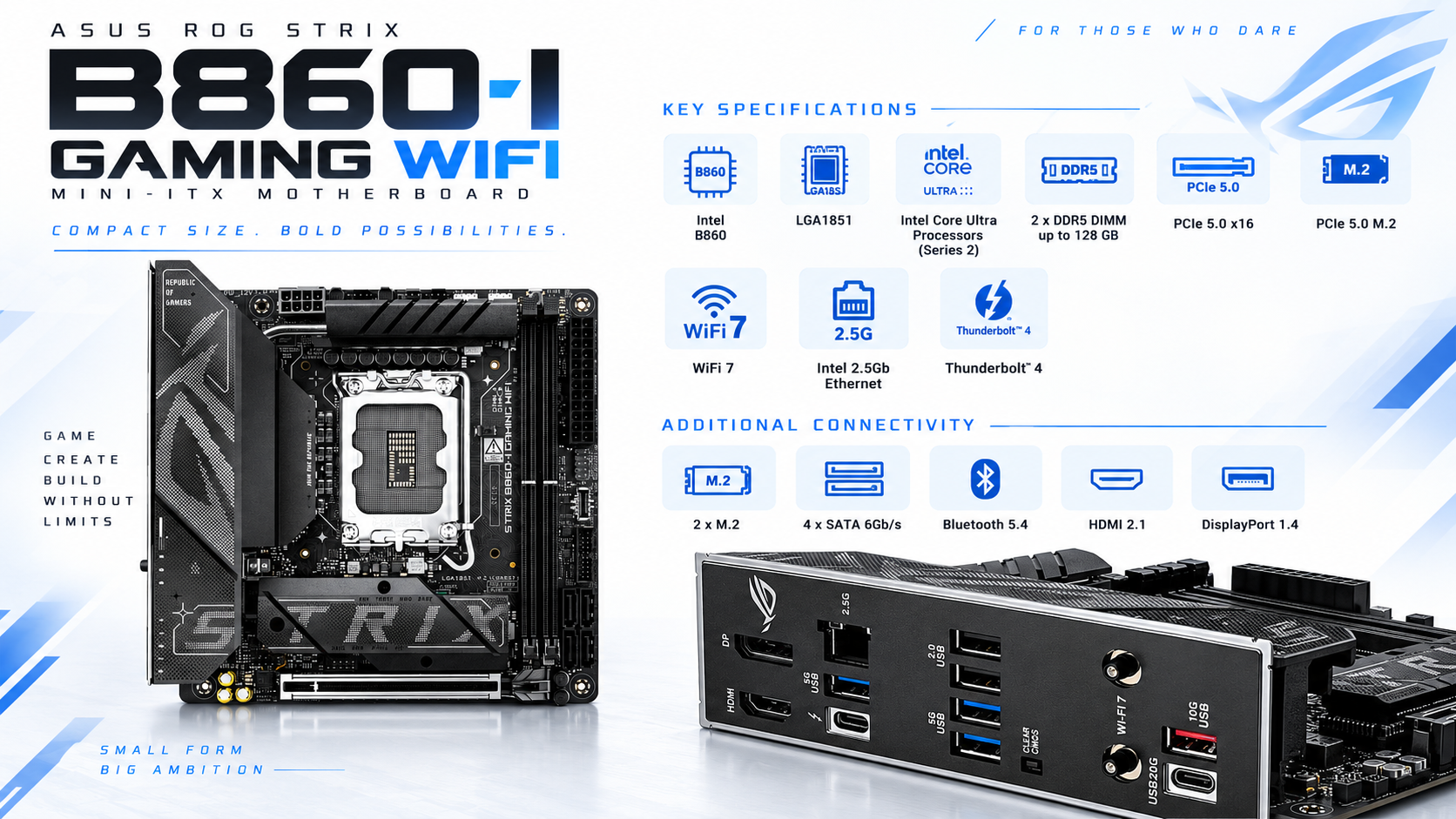

The ASUS ROG Strix B860-I Gaming WiFi is a compact Mini-ITX motherboard based on the Intel B860 chipset and designed for Intel Core Ultra Processors (Series 2). It combines an LGA1851 platform with two DDR5 DIMM slots, PCIe 5.0 graphics support and high-speed PCIe 5.0 M.2 storage in a 17 x 17 cm form factor.

High-speed connectivity includes WiFi 7, Intel 2.5Gb Ethernet, Thunderbolt 4 and rear USB connectivity up to 20 Gbps. The board also incorporates SupremeFX audio, two M.2 slots, four SATA 6Gb/s ports and ASUS installation features designed for compact high-performance PC builds.

Key Features

• Intel B860 Platform: LGA1851 motherboard supporting Intel Core Ultra Processors (Series 2).
• DDR5 Memory: Two DIMM slots support up to 128 GB DDR5 and speeds up to 9066+ MT/s (OC).
• PCIe 5.0: One PCIe 5.0 x16 expansion slot plus a PCIe 5.0 x4 M.2 storage slot.
• High-Speed Networking: 2x2 WiFi 7, Bluetooth 5.4 and Intel 2.5Gb Ethernet.
• Thunderbolt 4: Rear USB Type-C Thunderbolt 4 connectivity with display output support.
• Compact Mini-ITX Design: 17 x 17 cm form factor with two M.2 slots, four SATA ports and integrated cooling features.

Technical Specifications

Compatibility & Important Information

• The motherboard uses the Intel LGA1851 socket and is specified for Intel Core Ultra Processors (Series 2); check the ASUS CPU Support List for the exact processor before purchase.
• Only DDR5 memory is supported. Memory speed and supported configurations depend on the installed CPU and DIMM configuration; ASUS provides a separate CPU/Memory Support List.
• WiFi 7 full functionality requires Windows 11 24H2 or later. ASUS states that Windows 11 21H2, 22H2 and 23H2 support WiFi 6E functionality, while 6 GHz availability varies by regional regulation.
• The board has one PCIe 5.0 x16 expansion slot, making case and graphics-card dimensions particularly important in Mini-ITX builds.
• M.2_1 supports PCIe 5.0 x4 drives in 2260/2280 sizes, while M.2_2 supports PCIe 4.0 x4 drives in 2242/2260/2280 sizes.
• Display resolution and motherboard video output capabilities depend on the installed processor's graphics capabilities.
• 7.1-channel audio output requires a chassis with a compatible front-panel HD Audio module.

Package Contents

• 2 x SATA 6Gb/s cables
• 1 x ROG USB 2.0 splitter cable
• 1 x Panel cable
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x Screw package for M.2 SSD
• 1 x M.2 Bracket
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x Quick start guide
