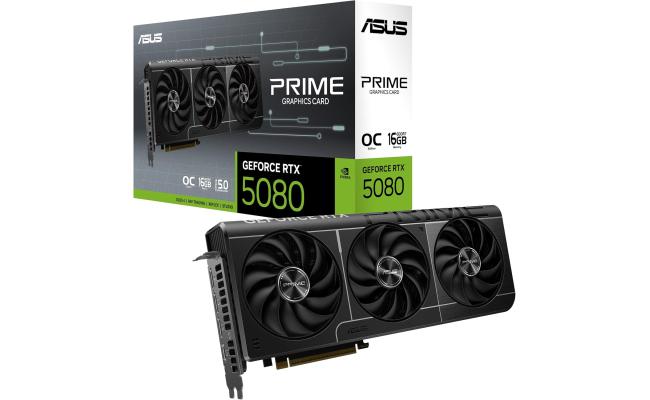

ASUS Prime GeForce RTX 5080 16GB GDDR7 OC Edition Gaming Graphics Card

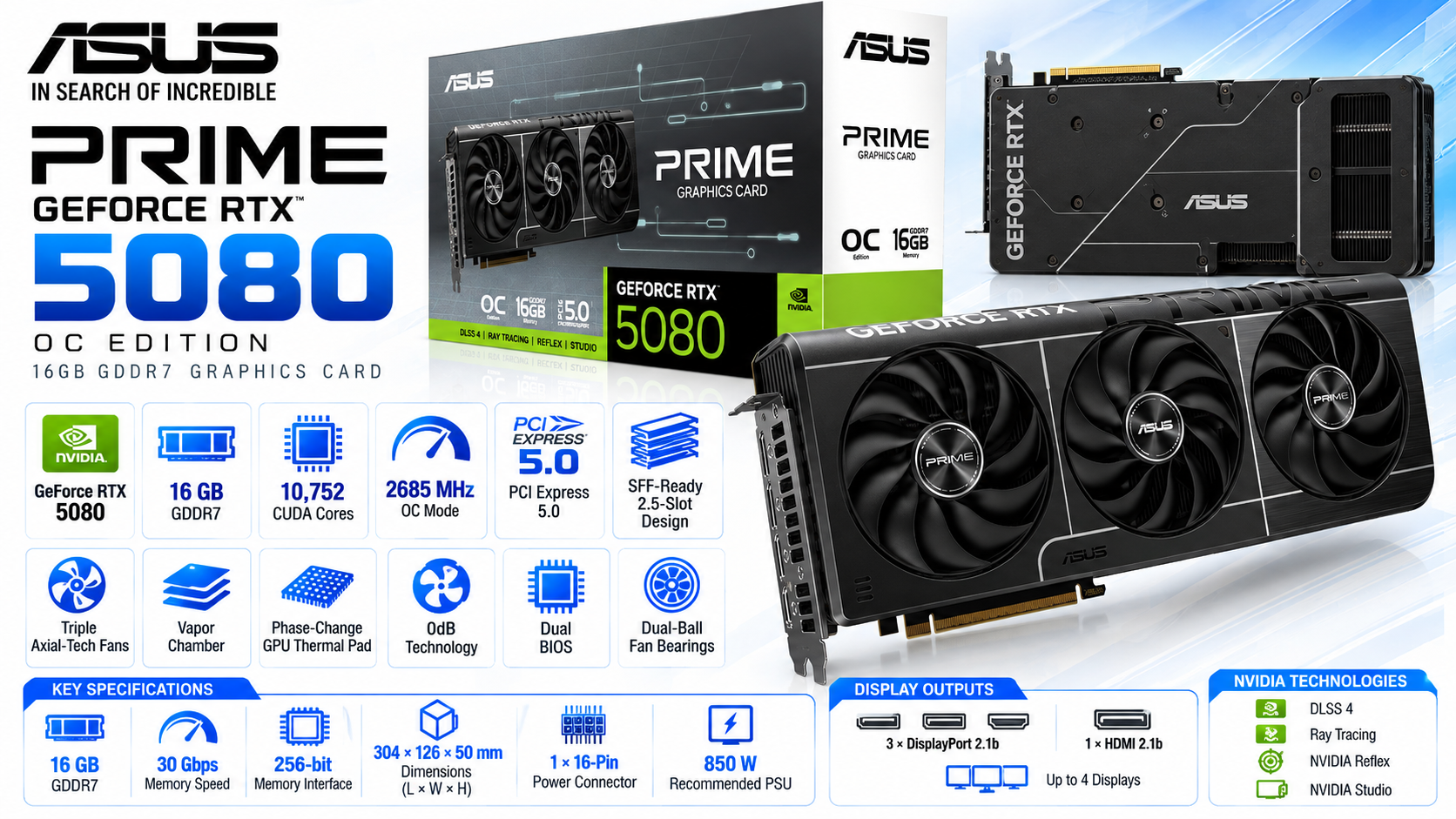

The ASUS Prime GeForce RTX 5080 OC Edition is a factory-overclocked graphics card powered by the NVIDIA GeForce RTX 5080 GPU with 16 GB of GDDR7 memory. Its 2.5-slot, SFF-Ready design combines a triple-fan cooling system with a vapor chamber and phase-change GPU thermal pad.

The card provides three DisplayPort 2.1b outputs and one HDMI 2.1b output, supports up to four simultaneous displays, and uses a single 16-pin power connector. Dual BIOS provides Performance and Quiet operating modes, while 0dB technology stops the three fans under light thermal loads.

Key Features

• GeForce RTX 5080: NVIDIA GeForce RTX 5080 graphics engine with 10,752 CUDA cores.
• 16 GB GDDR7: 30 Gbps graphics memory with a 256-bit memory interface.
• Factory Overclocked: 2655 MHz default Boost Clock and up to 2685 MHz in OC mode.
• SFF-Ready 2.5-Slot Design: Compact 304 mm card design certified as SFF-Ready.
• Advanced Cooling: Three Axial-tech fans, vapor chamber, phase-change GPU thermal pad and 0dB technology.
• Modern Display Connectivity: Three DisplayPort 2.1b and one HDMI 2.1b output with support for up to four simultaneous displays.

Technical Specifications

Compatibility & Important Information

The card uses a PCI Express 5.0 interface, occupies 2.5 slots and measures 304 × 126 × 50 mm. ASUS identifies it as SFF-Ready Compatible and recommends an 850 W power supply for its fully overclocked GPU and CPU system configuration.

Power is supplied through one 16-pin connector. Display connectivity consists of three native DisplayPort 2.1b outputs and one native HDMI 2.1b output, with support for up to four simultaneous displays.

Package Contents

• 1 × Speedsetup Manual
• 1 × ASUS Velcro Hook & Loop
• 1 × Thank You Card
• 1 × Adapter Cable (1-to-3)
