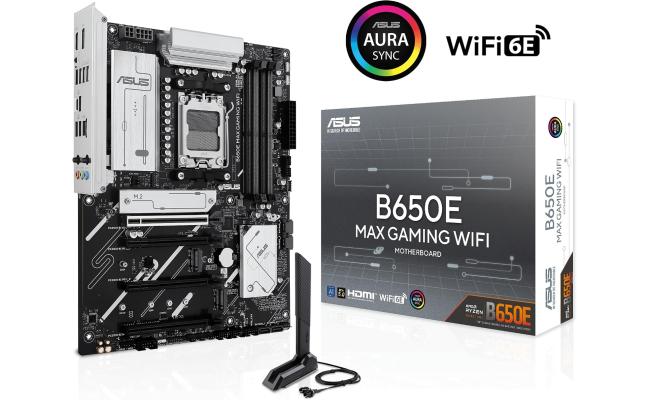

ASUS B650E MAX GAMING WIFI ATX AM5 Motherboard with Wi-Fi 6E & 2.5Gb Ethernet

The ASUS B650E MAX GAMING WIFI is an ATX motherboard based on the AMD B650 chipset and Socket AM5 platform. It supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors, DDR5 memory up to 256 GB, and combines high-speed PCIe, storage and networking options for modern desktop builds.

Connectivity includes Wi-Fi 6E, Bluetooth 5.3, Realtek 2.5Gb Ethernet, three M.2 slots, four SATA 6 Gb/s ports and extensive rear USB connectivity including USB 10 Gbps Type-C. With compatible Ryzen 9000 or 7000 Series processors, the primary graphics slot and M.2_1 storage slot support PCIe 5.0.

Key Features

• AMD AM5 Platform: Supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors with CPU support up to 170 W.
• DDR5 Memory: Four DIMM slots support up to 256 GB DDR5 with speeds up to 8000+ MT/s overclocked and AMD EXPO support.
• PCIe 5.0 Ready: PCIe 5.0 x16 graphics and PCIe 5.0 x4 M.2 support with compatible Ryzen 9000 and 7000 Series processors.
• High-Speed Storage: Three M.2 slots plus four SATA 6 Gb/s ports with AMD RAIDXpert2 support.
• Fast Networking: Integrated 2 × 2 Wi-Fi 6E, Bluetooth 5.3 and Realtek 2.5Gb Ethernet.
• Modern USB Connectivity: Eight rear USB ports including USB 10 Gbps Type-C and three USB 10 Gbps Type-A ports.

Technical Specifications

Compatibility & Important Information

• The motherboard uses AMD Socket AM5 and officially supports Ryzen 9000, 8000 and 7000 Series desktop processors; always check the ASUS CPU support list for the selected processor and required BIOS version.
• PCIe capabilities vary by processor. Ryzen 9000 and 7000 Series processors support PCIe 5.0 x16 on the primary graphics slot and PCIe 5.0 x4 on M.2_1, while Ryzen 8000 Series processors use different PCIe configurations.
• Supported DDR5 speeds and memory capacity depend on the installed processor, memory modules and DIMM configuration.
• The two PCIe 3.0 x16 physical slots operating at x1 share bandwidth with SATA6G_1/2; the corresponding SATA ports are disabled when these PCIe slots are used.
• 6 GHz Wi-Fi 6E availability depends on local regulations and requires Windows 11 or later.
• DisplayPort and HDMI video output capabilities depend on the graphics capabilities of the installed AMD processor.
• The onboard Thunderbolt / USB4 header requires a compatible ASUS add-on card for USB4 connectivity.

Package Contents

• 1 × ASUS B650E MAX GAMING WIFI Motherboard
• 2 × SATA 6 Gb/s Cables
• 1 × ASUS WiFi Q-Antenna
• 1 × M.2 Rubber Package
• 3 × Screw Packages for M.2 SSD
• 1 × Quick Start Guide
