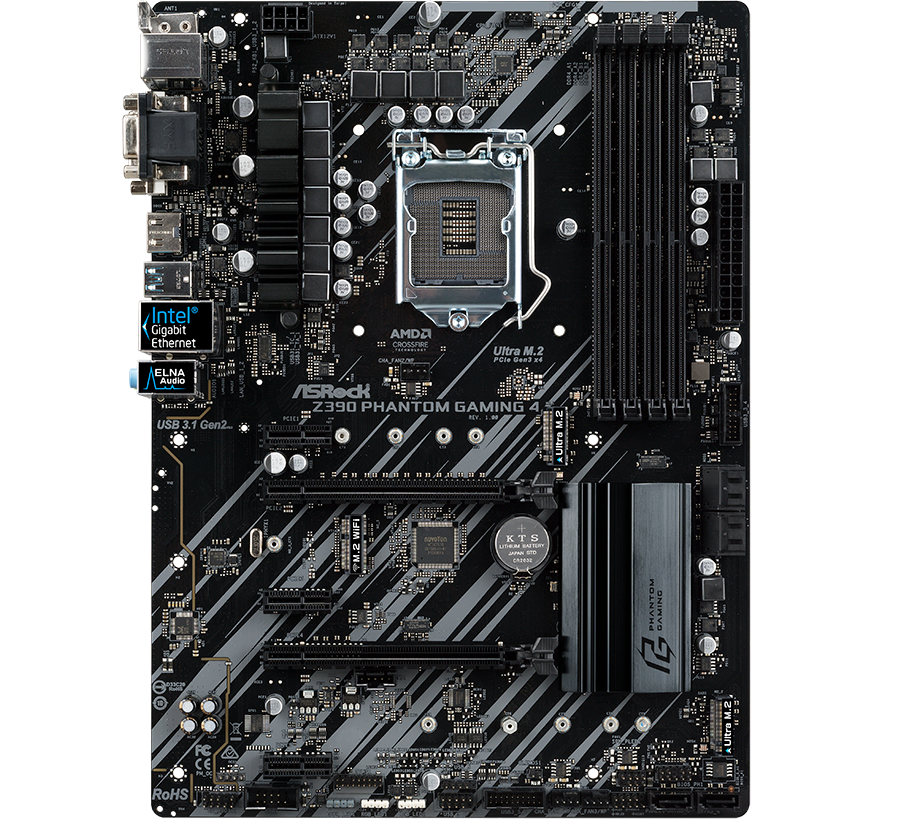

AN UNBEATABLE PERFORMANCE WITH ASROCKASRock Z390 motherboards are the ultimate motherboard for gamers who require the most superior performance. The Z390 PHANTOM Gaming 4 motherboard is equipped with Dual M.2, Intel® Technology and a durable premium alloy design that enhances your build. Discover a new standard of high performance, stability and resilient hardware and software with ASRock. Personalise your setup with ASRock Polychrome SYNC, create lighting effects with the built-in LED illumination. Featuring on-board RGB headers for compatible LED devices allowing for full synchronization.

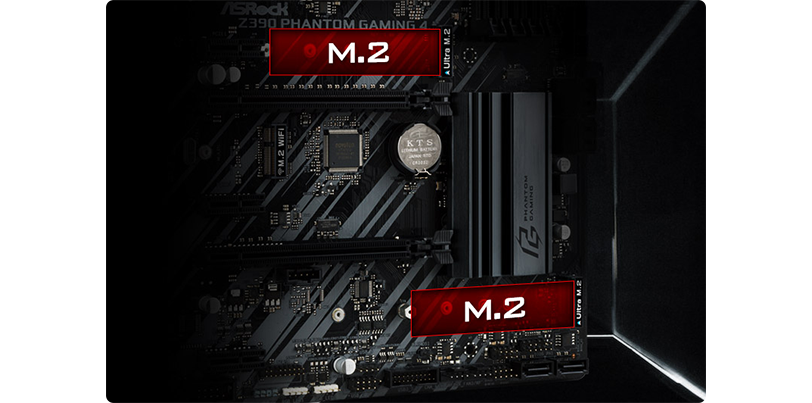

BOOSTS DATA TRANSFER SPEEDS UP TO 32GB/SEquipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD. Supports Type 22110 M.2, ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance.

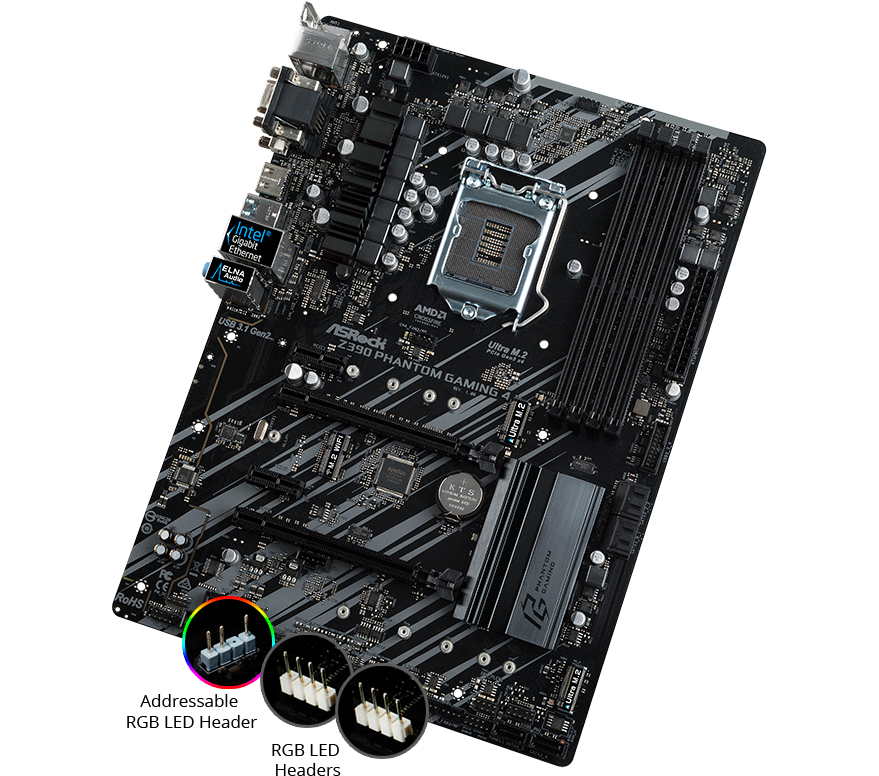

ON-BOARD RGB LED HEADERSCustomise your PC with Polychrome RGB, in addition to the built-in illumination the on-board RGB headers/addressable RGB header allows the motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and more. Users can also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own exclusive lighting effects.
Please note *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters. *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. *The built-in LED on this motherboard can only present a single RED colour. The colourful RGB illumination is only supported with external devices via RGB headers.
PREVENT SIGNAL INTERFERENCE WITH GRAPHICS CARDSThe advanced PCIe Steel Slots are packed with solid protection that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCIe slots safely.
